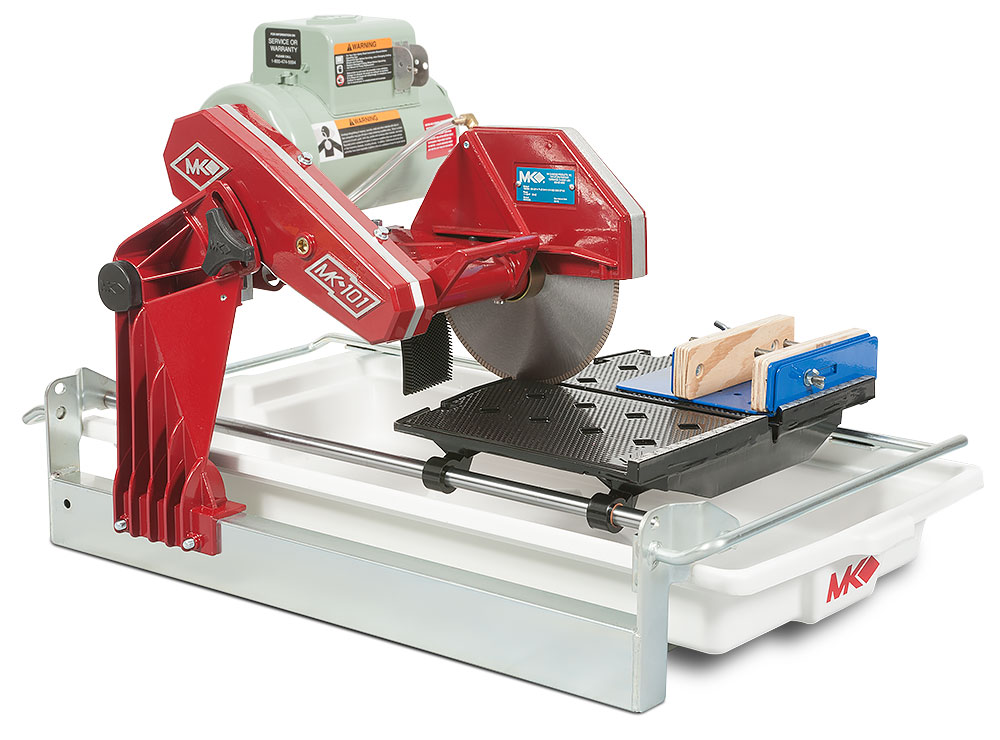

MK-101 Trim Saw

The MK-101 features a powerful, high torque, fan-cooled motor and one-piece unitized steel frame. The linear guide bar system provides precise cutting on the entire length of the cut. The blade guard has been engineered to provide optimal water flow and is wide enough to accommodate a profile wheel.

MK-101 Features:

  • 1-1/2 hp fan-cooled motor
  • Permanently lubricated, dual-sealed, heavy duty blade shaft bearings
  • Multi-position motor post and cutting head
  • Built-in water distribution system supplies water to both sides of blade
  • Variable height cutting head for plunge cutting
  • Blade guard accommodates 8" profile wheels
  • Micro V-belt drive
  • Linear bearing and chrome plated guide-bar assembly ensure precise cutting
  • Blade shaft lock for easy blade removal
  • One-piece reinforced zinc-plated steel frame
  • Includes rock vise and BD-305 diamond blade
  • One-year limited warranty
  • Made in the USA
Part # 164564
Motor 1-1/2 hp, 120V
Blade RPM 3,450
Blade Capacity 10" (254mm)
Blade Arbor 5/8"
Depth of Cut 3" (76mm)
Length of Cut 20"
Weight 96 lbs. (44 kg.)
LxWxH 36" x 21-1/2" x 22-1/2"
LxWxH (mm) 915 x 546 x 572
Shipping Method UPS / Fed-Ex

Warning IconWarning: Use of this equipment can expose you to chemicals including nickel and crystalline silica which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. Repeated and/or substantial inhalation can cause serious or fatal respiratory diseases including silicosis. Employ dust controls and protection per OSHA/NIOSH/MSHA
Click on thumbnails for enlarged images.
Two-position motor post and two-position cutting head Micro V-belt drive Lockable blade shaft for easy blade removal

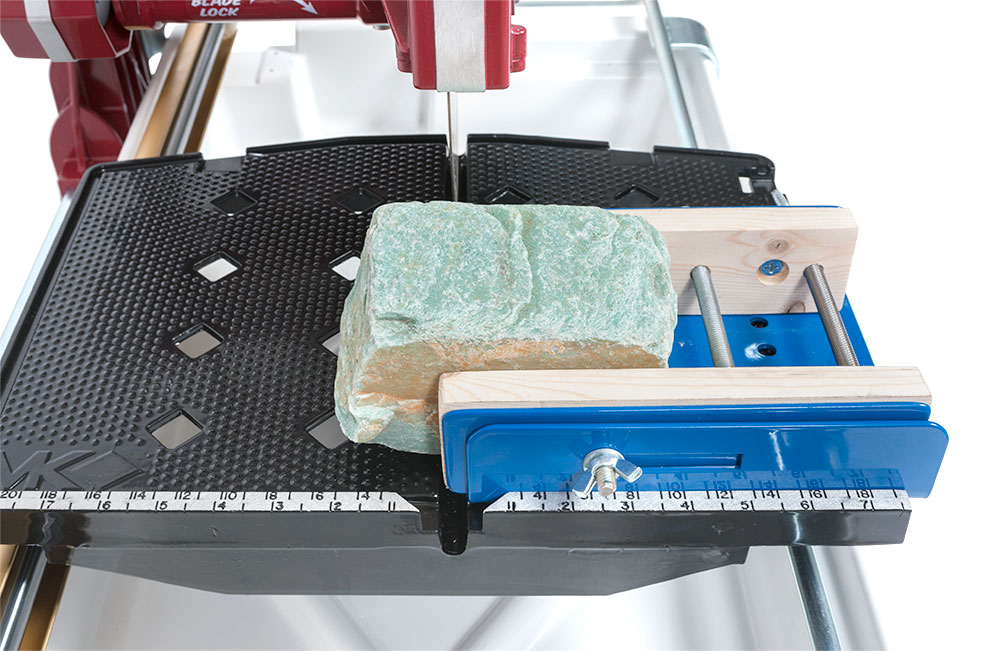

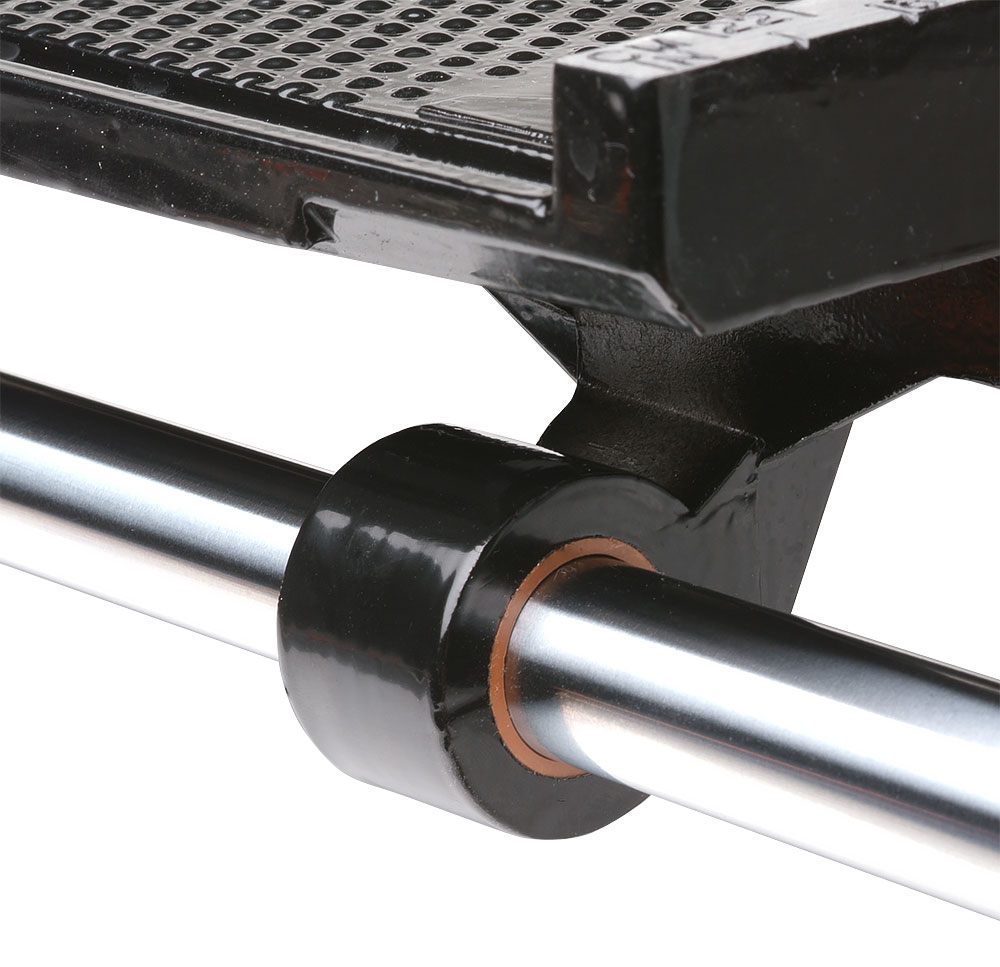

Variable height cutting head Chrome-plated guide-bar and linear-bearing Rock vise
Included Accessories
BD-305 Blade 10" BD-305
Diamond Blade
Rock Vise Rock Vise
Rip Guide Rip Guide
Electric Water Pump Electric Water Pump
Dressing Stone Dressing Stone
Optional Accessories
Folding Saw Stand Folding Saw Stand
Ground Fault Circuit Interrupter GFCI
