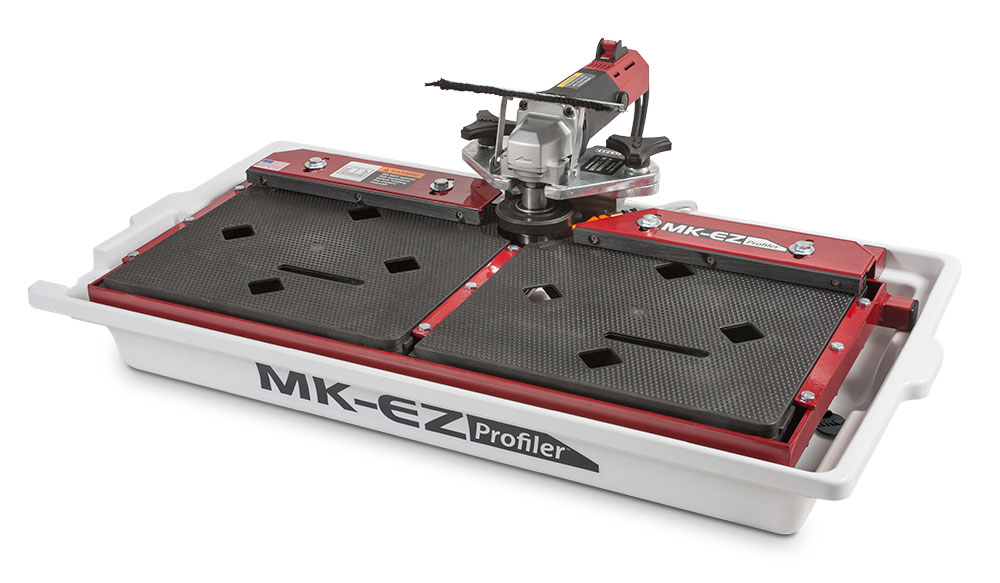

MK-EZ Profile Milling Machine

The MK-EZ Profiler makes profiling tile, granite, marble and limestone easy. It is highly portable and is designed to provide fabrication quality performance on any job-site. There is a complete range of standard profile shapes available as accessories. Convenient access to the arbor shaft makes for easy profile tool changes. The adjustable head allows profiling materials up to 1-1/4” thick. The profiler is housed in a thermoplastic pan for water containment and easy cleanup. Water pump and a 3/8" radius, half bullnose diamond profile bit are included.

  • Designed for easy and precise profile milling of tile and stone
  • Adjustable head allows profiling materials up to 1-1/4" thick
  • Easy to clean thermoplastic water pan

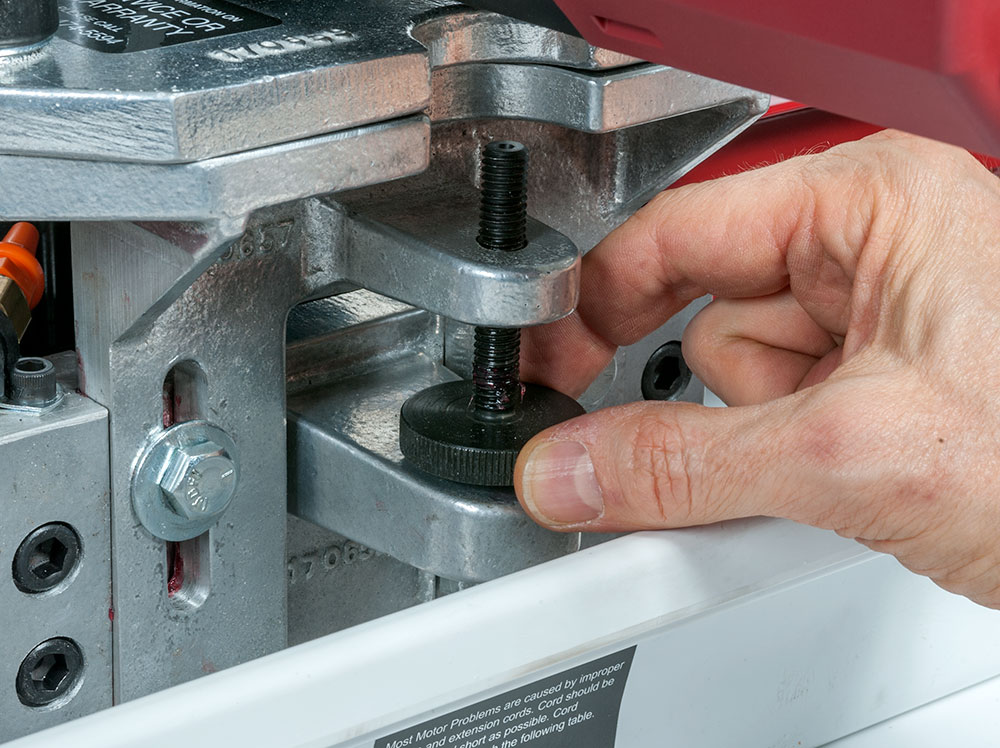

  • Cast aluminum control head with easy to adjust depth and location controls

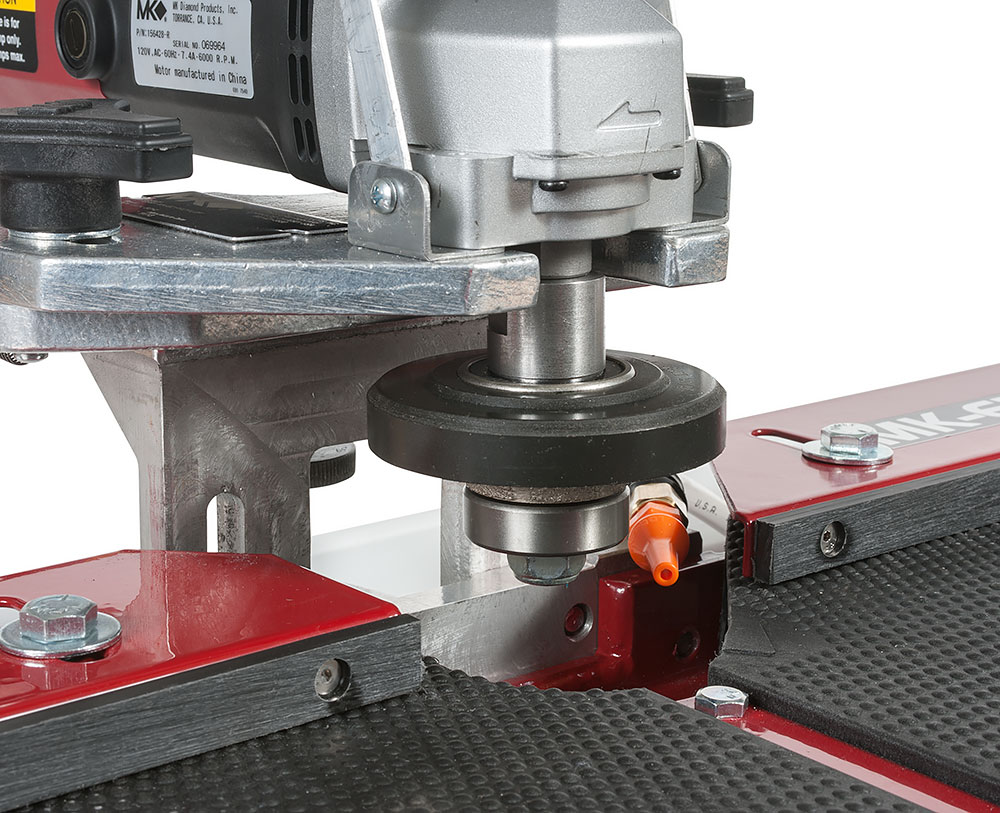

  • Convenient access to arbor shaft for shaping tool changes
  • Powder-coated, steel frame
  • MK-Safeswitch™ prevents profiler from being operated when locking key is removed
  • Heavy-duty motor design for reliability
  • Complete range of standard profile shapes available
  • Water pump and MK400BDB 3/8" radius profiling diamond bit included
  • One-year limited warranty
Part # 170565
Motor 1-1/4 hp, 120V
Amps 7.4
Motor RPM 6,000
Shaft 5/8"-18
Max. Profiling Depth 1-1/4"
Weight 23 lbs. (10.4 kg)
LxWxH (in) 36" x 24" x 11
LxWxH (mm) 914 x 610 x 279

Click on thumbnails for enlarged image.

Accessories Included with the MK-EX
MK400BDB 3/8" radius profiling diamond bit

Water Pump

Optional Accessories
MK-400BDB Brazed Diamond Profile Bits

MK-480SDR Segmented Diamond Profile Bits
