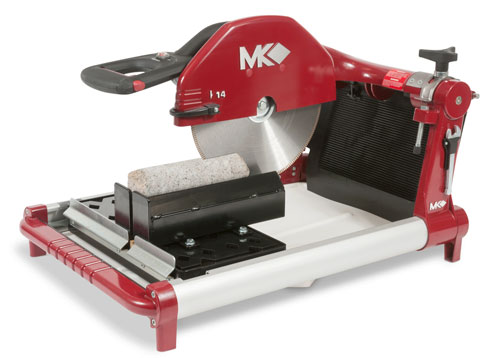

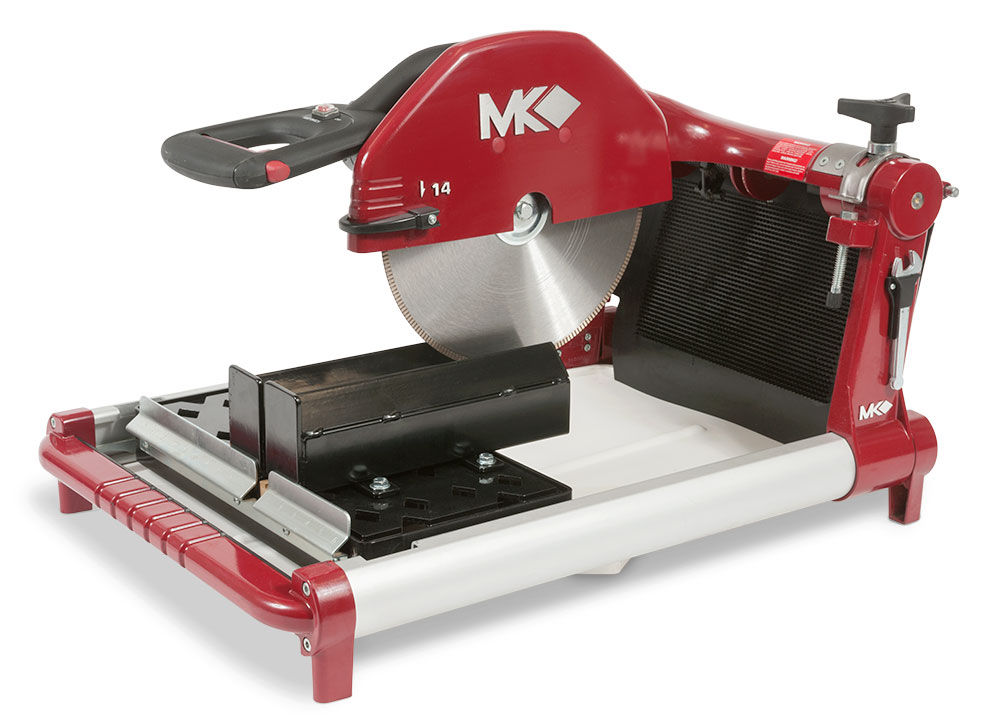

BX-4 Electric Core Saw
The BX-4 uses a patent pending misting system to control dust generated during cutting. The ergonomically designed handle allows for easy operation and control for either left or right handed cutting. Unique features include a removable plastic tray and a locking table. One-year limited warranty.
- Portable and lightweight

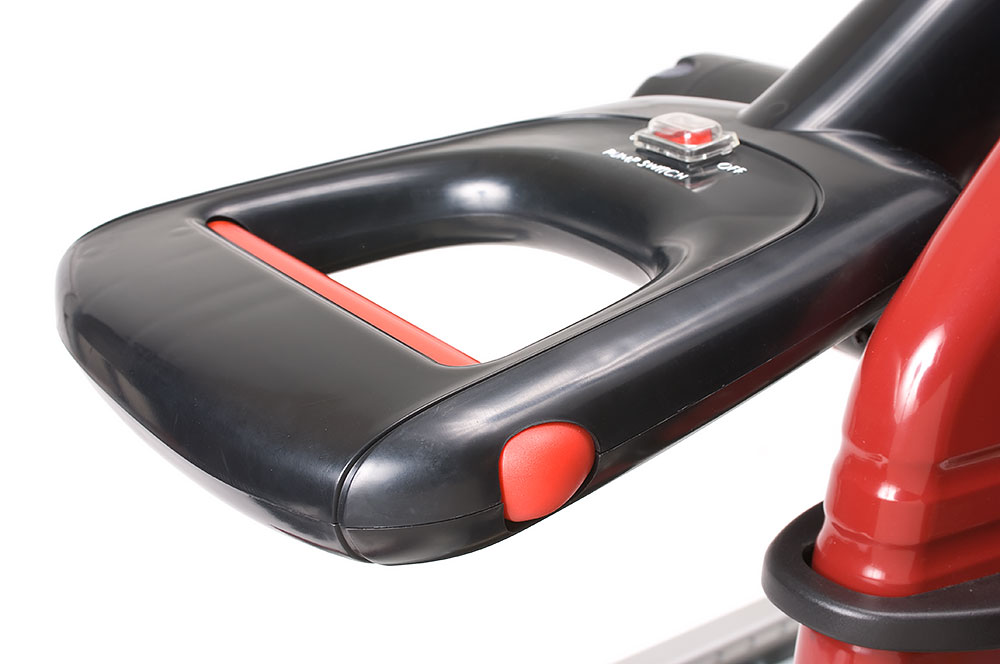

- Easy to grip nylon handle with built-in lockable trigger switch
- Water misting dust control system
- Plastic dust collection pan
- Replaceable dust filter
- Built-in table lock
- Spring-loaded, adjustable height cutting head
- Heavy-duty cast aluminum rolling conveyor cart

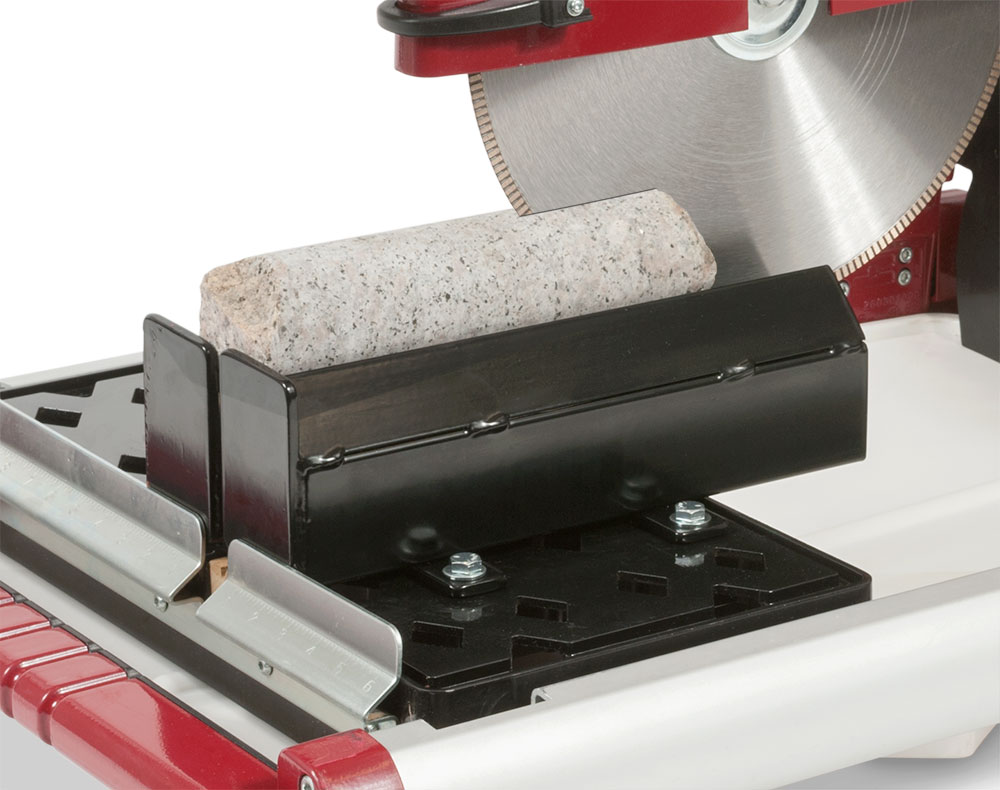

- 14" BD-301 wet cutting diamond blade, core sample holder and submersible water pump included
- One-year warranty
| BX-4 Part # | 169756 |
| Voltage | 120V |
| Horse Power | 1-3/4 |
| Amps | 15 |
| Blade RPM | 3,500 |
| Blade Capacity | 14" (356mm) |
| Arbor Size | 1" (25mm) |
| Max Core Sample Length | 12" |
| Max. Core Sample Diameter | 5" |
| Min. Core Sample Diameter | 1" |
| L x W x H | 35" x 24" x 21" |
| L x W x H (mm) | 889 x 610 x 533 |
| Weight | 70 lbs. (32 kg.) |
| Shipping Method | UPS / Fed-Ex |
Included Accessories
Optional Accessories
