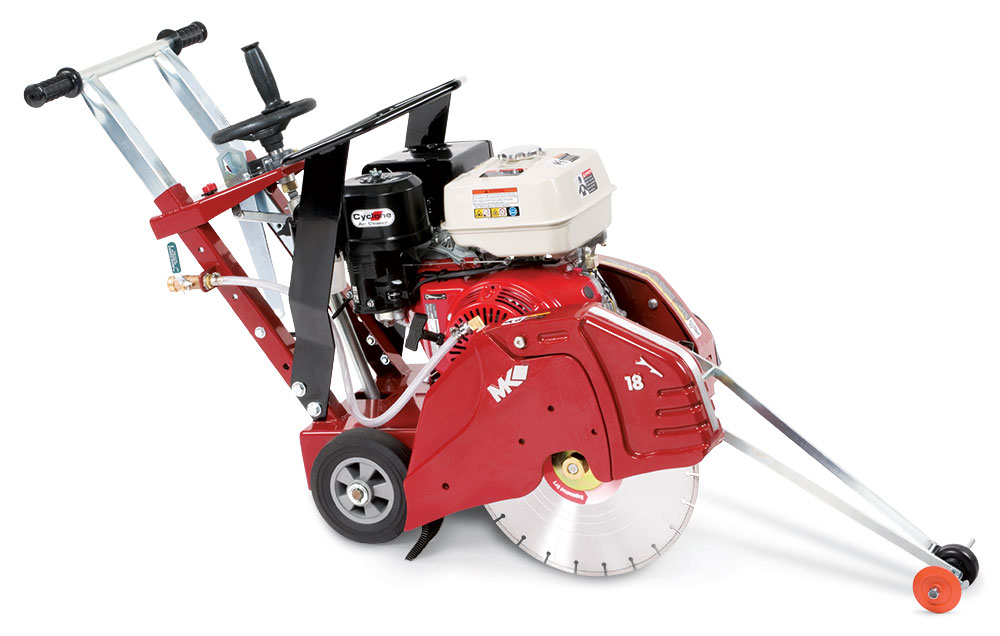

MK-1600 Series Gas Walk-Behind Concrete Saws

All MK-1600 Series walk-behind concrete saws feature a one-piece box construction chassis made from 3/16" hot-rolled steel that will not flex during operation. Powder-coated chassis resists peeling and corrosion. The blade guard mounts on both the left and right side of saw and cuts within 2" of wall or curb.

MK-1600 Premium saws have all the same features as the MK-1600 Standard Series, but with the additions of a built-in depth gauge for precise control, a combination tach/hour meter for monitoring engine RPMs and hours for scheduled maintenance, and a heavy-duty lifting bail for easy transport of saw.


  • One-piece box construction chassis made from 3/16" hot-rolled steel will not flex during operation
  • Powder-coated chassis resists peeling & corrosion
  • Cast-aluminum hinged blade guard
  • Stainless steel water distribution system supplies water to both sides of blade
  • Blade guard mounts on both left- or right-hand side of saw and cuts within 2" of wall or curb
  • 1" blade shaft supported by two heavy-duty, self-aligning pillow block bearings
  • Depth control assembly engineered for smooth, controlled blade insertion
  • Durable 8" x 2-1/4" non-slip rubber wheels with maintenance-free hubs & roller bearings
  • Positive-locking depth control mechanism
  • Premium Series saws include built-in depth gauge, tach/hour meter, and lifting bail
  • One-year limited warranty
Model Engine Part #
1613H Standard Honda GX390 160832
1613H Premium Honda GX390 160772
1609H Standard Honda GX270 157867
Blade not included with saw.
General Specifications
Blade RPM 2,700
Arbor Size 1" (25mm)
Blade Capacity 18" (457mm)
Depth of Cut 6-5/8" (168mm)
LxWxH (inches) 42" x 25" x 39"
Weight 233 lbs - 275 lbs.

* Engine power ratings are calculated by the individual engine manufacturer and the rating method may vary among engine manufacturers. MK Diamond Products makes no claim, representation or warranty as to the power rating of the engine on this equipment and disclaims any responsibility or liability of any kind whatsoever with respect to the accuracy or the engine power rating. Users are advised to consult the engine manufacturer’s owners manual and website for specific information regarding the engine power rating.

Warning: This equipment contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. These chemicals are contained in various components. fluids and paint including but not limited to fuel, oil, electric motors and batteries. In addition, gasoline/diesel powered equipment emits engine exhaust and fumes, and when serviced, cleaned or maintained generate used oil, waste fluids, fumes, grease, grime and particulates from the component wear and silica dust which contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Click on thumbnails for enlarged images.
Accessories Included with MK-1600 Premium Saws
Lifting Bail

Tach/Hour Meter
Optional Accessories
Lifting Bail (not included with MK-1600 standard saws)

Tach/Hour Meter (not included with MK-1600 standard saws)

Water Tank (lifting bail required to mount water tank)

Recommended Blades
Cured Concrete MK-505

Green Concrete MK-605W

Asphalt & Green Concrete MK-699D

Asphalt MK-705W
