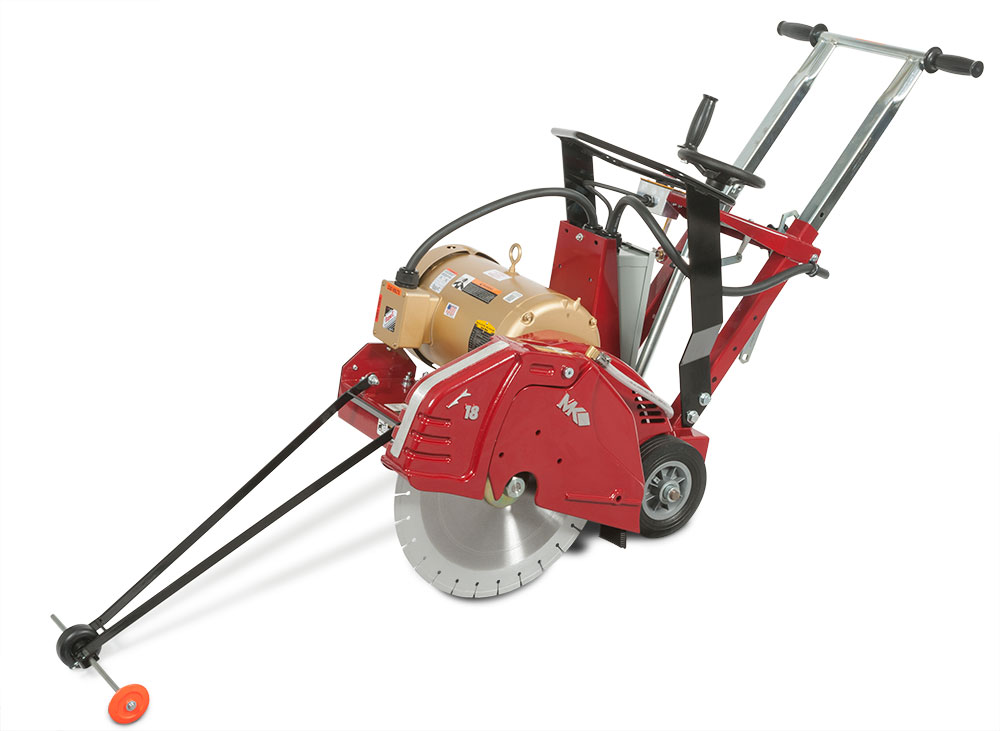

MK-1600 Series Electric Walk-Behind Concrete Saws

All MK-1600 Series walk-behind concrete saws feature a one-piece box construction chassis made from 3/16" hot-rolled steel that will not flex during operation. Powder-coated chassis resists peeling and corrosion. The left side mounted blade guard cuts within 2" of wall or curb. One-year limited warranty.

  • One-piece box construction chassis made from 3/16" hot-rolled steel will not flex during operation
  • Powder-coated chassis resists peeling & corrosion
  • Cast-aluminum hinged blade guard
  • Stainless steel water distribution system supplies water to both sides of blade
  • Cuts within 2" of wall or curb
  • 1" blade shaft supported by two heavy-duty, self-aligning pillow block bearings
  • Depth control assembly engineered for smooth, controlled blade insertion
  • Durable 8" x 2-1/4" non-slip rubber wheels with maintenance-free hubs & roller bearings
  • Positive-locking depth control mechanism
  • Built-in depth gauge, tach/hour meter, power connector and lifting bail
  • One-year limited warranty
Model Motor Weight Part #
1605B Premium 5 hp 240V Single Phase 275 lbs 168099
1610B Premium 10 hp 240V Single Phase 315 lbs 168611
1610B Premium 10 hp 240V 3 Phase 315 lbs 167426
1610B Premium 10 hp 480V 3 Phase 315 lbs 167427
Blade not included with saw.
General Specifications
Blade RPM 2,400
Arbor Size 1" (25mm)
Blade Capacity 18" (457mm)
Depth of Cut 6-5/8" (168mm)
LxWxH (inches) 42" x 25" x 39"

Warning IconWarning: This equipment contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. These chemicals are contained in various components. fluids and paint including but not limited to fuel, oil, electric motors and batteries. In addition, gasoline/diesel powered equipment emits engine exhaust and fumes, and when serviced, cleaned or maintained generate used oil, waste fluids, fumes, grease, grime and particulates from the component wear and silica dust which contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to
Click on thumbnails for enlarged images.

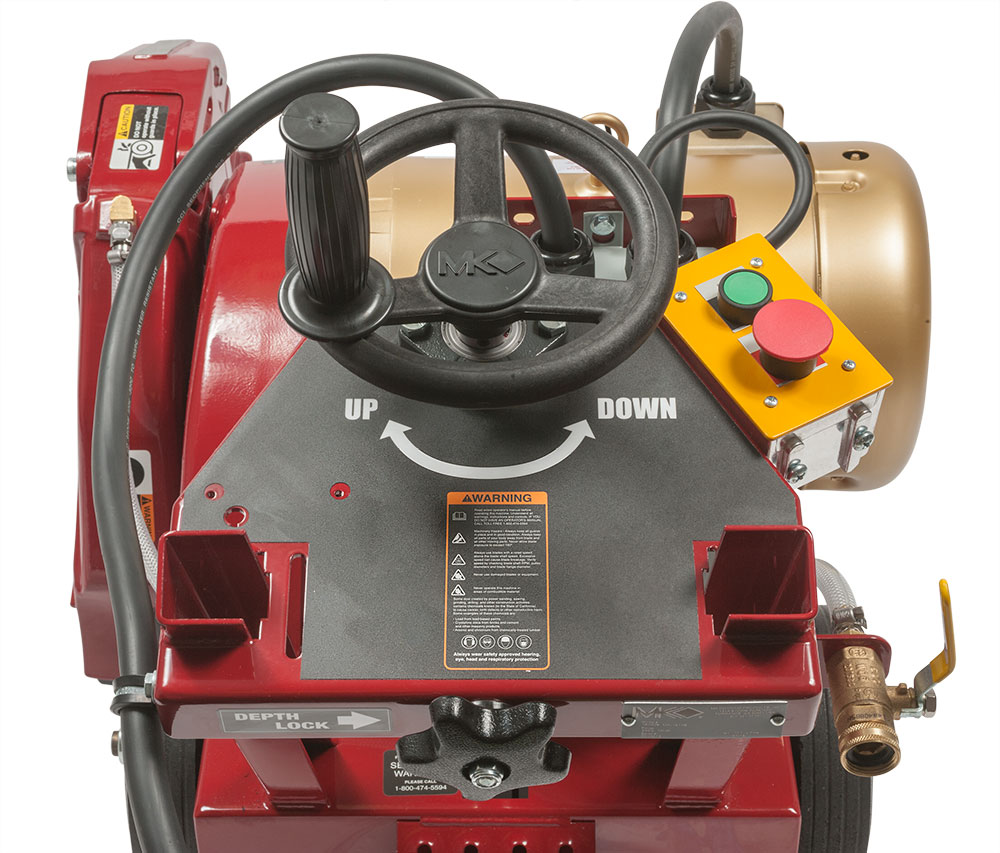

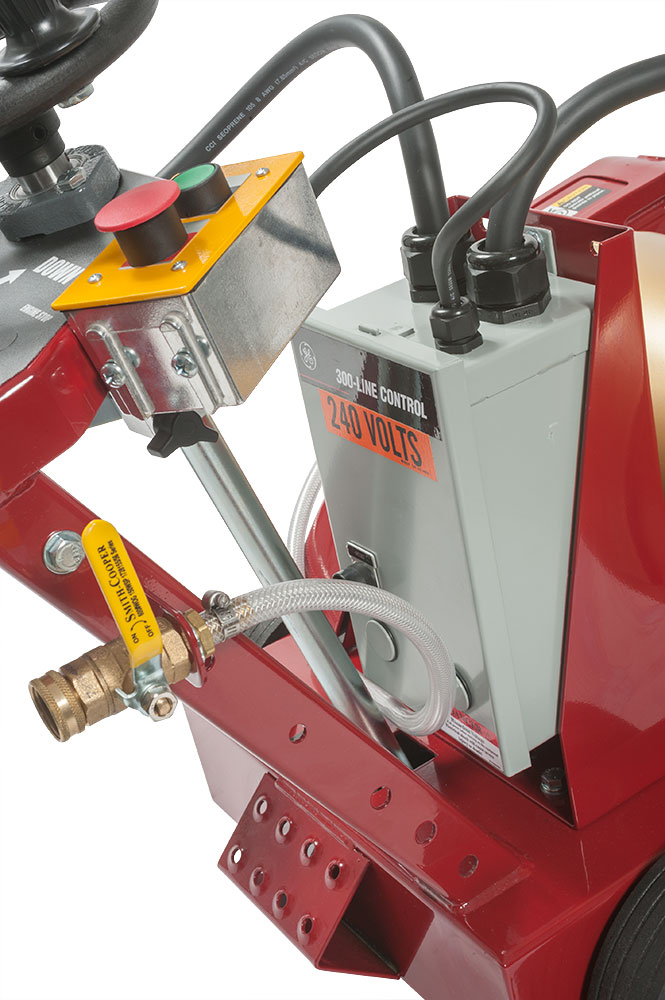

MK-1610B 3-phase control panel MK-1610B 240V 3-Phase motor "MK-1610B 240V 3-Phase Switch box   MK-1610B 240V single phase motor
Accessories Included with MK-1600 Electric Saws
Lifting Bail Lifting Bail

Tach/Hour Meter Tach/Hour Meter
Optional Accessories
Water Tank Kit Water Tank (lifting bail required to mount water tank)

Recommended Blades
MK-505 Blade Cured Concrete MK-505

MK-605W Blade Green Concrete MK-605W

MK-699D Blade Asphalt & Green Concrete MK-699D

MK-705W Blade Asphalt MK-705W
