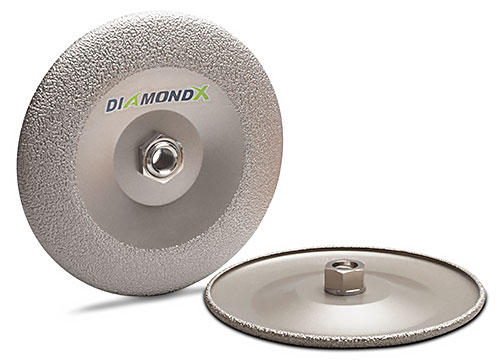

DiamondX Depressed Center Grinding Discs
DiamondX Depressed Center Grinding Discs

24  and 50 grit grinding discs for weld removal, pipe beveling and stock removal of all ferrous and non-ferrous metals including mild steel, stainless steel, alloy steels, ductile materials, hard-face metal alloys and ceramic. 7/8" arbors available on request.

Diameter Grit Arbor Max RPM Part #
4" (102mm) 24 5/8" 15,300 168837-DX
4-1/2" (114mm) 24 5/8"-11 13,600 168838-DX
5" (127mm) 24 5/8"-11 12,225 168839-DX
6" (152mm) 24 5/8"-11 10,200 168840-DX
7" 178mm) 24 5/8"-11 8,600 168841-DX
9" (229mm) 24 5/8"-11 6,600 168842-DX
Diameter Grit Arbor Max RPM Part #
4" (102mm) 50 5/8" 15,300 170616-DX
4-1/2" (114mm) 50 5/8"-11 13,600 170617-DX
5" (127mm) 50 5/8"-11 12,225 170618-DX
6" (152mm) 50 5/8"-11 10,200 170619-DX
7" 178mm) 50 5/8"-11 8,600 170620-DX
9" (229mm) 50 5/8"-11 6,600 170621-DX
