MK-2002-16-CC Electric Core Saw
Add to CartManualParts List Sell Sheet
MK-2000 Series Wet Cutting Masonry Saws

The powerful MK-2002-16-CC Core Saw is ideal for laboratory testing of core samples. It can cut 6" cores with a single pass. The cast aluminum blade guard has stainless steel water tubes that will not bend or rust. The blade shaft assembly is built with sealed, permanently lubricated, heavy-duty bearings for long maintenance free life. The recoil spring return cutting head makes repetitive cutting quick and easy.

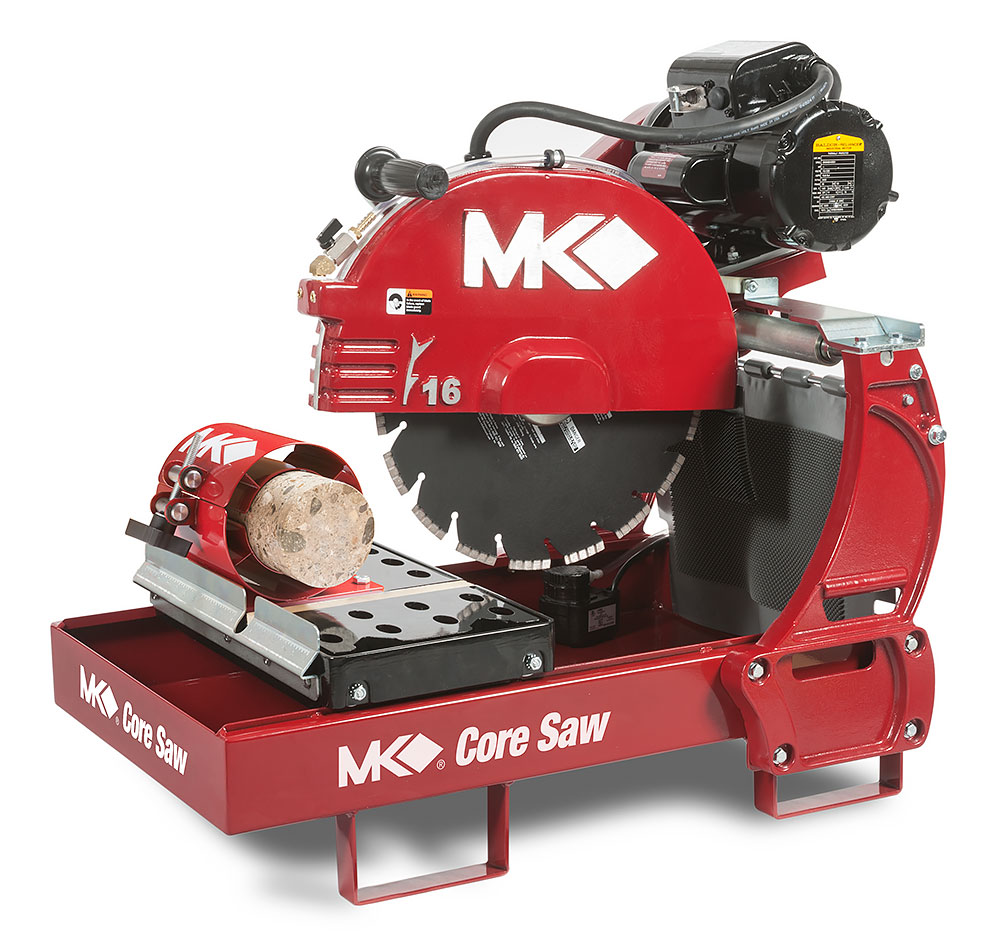

MK-2002-16-CC Electric Core Saw

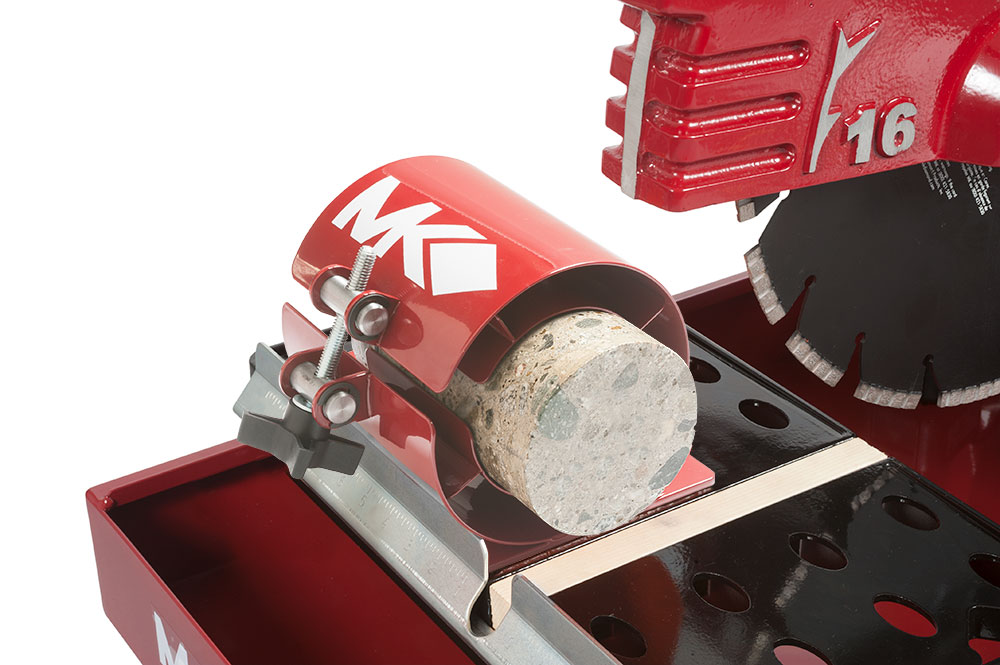

Core Clamp with 4in Core
Insert

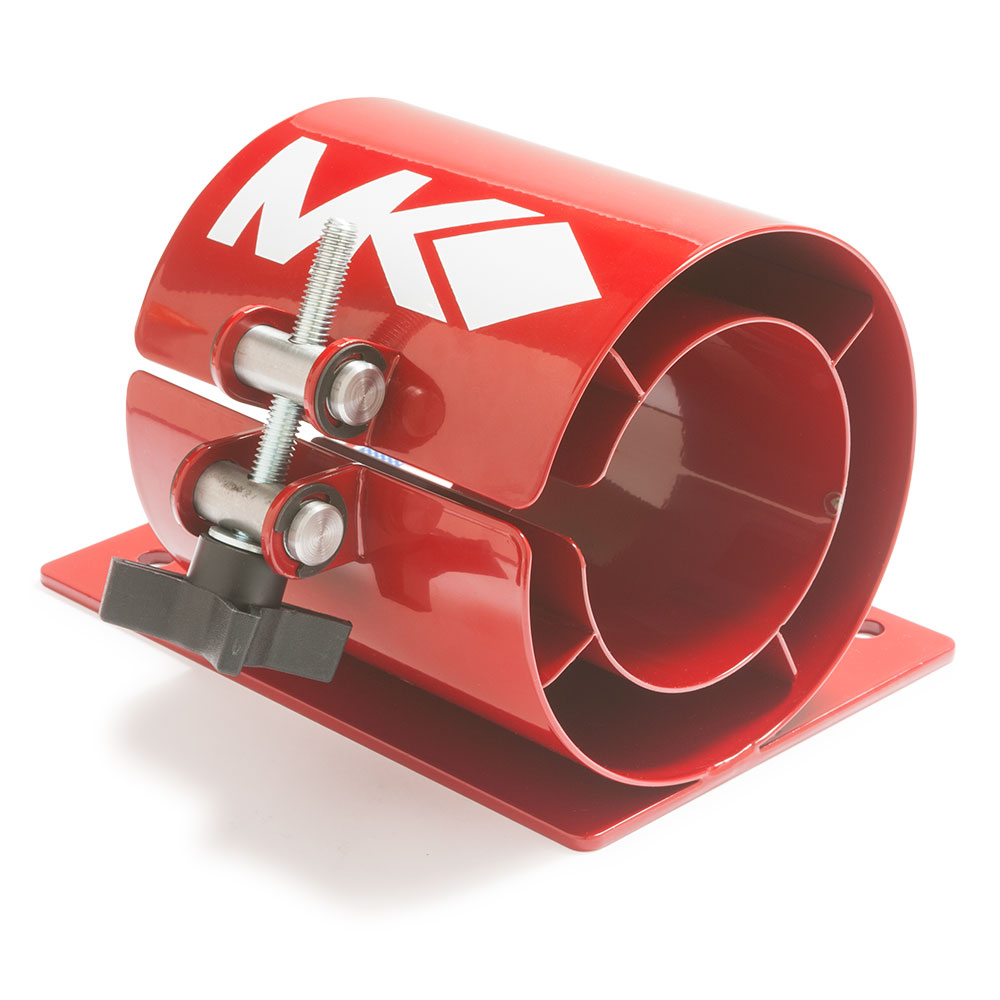

Core Clamp with 4in Core
Insert
Stay level blade guard
Fork lift bracket
  • 230V single phase electric motor
  • Convenient ON/OFF switch for operator safety
  • Cast-aluminum structural components & jig-welded steel frame assembly
  • Stay-level blade guard provides maximum depth of cut at any head height
  • Drop down blade shaft is built with sealed, permanently lubricated, heavy-duty bearings
  • Open-back design allows for material up to 16" long to be cut
  • Recoil spring return cutting head for easy plunge cutting
  • Cast aluminum blade guard with stainless steel water tubes that will not bend or rust
  • Adjustable water supply for maximum blade protection
  • Fork lift brackets for ease of transportation
  • Adjustable core clamp opening allows for secure placement, without damaging the core
  • Cuts through a 6" core with a single pass
  • Includes high capacity electric water pump, 16" wet/dry core sampling diamond blade for cutting concrete and asphalt, and a 6" core clamp with 4" core insert assembly
  • One-year limited warranty
Part # 150598-16-CC
Voltage 230
Horse Power 2 hp
Amps 16.8
Blade Capacity 16"
Depth of Cut 6"
Arbor Size 1"
Motor RPM 3,450
Blade RPM 2,800
Length of Cut 16"
Weight 180 lbs
L x W x H 35" x 23" x 32"
Shipping Method Truck
Included Accessories
16"  Core Sampling Diamond Blade
16" Wet/Dry
Diamond Blade
Optional Accessories
