HP30 Slab Saw
Manual Parts ListSell Sheet

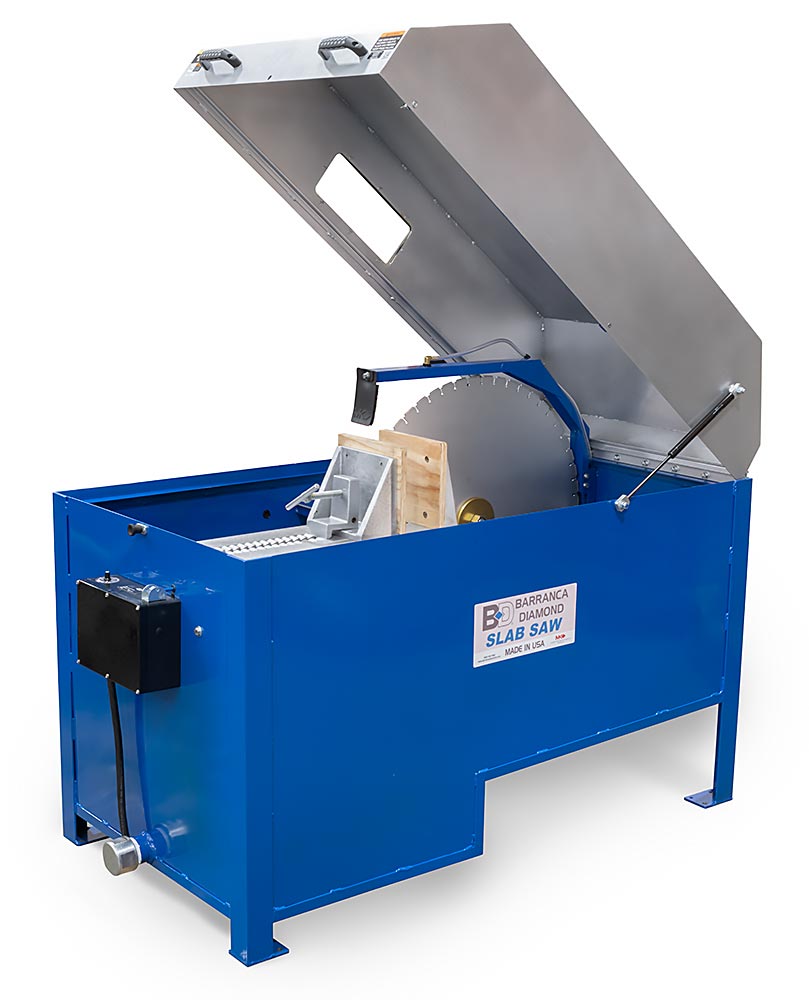

HP30 Slab Saw

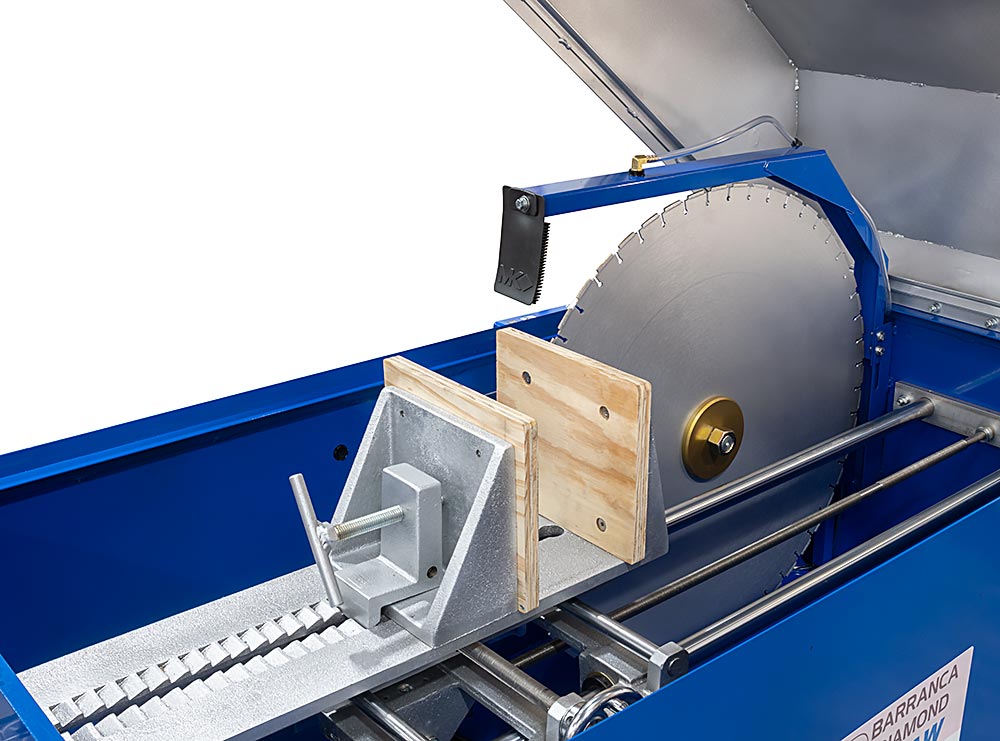

HP30 Vise and Carriage

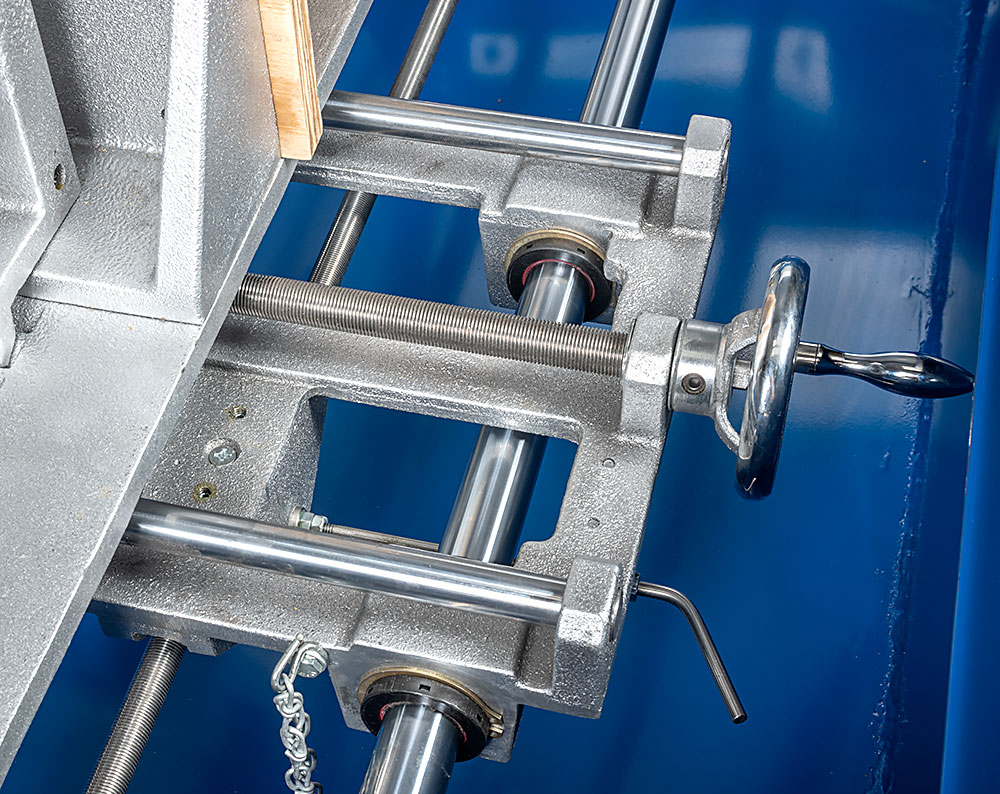

Cross-feed adjustment

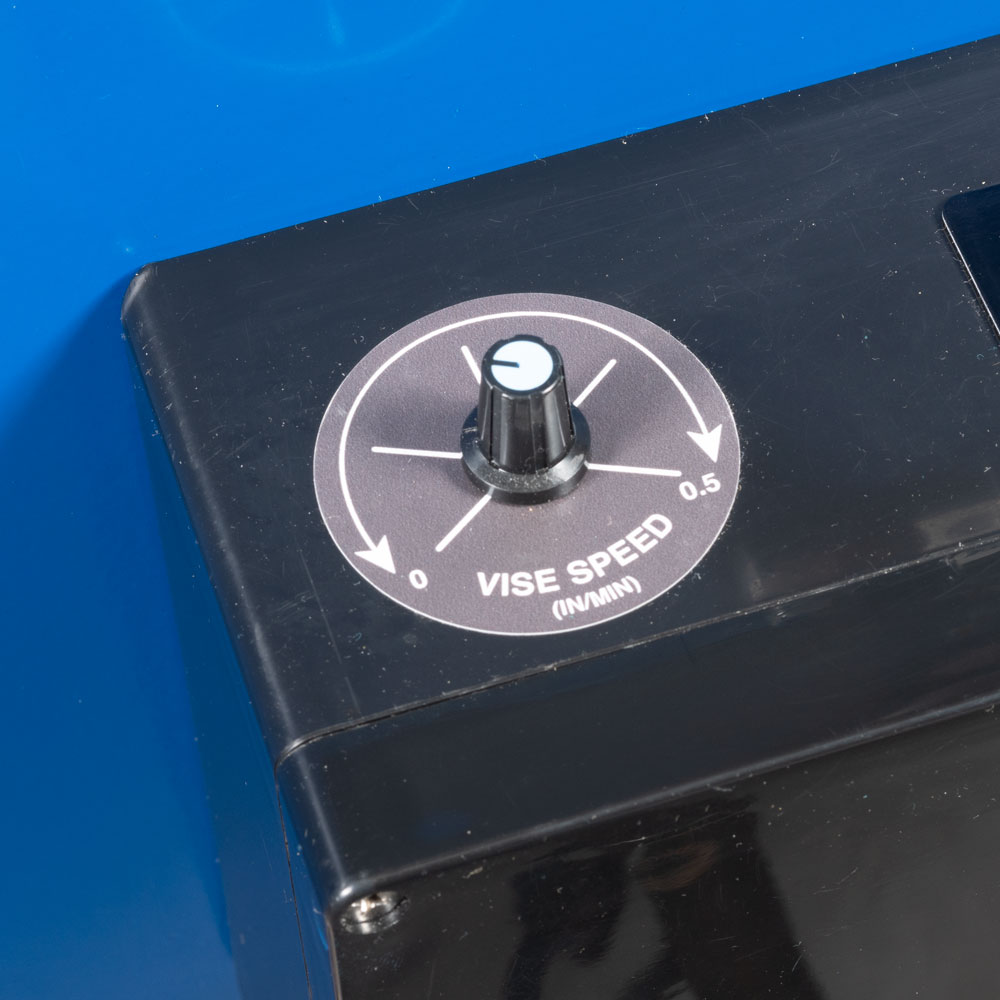

Vise feed adjustment

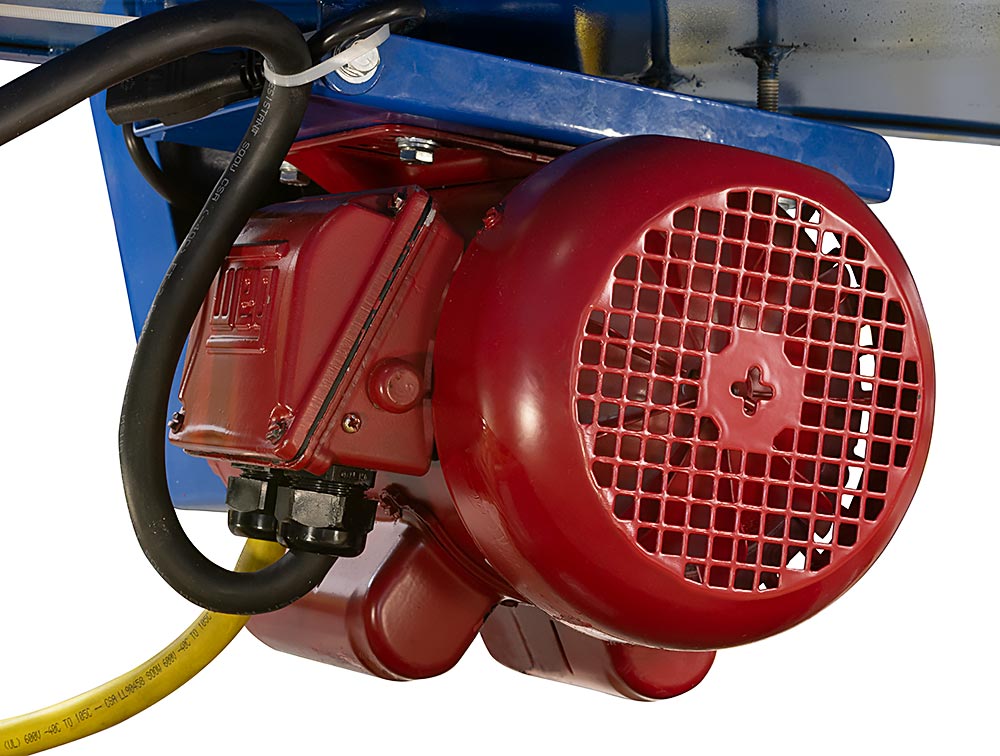

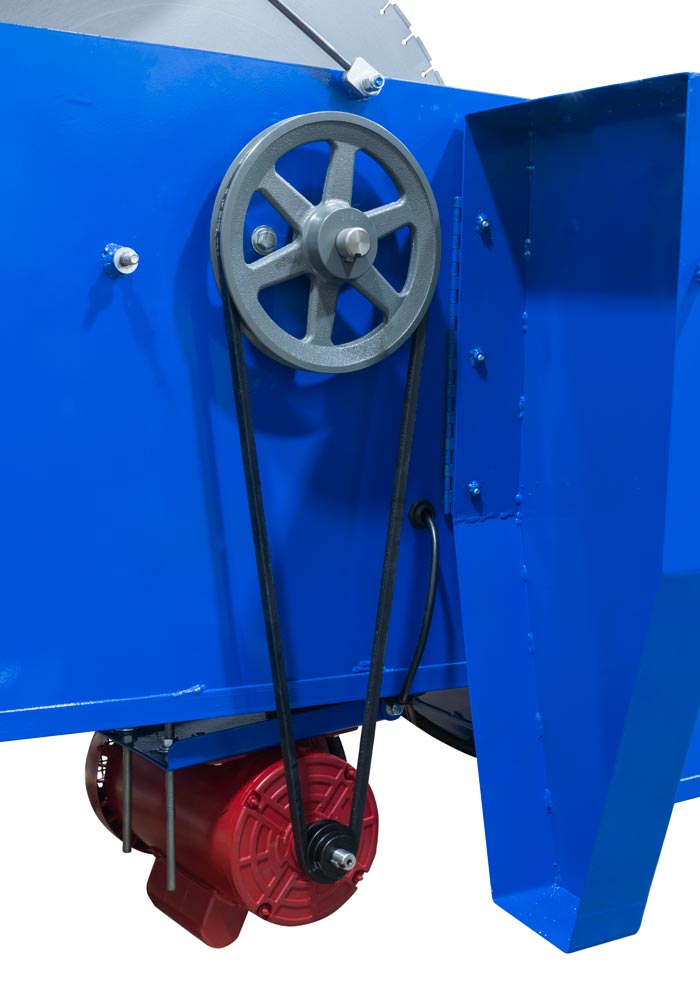

HP30 220 Volt Motor and Drive Pulley
HP30 Slab Saw

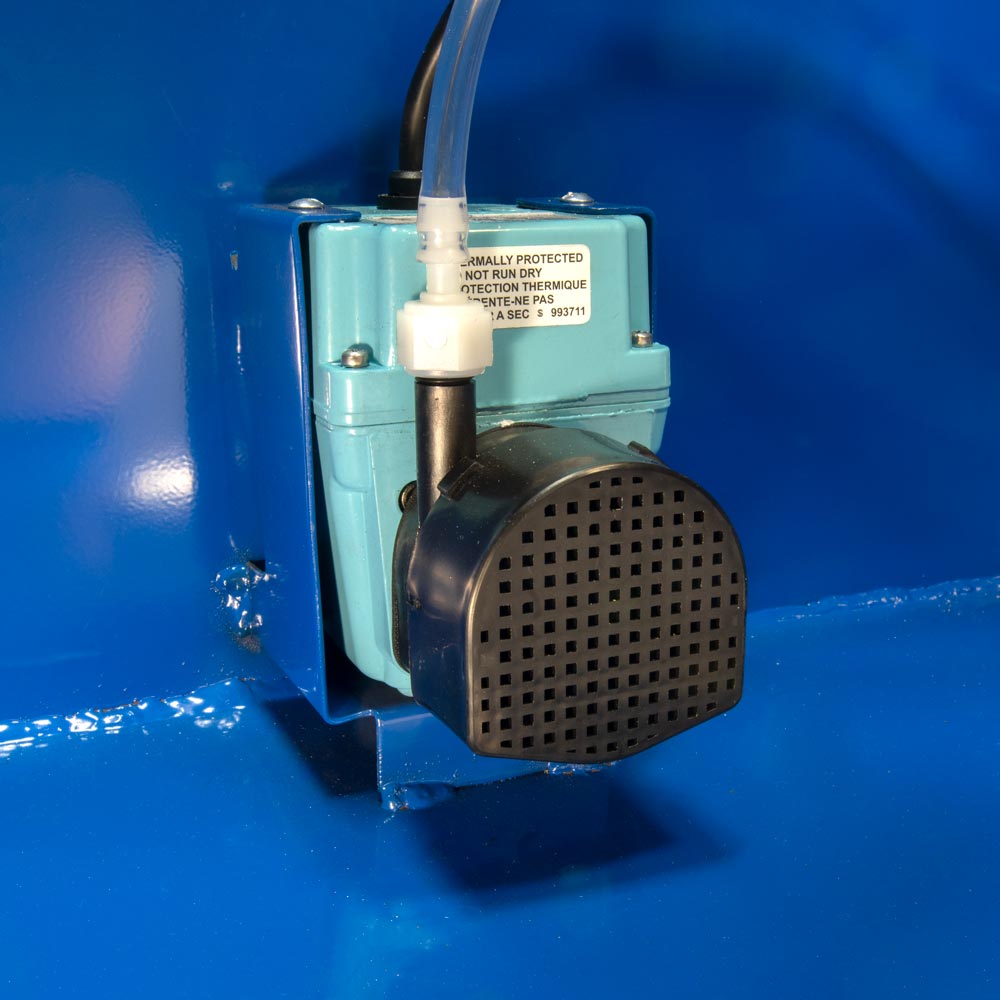

HP30 Electric Pump
HP30 Slab Saw
  • 2 Hp continuous duty commercial grade motor with thermal overload protection and manual reset
  • Fully sealed drive shaft bearing housing
  • Rolling element linear bearings in carriage for ease of movement over main guide rails
  • Screw drive vise carriage with automatic shutoff
  • Silicon bronze clutch block carriage feed engagement system
  • Continuously variable vise feed rate, 0-0.5 in./min.
  • Chrome plated cast iron parts allow use of waterbased coolants
  • Powder coated reservoir and zinc plated hood
  • Reservoir bottom drain for ease of sludge removal
  • Large capacity oil/sludge reservoir

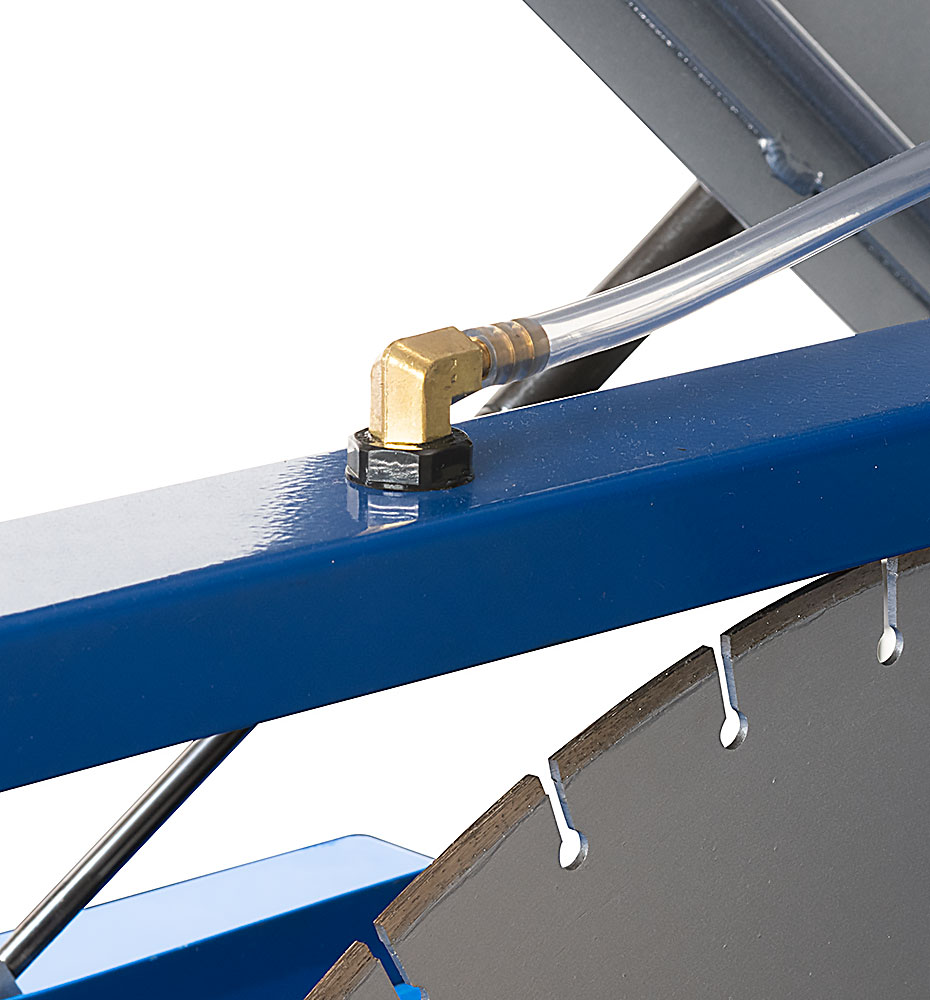

  • Submersible pump system provides lubrication, flushing and cooling
Part # 168084
Motor 2 hp
Voltage 220V/60Hz
Amperage 8
Motor RPM 1725
Blade RPM 380
Arbor 1"
Blade Capacity 30"
Depth of Cut* 12.5"
Vise Opening 18"
Coolant Required 25 Gallons
Blade Lubrication Submersible pump
L x W x H 67” x 37” x 49”
Weight 875 lbs.
Blade not included with saw.

*Maximum depth of cut will vary depending on size and shape of specimen.

Warranty Period: 1 year from date of purchase against all manufacturing or material defects.

Manufacturing period 6 weeks from date of order.

220 volt 50 or 60 Hz motors are available by special order.

Contact MK Diamond Customer Service for ordering information.
