HP14 Slab Saw
  • 1/2 HP continuous duty commercial grade motor with thermal overload protection and manual reset
  • Fully sealed drive shaft bearings for minimal maintenance
  • Heavy duty cast iron carriage and rock vise
  • Screw drive vise carriage with automatic shutoff
  • Bronze clutch block carriage feed engagement system
  • Hard chrome plated carriage rails for smooth operation and extended life
  • Geardrive motor provides feed rate of 3/16 inch per minute
  • Powder coated reservoir and hood
  • Splash-style lubrication, flushing and cooling system
  • Includes a 14" x .065" 301 diamond blade
Part # 8302014
Motor 1/2 hp
Motor RPM 1725
Voltage 110V/60 Hz
Amperage 8
Blade Capacity 12"-14"
Depth Of Cut 4-5/8"
Max. Vise Opening 5-3/4"
Oil Capacity 2.4 Gallons
Blade 14" BD-301
Power Feed Motor 1/50 HP
Motor RPM 6
LxWxH 41" x 27" x 19"
Saw Weight 170 lbs
Shipping Weight 230 lbs

Warning IconWarning: Use of this equipment can expose you to chemicals including nickel and crystalline silica which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. Repeated and/or substantial inhalation can cause serious or fatal respiratory diseases including silicosis. Employ dust controls and protection per OSHA/NIOSH/MSHA
Click on thumbnails for enlarged images.

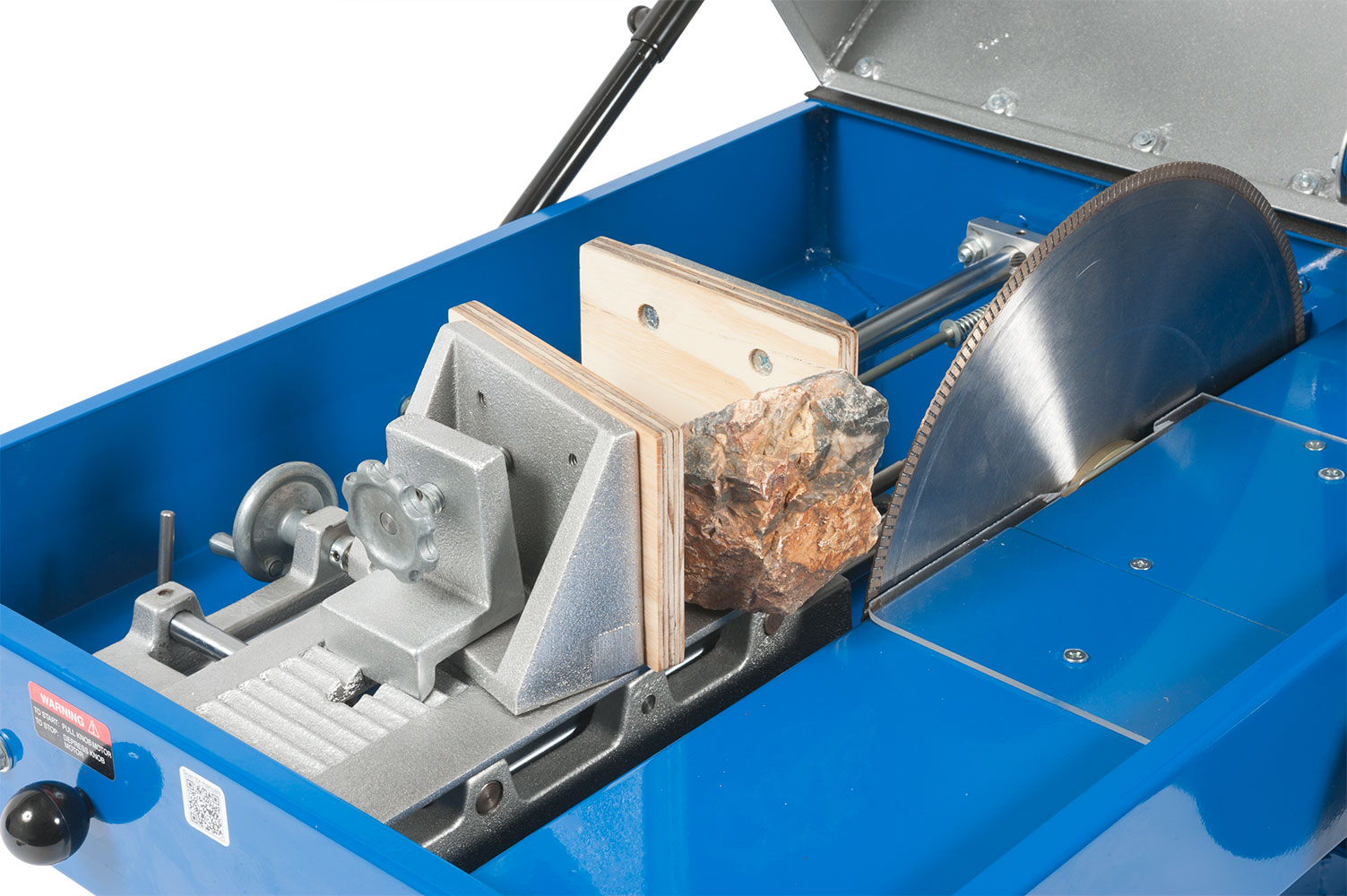

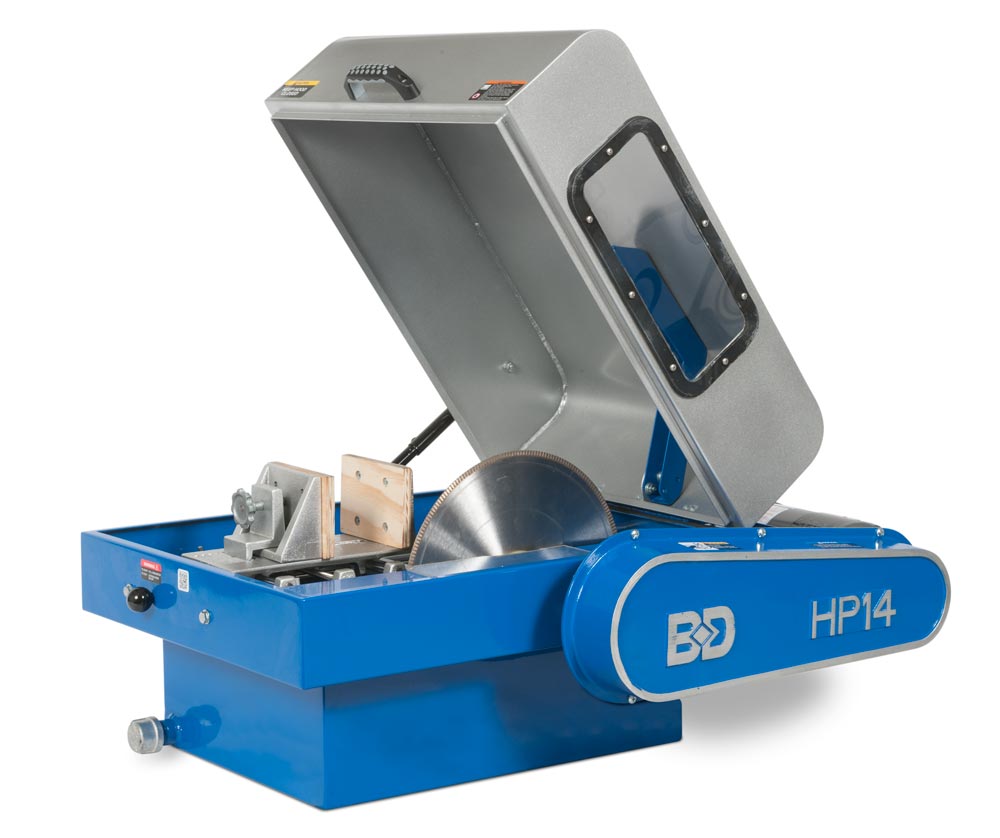

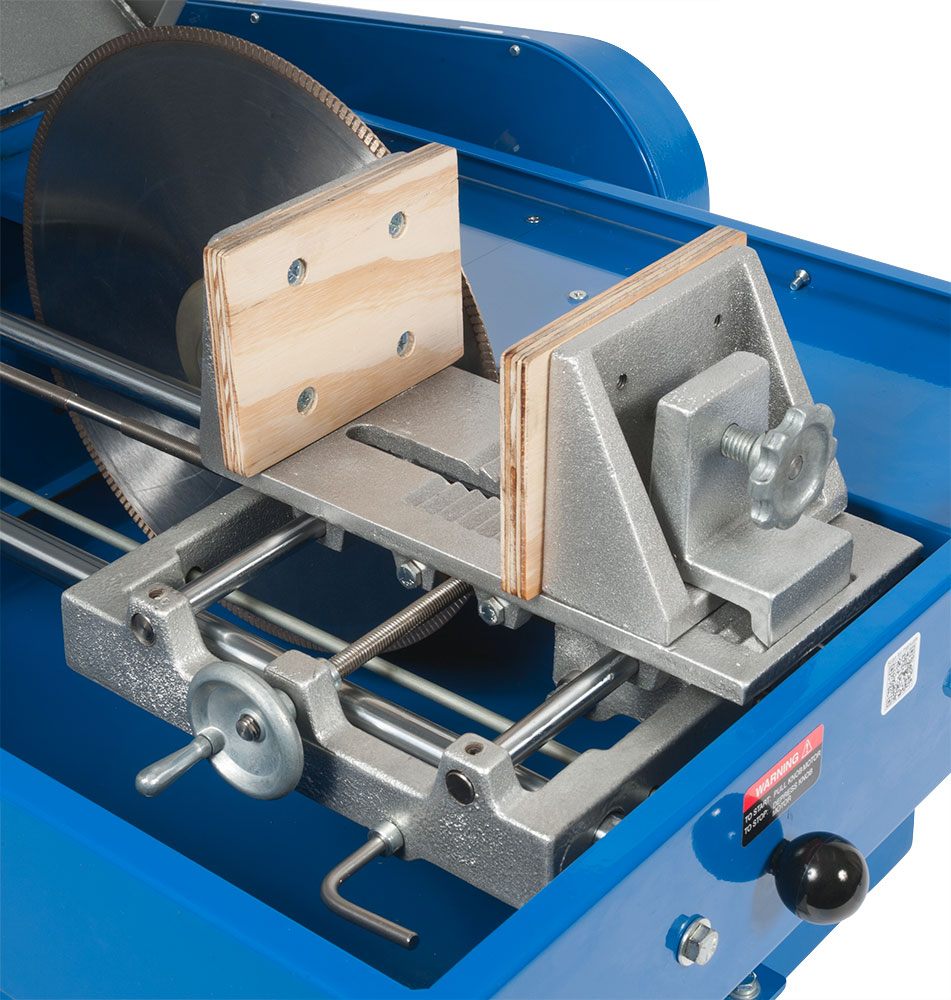

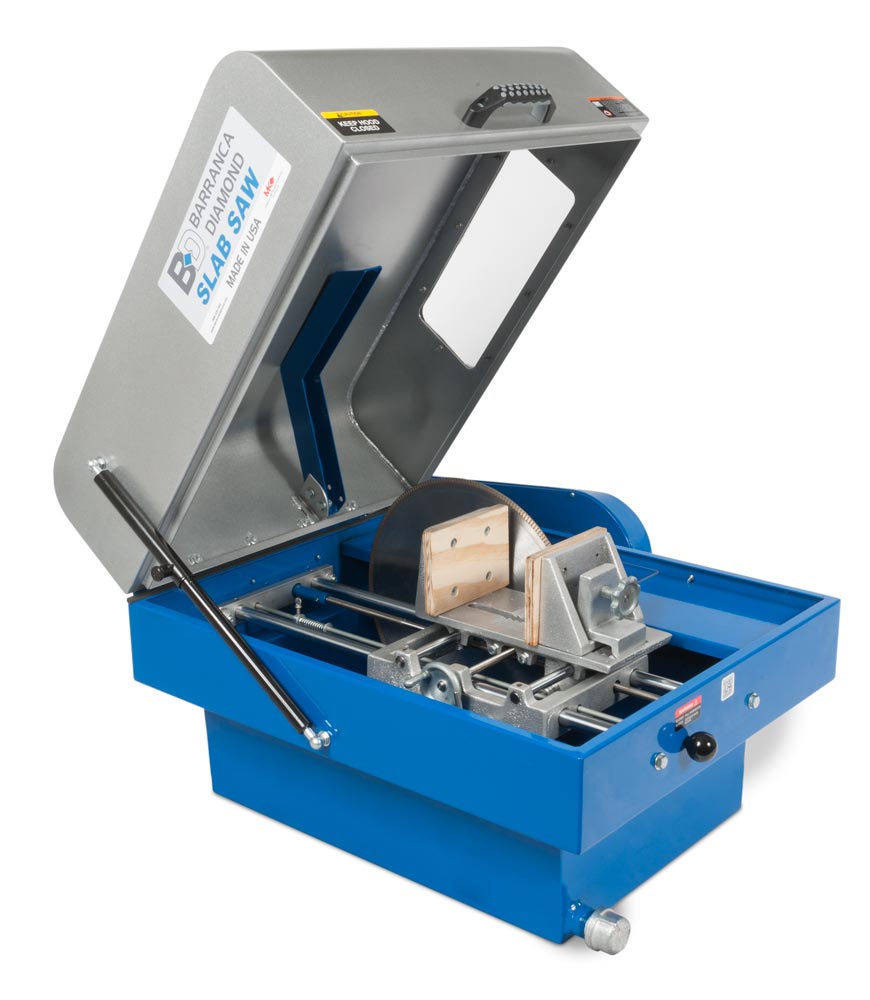

HP14 slab saw 1/2 HP continuous duty motor Heavy duty cast iron carriage and rock vise 5-3/4 inch maximum vise opening
Included Accessories
BD-301 Blade 14" BD-301
Diamond Blade
Optional Accessories
HP14 Saw Stand HP14 Saw Stand
Ground Fault Circuit Interrupter GFCI
