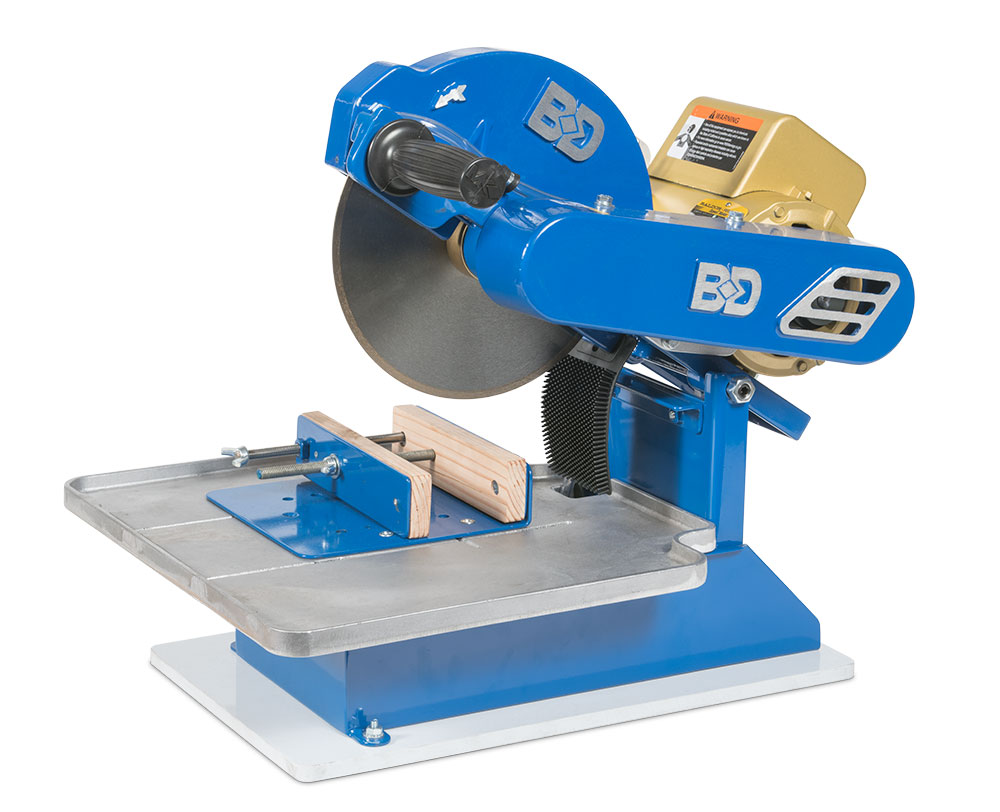

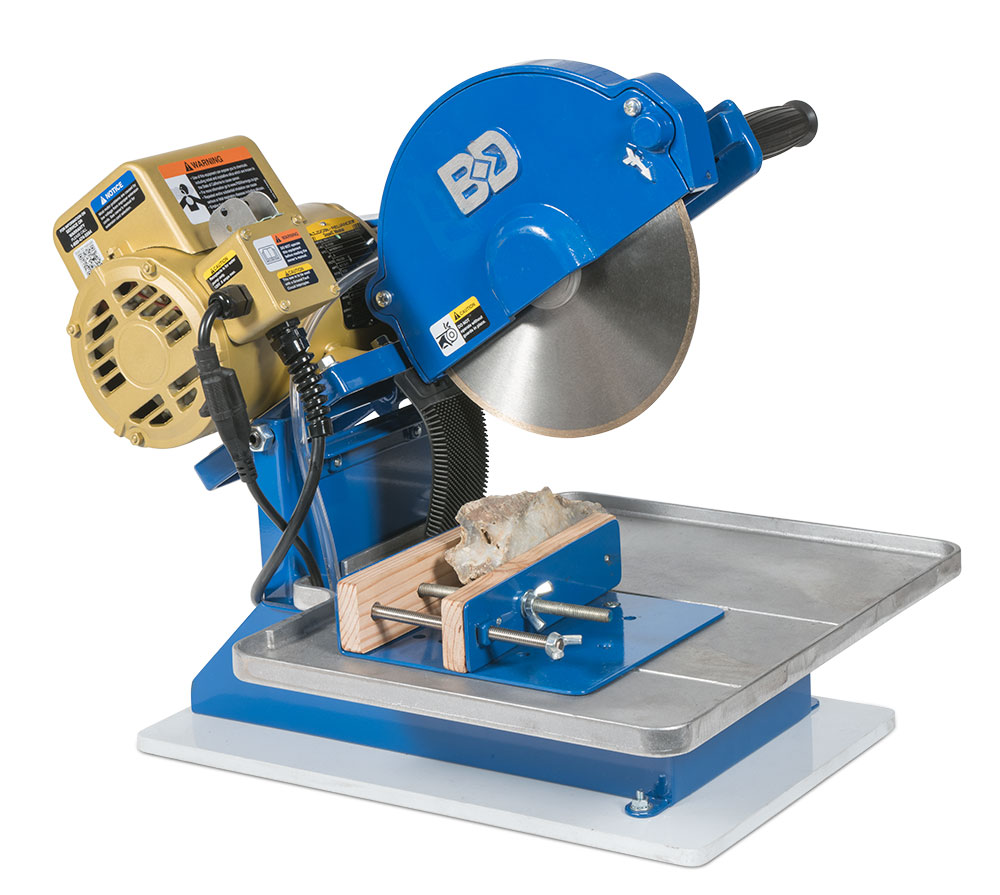

BD Drop Saw

The BD Drop Saw can be used to cut and slab glass, rocks and gemstones. It come with an adjustable rock vise and utilizes a gravity feed design for ease of cutting.

  • 1/2 HP continuous duty commercial grade motor with thermal overload protection and manual reset
  • Cut specimens up to 4" in height
  • 17-1/4" x 15-3/4" tabletop
  • Powder coated frame, reservoir and guards
  • Includes a 12" x .050" BD-305 diamond blade, water pump and rock vise
Part # 172668
Motor 1/2 hp
Voltage 115V/60Hz
Amperage 4.7
Motor RPM 1,725
Blade Flange 2-3/8"
Blade Capacity 10"
Arbor 5/8"
Depth Of Cut 3-1/2"
Max. Vise Opening 5"
LxWxH 21" x 17-1/2" x 19"
Saw Weight 71 lbs

Warning IconWarning: Use of this equipment can expose you to chemicals including nickel and crystalline silica which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. Repeated and/or substantial inhalation can cause serious or fatal respiratory diseases including silicosis. Employ dust controls and protection per OSHA/NIOSH/MSHA
Click on thumbnails for enlarged images.

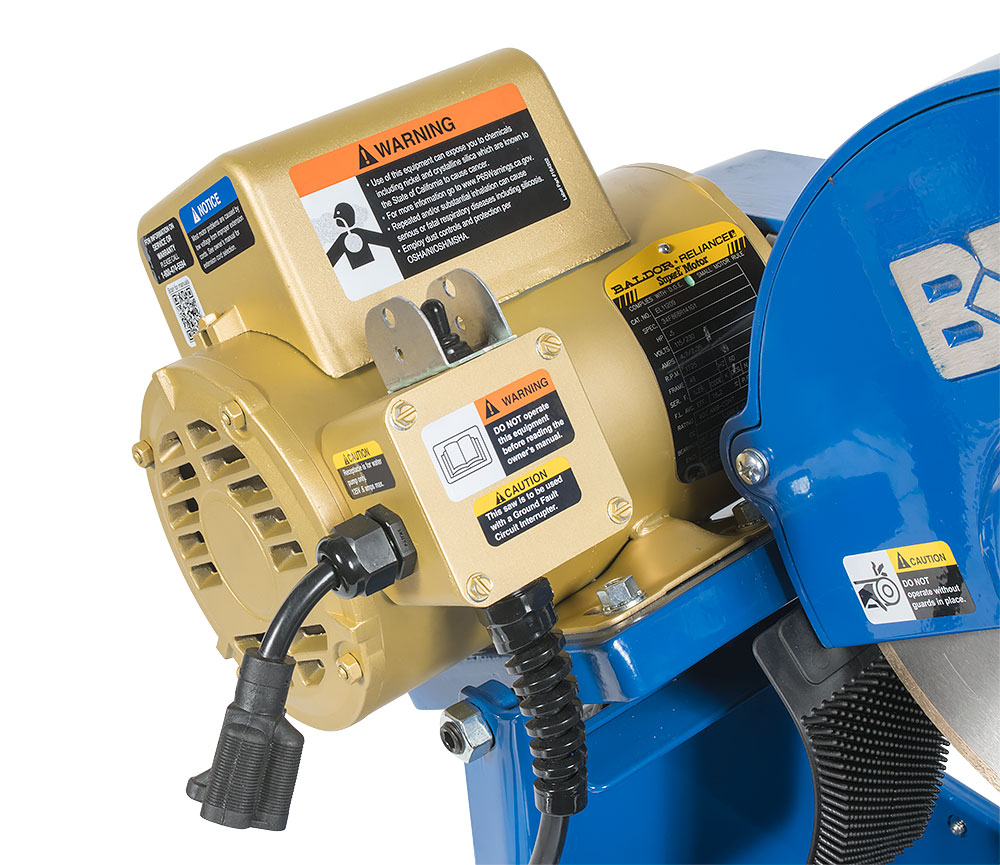

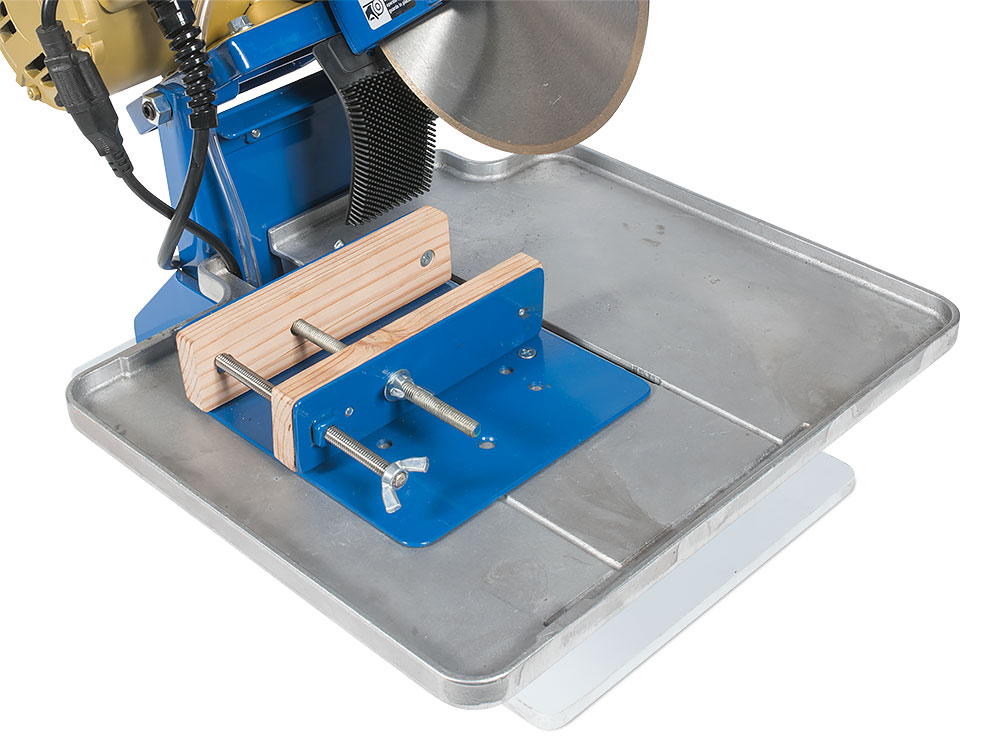

1/2 horse power continuous duty commercial grade motor with thermal overload protection 17-1/4 inch by 15-3/4 inch tabletop Drop Saw with rock vise
Included Accessories
BD-305 Blade 12" BD-305
Diamond Blade
Rock Vise Rock Vise
Water Pump Water Pump
Optional Accessories
Ground Fault Circuit Interrupter GFCI
Dressing Stone Dressing Stone
