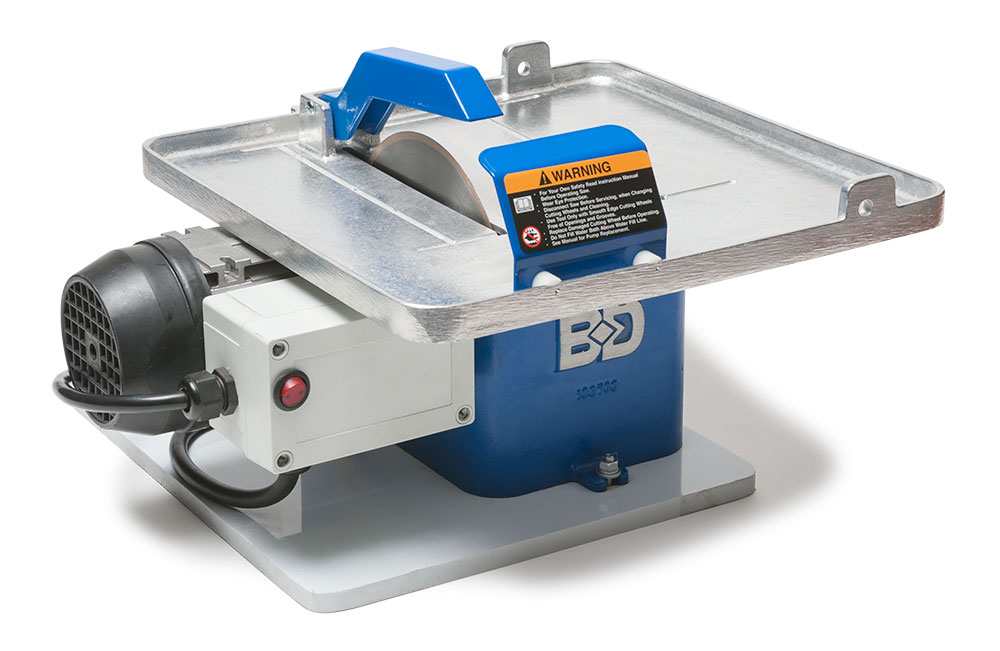

BD7 Trim Saw

The BD7 Trim Saw has a large 14" x 14" cutting surface and a direct drive motor for reliable, smooth, quiet operation. The table top tilts up and out of the way for blade changes, adding fluid, or cleaning.

  • All cast aluminum tank, table and blade guard
  • Table surface is hardened by ball burnishing for longer life
  • Easy to clean tank with fluid drain hose and sludge removal plug
  • Mounted on a 1/2" polypropylene base
  • Includes a 7" 303 Pro lapidary diamond blade
  • 220 volt motor available on request

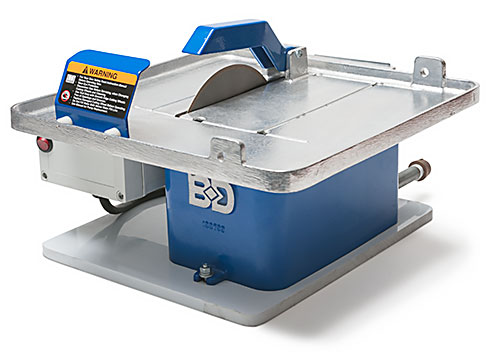

Part # (without vise and splash hood) 170789
Part # (with vise and splash hood) 168765

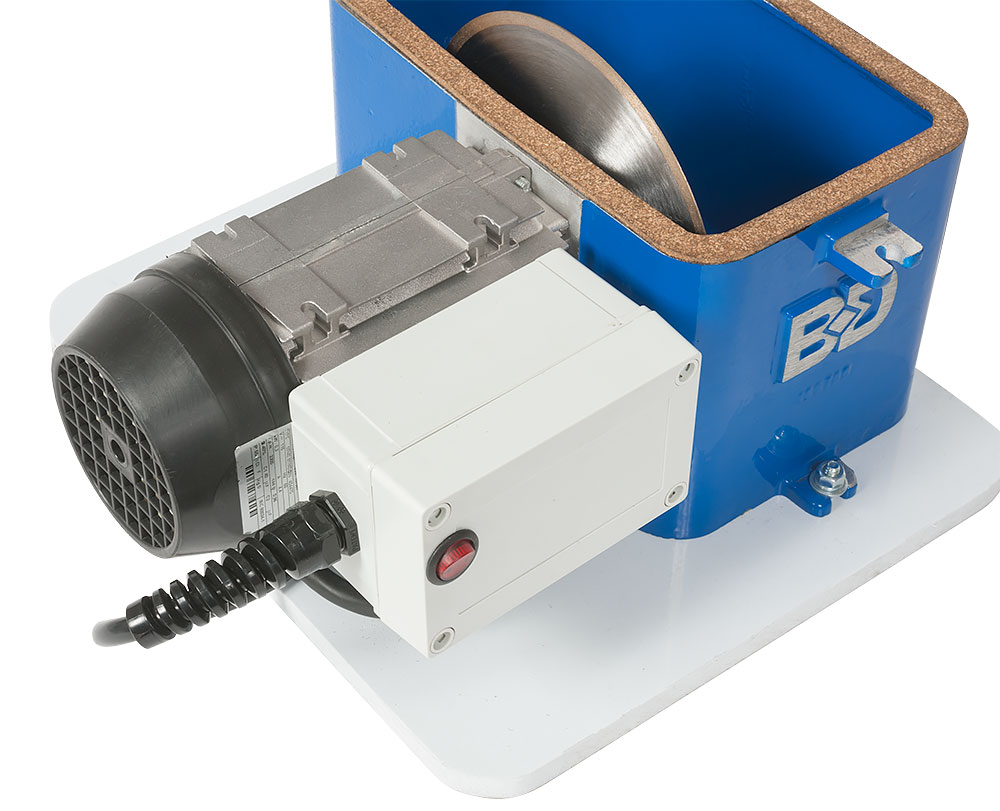

Motor Soga MR48 1/3 hp
Voltage* 115V/60Hz
Amperage 4.4
Motor RPM 3,300
Blade Hub 5/8"
Blade Capacity 7"
Oil Capacity .3 Gallons
Depth Of Cut 1-3/16"
Max. Vise Opening 2-3/4"
LxWxH 17" x 18" x 12"
Saw Weight 28 lbs.
* 220 volt motor available on request

Warning IconWarning: Use of this equipment can expose you to chemicals including nickel and crystalline silica which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. Repeated and/or substantial inhalation can cause serious or fatal respiratory diseases including silicosis. Employ dust controls and protection per OSHA/NIOSH/MSHA
Click on thumbnails for enlarged images.

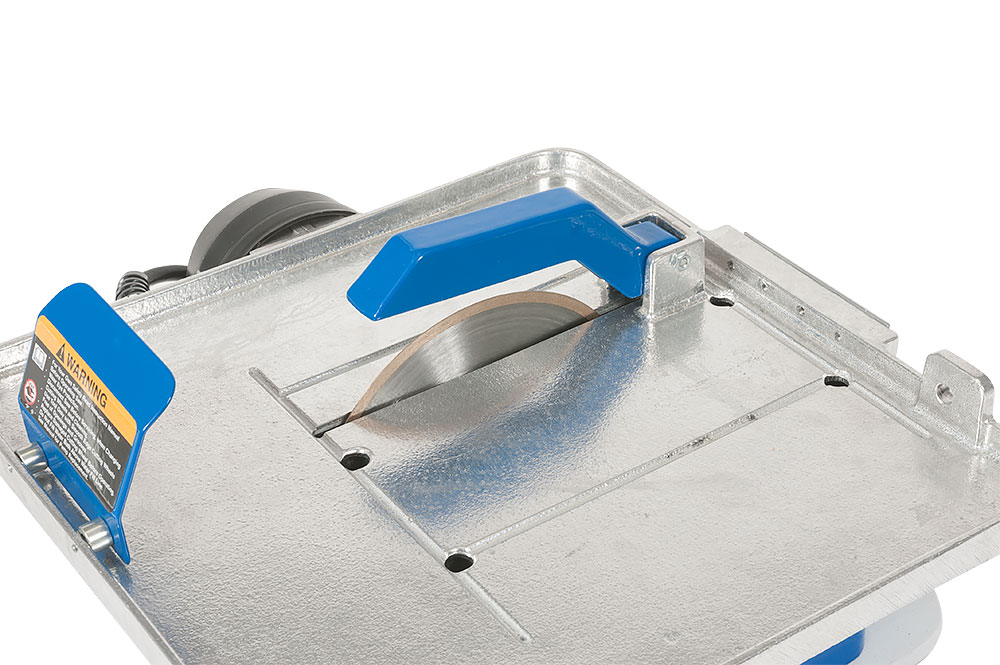

BD7 Trim Saw Soga MR48 1/3 horse power motor Cast aluminum tank, table and blade guard Optional rock vise with cross feed adjustment Optional splash hood
Included Accessories
BD-303 Blade 7" BD-303
Diamond Blade
Optional Accessories

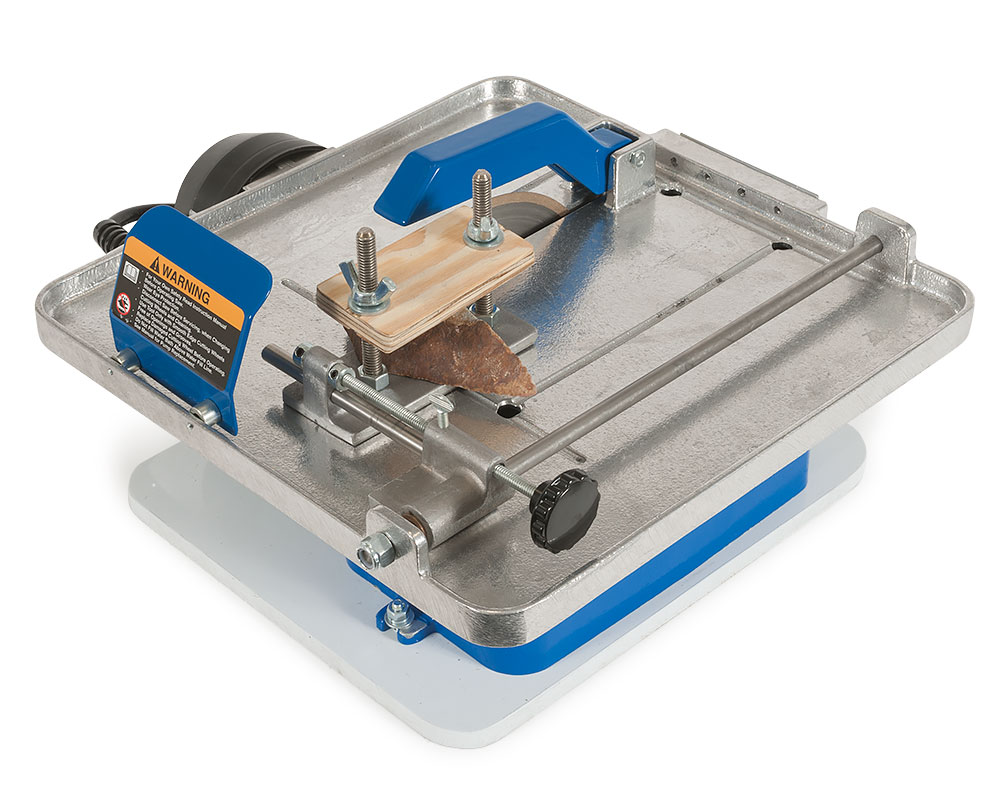

Rock Vise Rock Vise

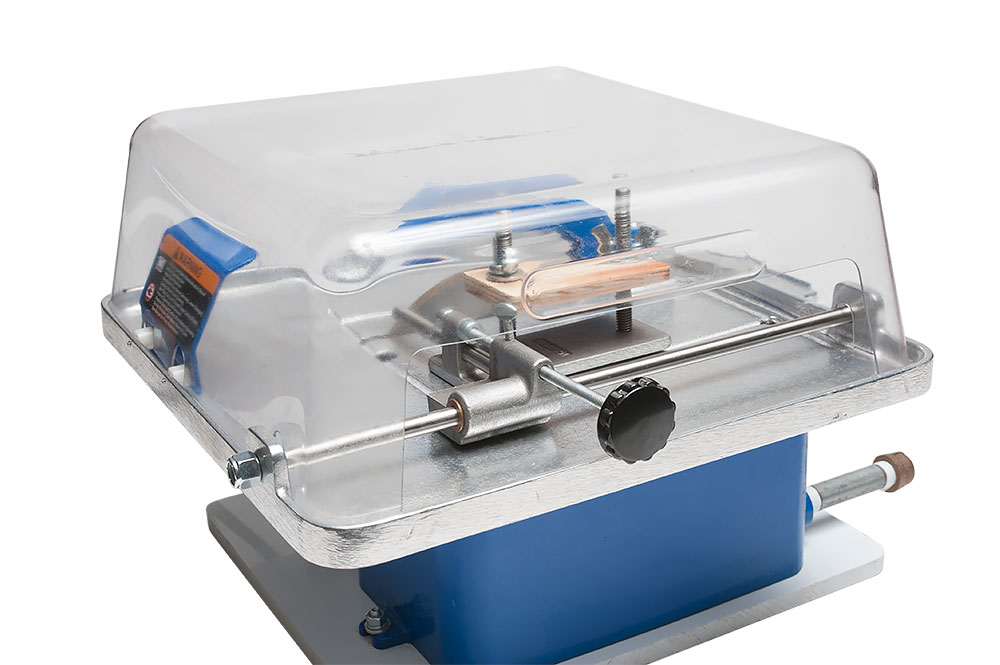

Splash Hood Splash Hood
Ground Fault Circuit Interrupter GFCI
