BD10 Power Feed Trim Saw
  • Ideal for cutting facet material, opals and rock slabs of all types
  • 15-3/8" x 19-1/2" work surface
  • All cast aluminum tank, table, rock vise, blade guard, and power feed box
  • Hinged table top for ease of sludge/fluid and blade removal
  • Easy to clean tank with fluid drain hose and sludge removal plug
  • Vertical rock vise clamping system
  • Vise rotates out of the way for manual trim saw use
  • Sealed blade arbor-bearing assembly
  • PETG high-impact, copolymer hood
  • Brass clutch plate engagement system
  • Single speed (3/16" per minute feed rate) power feed system
  • Mounted on a 1/2" polypropylene base
  • Includes a 10" 303C or 301 Supreme Pro lapidary diamond blade
  • 220 volt motor available on request
Part # 168787
Motor 1/3 hp
Voltage* 115V/60Hz
Amperage 5.8
Motor RPM 1725
Blade Shaft 5/8"
Blade Capacity 8"-10"
Oil Capacity (10" Blade) .31 Gallons
Oil Capacity (8" Blade) .62 Gallons
Depth Of Cut: Manual Cutting 3"
Depth Of Cut: Power Feed Cutting 2-5/8"
Max. Vise Opening 3-1/4"
LxWxH 30" x 18" x 17"
Saw Weight 73 lbs.
* 220 volt motor available on request

Warning IconWarning: Use of this equipment can expose you to chemicals including nickel and crystalline silica which are known to the State of California to cause cancer. For more information go to Repeated and/or substantial inhalation can cause serious or fatal respiratory diseases including silicosis. Employ dust controls and protection per OSHA/NIOSH/MSHA
Click on thumbnails for enlarged images.

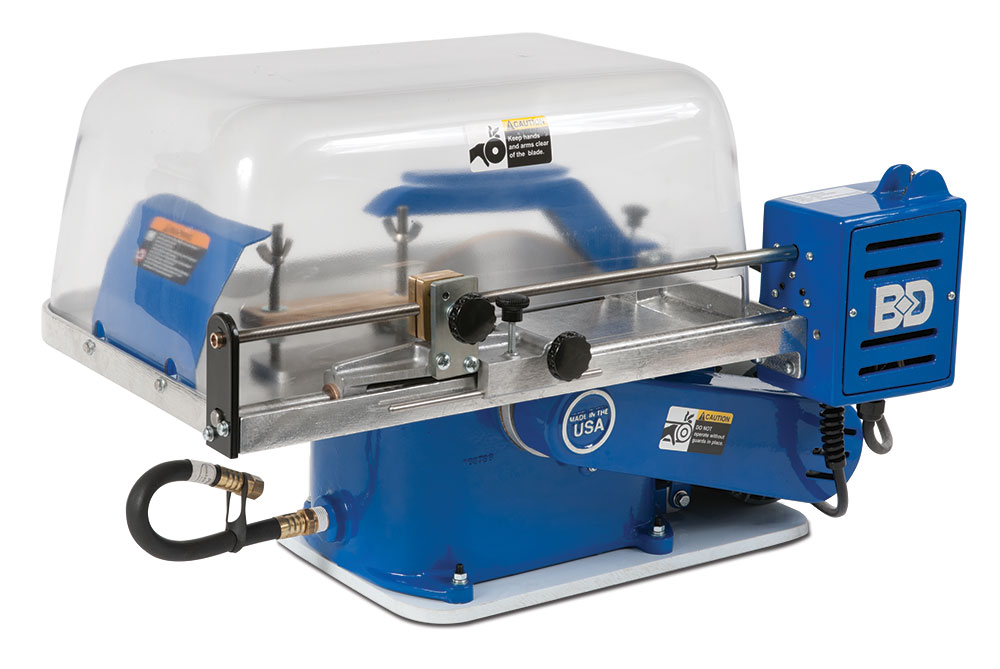

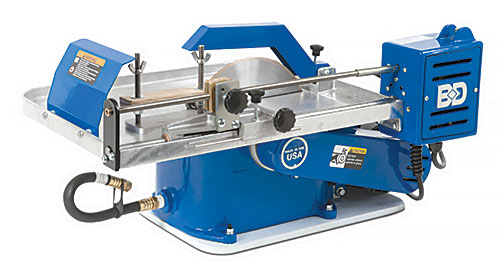

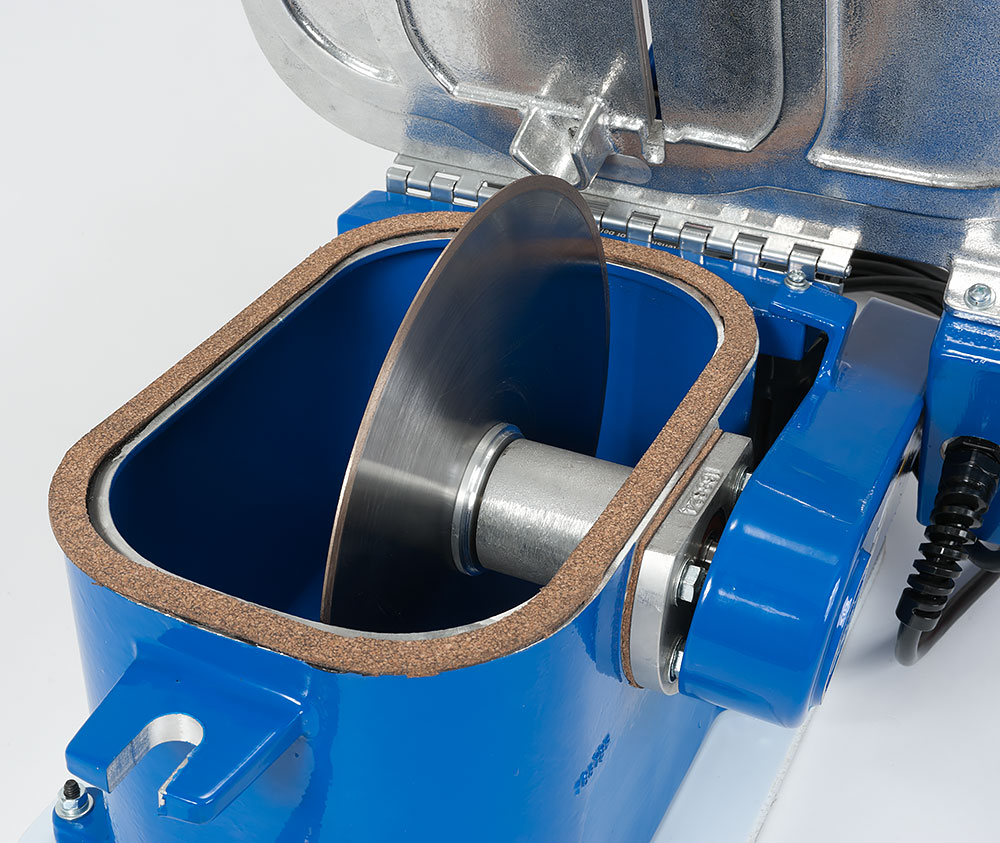

BD10 with splash hood Vertical rock vise clamping system Hinged table top for ease of sludge/fluid and blade removal
Included Accessories
BD-301 Blade 10" 303C or 301
Diamond Blade
Optional Accessories
Ground Fault Circuit Interrupter GFCI
