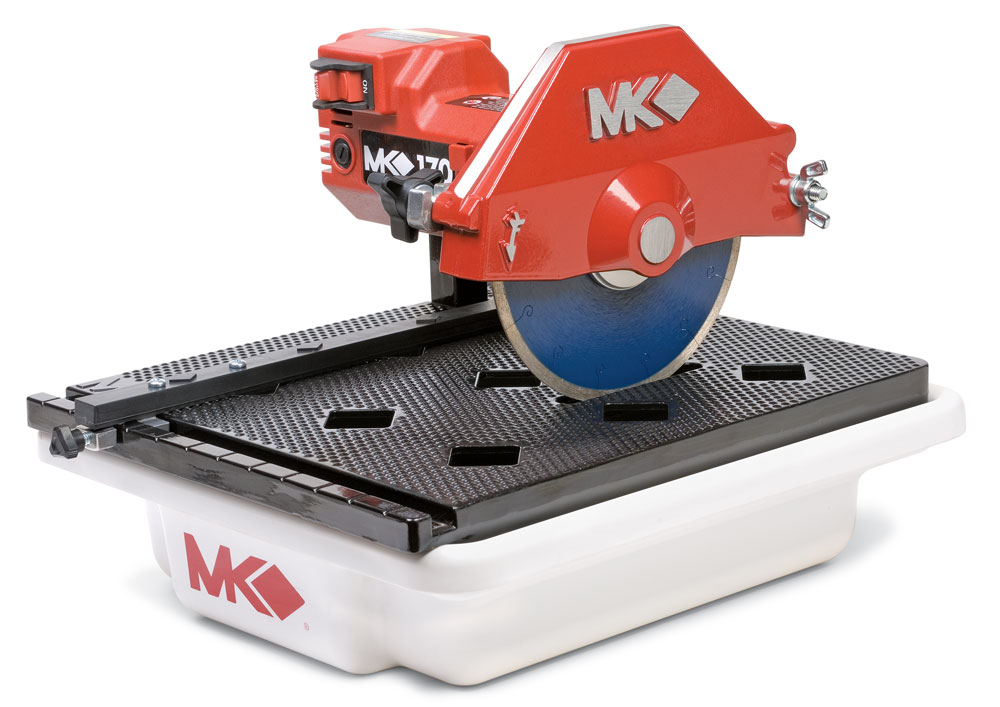

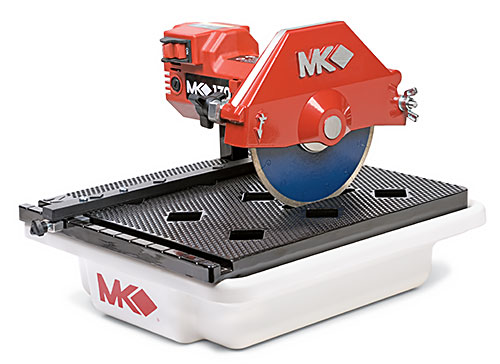

MK-170 Trim Saw

The MK-170 is perfect for the homeowner and weekend craftsman. The tabletop design makes it versatile and compact. It comes complete with a diamond blade and submersible water pump.

  • High-torque 1/2 hp motor
  • High-impact thermoplastic water reservoir
  • MK-Safeswitch™ prevents saw from being operated when locking key is removed
  • 7" 303P diamond blade, rip guide, sharpening stick & submersible water pump included
  • One-year limited warranty
Motor 1/2 hp, 120V
Amps 5
RPM 5,500
Blade Capacity 7" (178mm)
Arbor Size 5/8" (16mm)
Length of Cut 12" (300mm)
Depth of Cut 2" (51mm)
LxWxH (inches) 17" x 14" x 12"
Weight 15 lbs.
Part # 172000

Warning IconWarning: Use of this equipment can expose you to chemicals including nickel and crystalline silica which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. Repeated and/or substantial inhalation can cause serious or fatal respiratory diseases including silicosis. Employ dust controls and protection per OSHA/NIOSH/MSHA
Included Accessories
BD-303P5 Blade 7" BD-303P
Diamond Blade
Rip Fence Rip Fence
Electric Water Pump Electric Water Pump
Dressing Stone Dressing Stone
Optional Accessories
Ground Fault Circuit Interrupter GFCI
