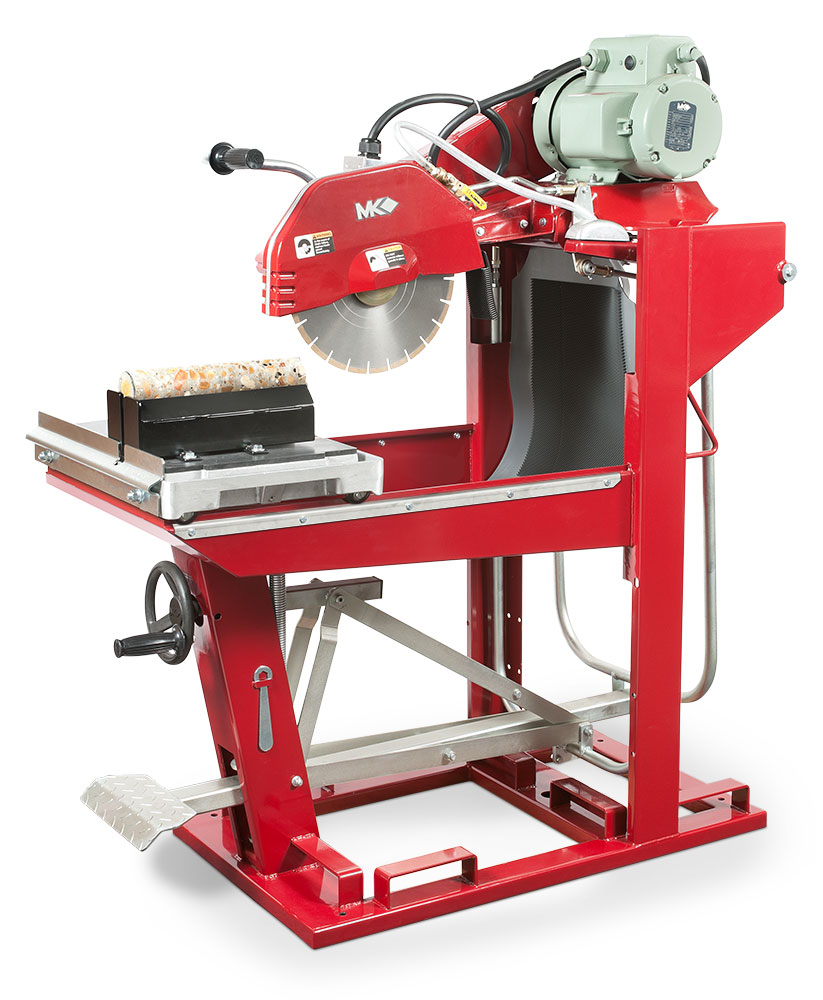

MK-5000 Series Core Saws

Heavy duty 14" core cutting saw with a 5 hp, 230 Volt motor or a 9 hp Honda engine. Foot pedal for hands-free cutting, open back saw frame with large conveyor cart for cutting longer cores and heavy duty blade shaft bearings.

  • Precision screw feed mechanism allows the cutting head to be easily raised or lowered to the precise cutting depth required
  • Self-leveling blade guard provides optimum blade coverage for operator safety
  • Open-back design allows for material up to 20" long to be cut
  • Conveyor cart built from heavy-duty cast aluminum
  • 3 phase saws are equipped with GE NEMA 1 starters in NEMA 12 enclosure
  • Adjustable water supply for maximum blade protection
  • Built-in tie-downs for safer saw transport
  • Ergonomically designed handle for reduced operator fatigue
  • Heavy-duty built-in forklift brackets allow lift to approach from the front or either side of the saw
  • One-year limited warranty
  • Made in the USA
Model MK-5005S MK-5009G
Part # 169751 169757
Motor/Engine 5 hp Honda GX270
Voltage 208/230V
Motor RPM 1,725 3,600
Blade RPM 2,700 2,700
Blade Capacity 14" (350mm) 14" (350mm)
Depth of Cut 5" 5"
Arbor 1" (25mm) 1" (25mm)
Length of Cut 20" 20"
Weight 445 lbs. 498 lbs.
LxWxH 53" x 26" x 63" 57" x 26" x 72"
LxWxH (mm) 1,346 x 660 x 1,600 1,524 x 660 x 1,826

Warning IconWarning: This equipment contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. These chemicals are contained in various components. fluids and paint including but not limited to fuel, oil, electric motors and batteries. In addition, gasoline/diesel powered equipment emits engine exhaust and fumes, and when serviced, cleaned or maintained generate used oil, waste fluids, fumes, grease, grime and particulates from the component wear and silica dust which contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Click on thumbnails for enlarged images.

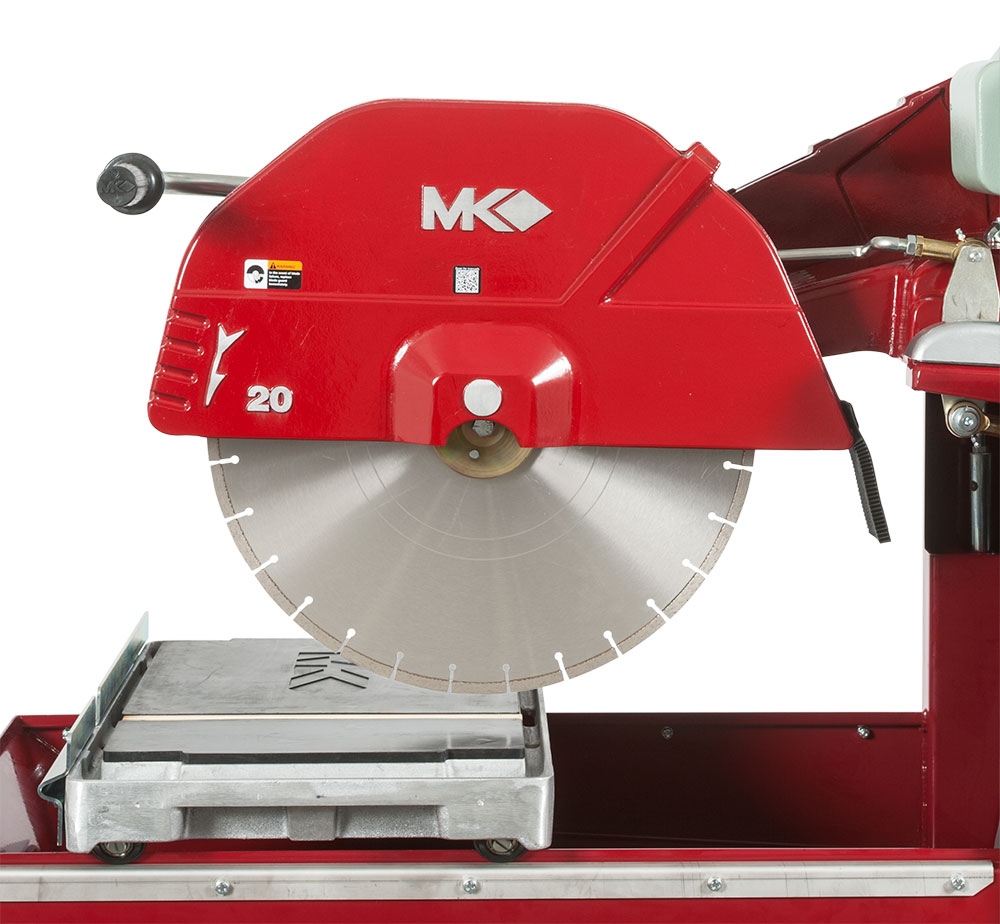

Stay level blade guard Open-back design allows 8 inch high block to be cut in a single pass MK-5000 conveyor cart
Foot pedal frees both of the operator's hands for holding the masonry piece Heavy-duty built-in forklift brackets Core holder
Accessories Included with the BX-4
MK-62Q Blade 14" MK-62Q Wet Cutting Diamond Blade

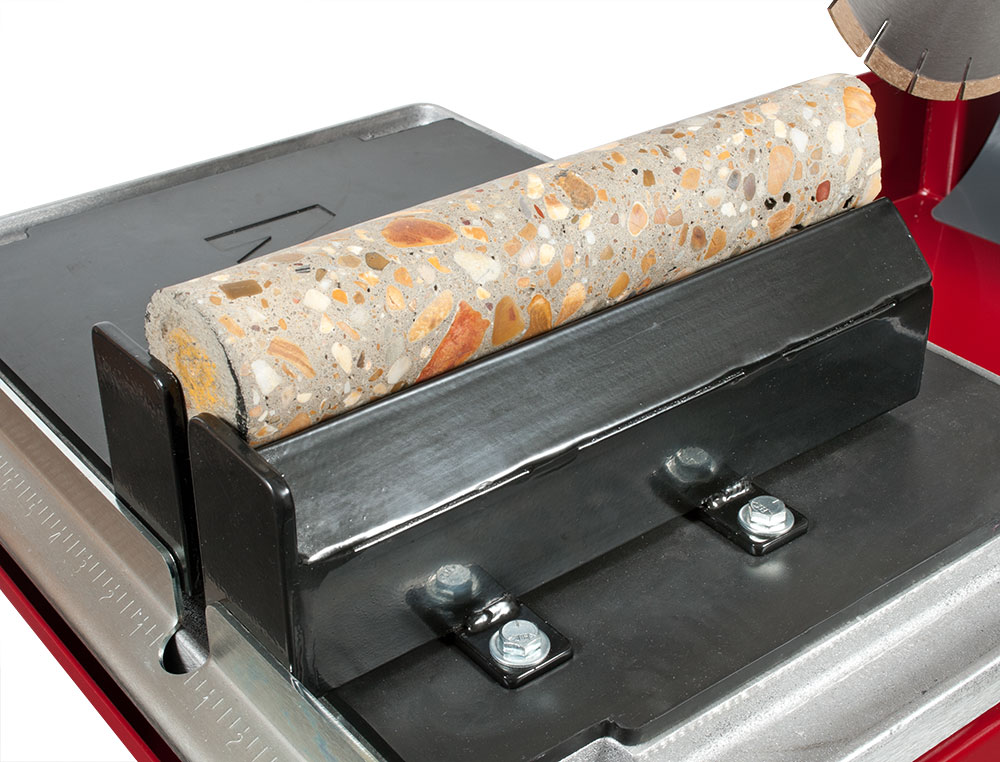

Core holder Core Holder
