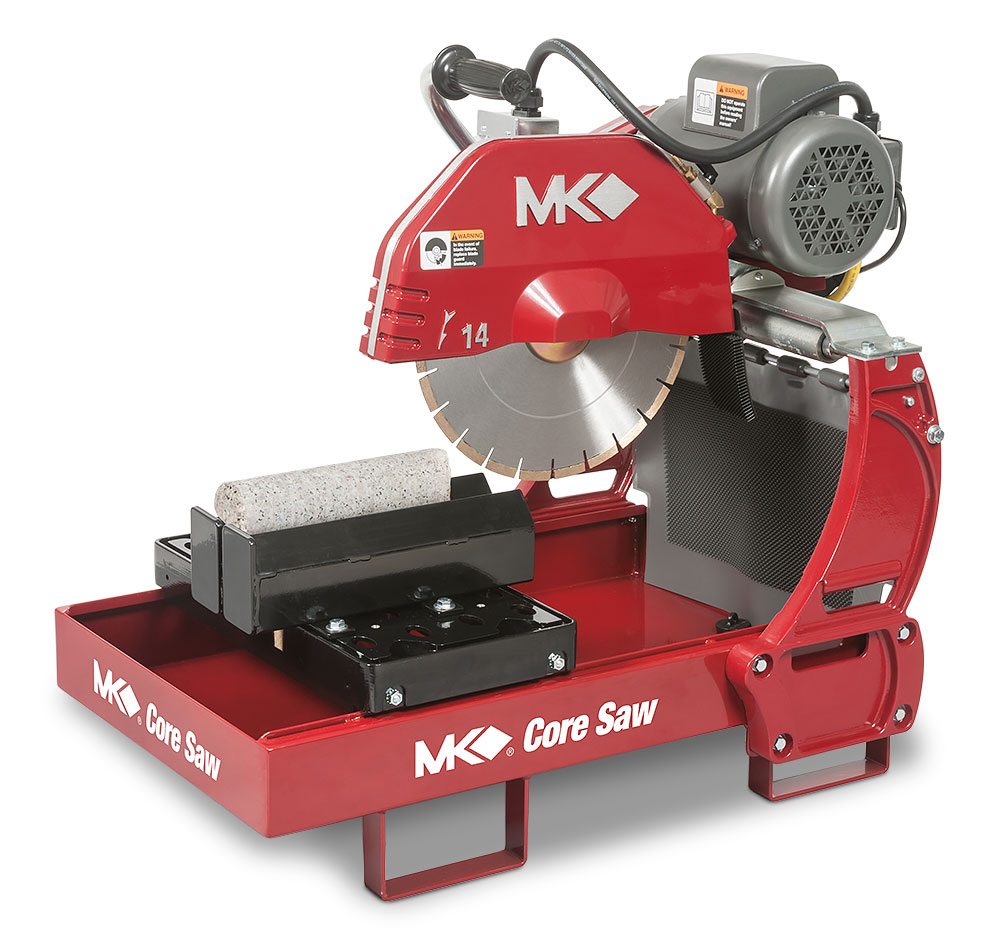

MK-2002E Electric Core Saw
Add to Cart Manual Parts List Sell Sheet

These precision built saws are designed for rapid and accurate sawing of exploratory core specimens. The specially designed 14" segmented diamond blade allows cutting of hard or dense rock samples and engineered materials. The integral core holder provides for rapid and safe cutting of cylindrical core samples. Adjustable height cutting head accommodates specimen sizes between 1" and 5" in diameter.

MK-2002E Core Saw
Core Clamp with 4" Core Insert
Stay level blade guard
Fork lift brackets
  • Stay level blade guard gives 180º coverage at all times
  • Blade shaft is built with sealed, permanently lubricated, heavy-duty bearings
  • Cast-aluminum structural components & jig-welded steel frame assembly
  • Convenient ON/OFF switch for operator safety
  • Recoil spring return cutting head
  • Cast aluminum blade guard with stainless steel water tubes that will not bend or rust
  • Adjustable water supply for maximum blade protection
  • Thermally protected 2 hp motor
  • Submersible electric water pump
  • Made in the USA
  • 230V/50 Hz motor available on request
  • One-year limited warranty
Model MK-2002E
Part # 158751
Motor 2hp
Voltage 230V
Motor RPM 3,450
Blade RPM 3,100
Blade Capacity 14" (350mm)
Arbor 1" (25mm)
Max Core Sample Length 12"
Max. Core Sample Diameter 5"
Min. Core Sample Diameter 1"
Weight 172 lbs.
LxWxH 34" x 25" x 32"
LxWxH (mm) 940 x 584 x 737
Included Accessories
