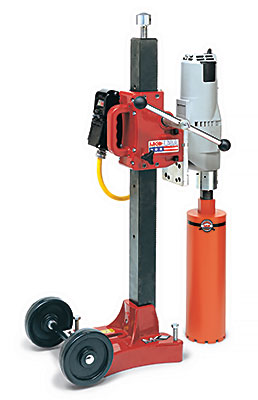

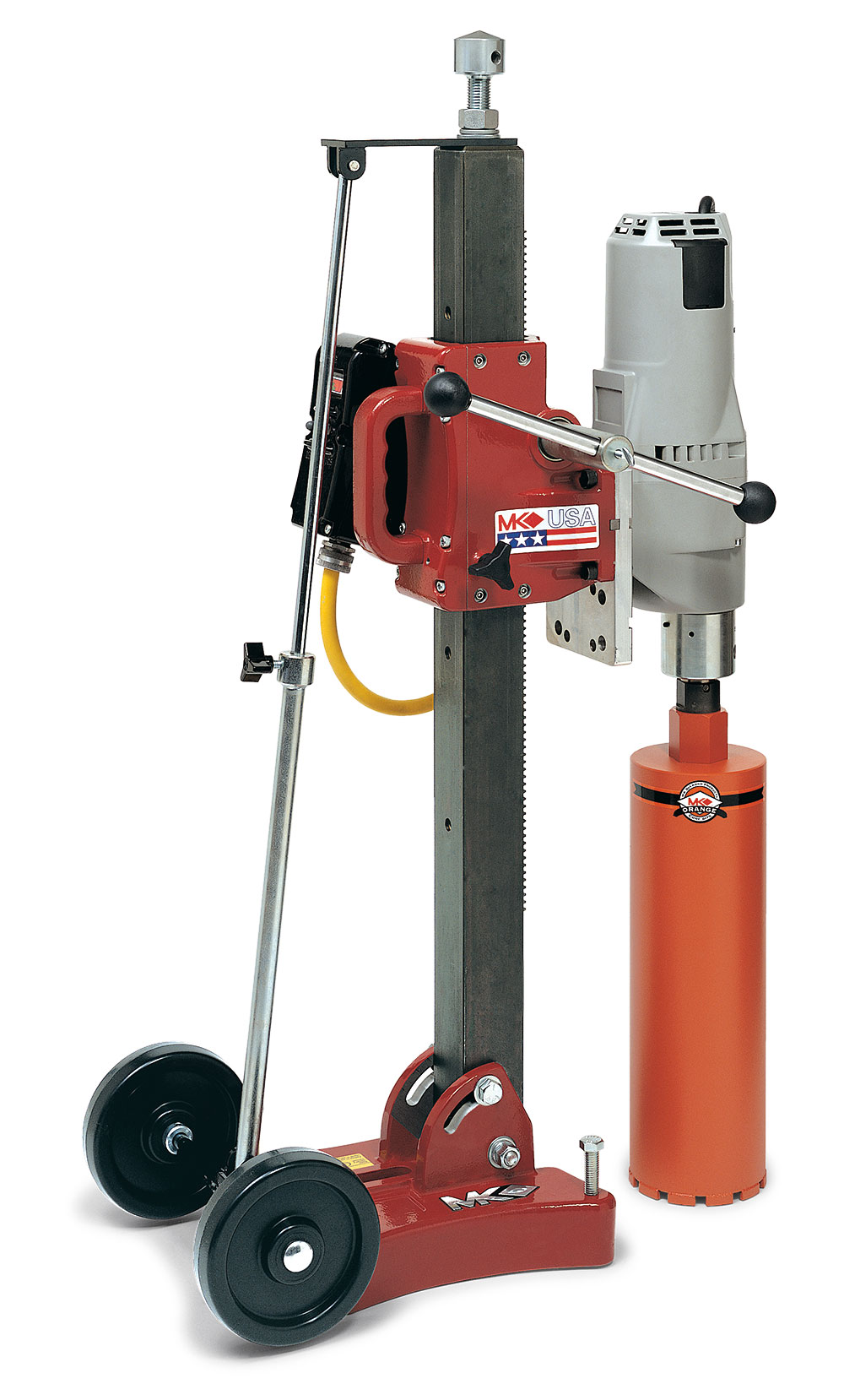

Manta® III Anchor Base Drill Stand
Manta III Core Drills feature a precision rack-&-pinion carriage with maintenance-free, double-sealed bearings and a 2-1/2" square steel column with ceiling jack. All Manta drill rigs are engineered for positive anchoring to allow for both vertical and horizontal drilling. The lightweight cast-aluminum base and built-in wheels make the Manta line easy to move and maneuver. The carriage assembly easily detaches from column for transport. Control box comes standard with amp meter and a conveniently located power switch.
- Precision rack-&-pinion carriage with maintenance-free double-sealed bearings

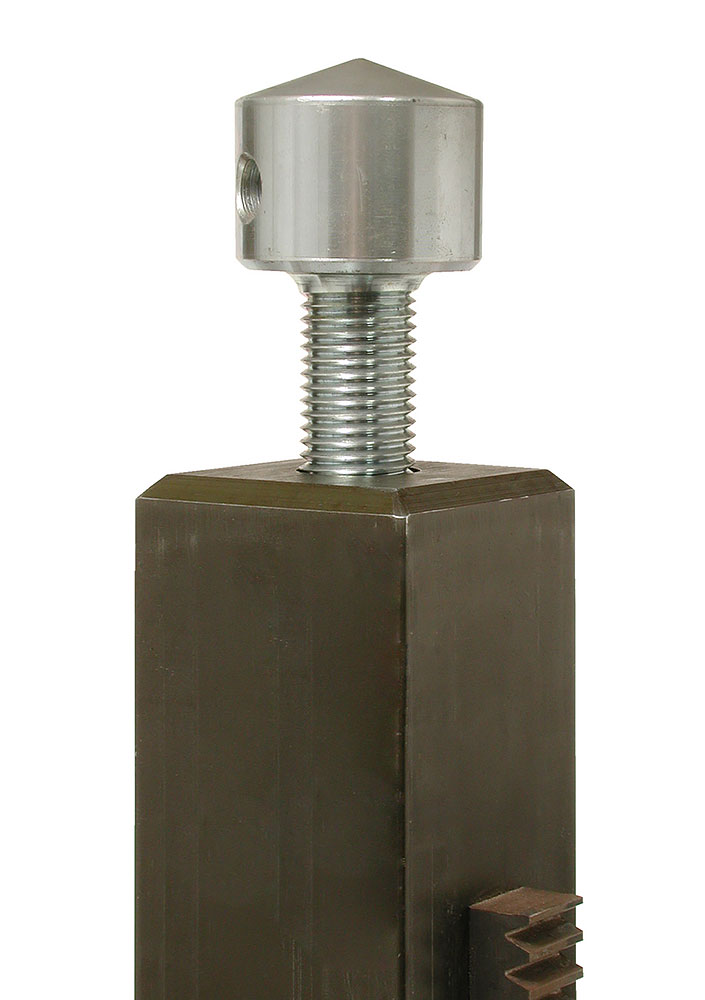

- 2-1/2" steel column with ceiling jack
- Lightweight cast-aluminum base with built-in wheels
- Positive anchoring for vertical & horizontal drilling
- Control box with amp meter
- Two speed Milwaukee motor
- Made in the USA
- One-year limited warranty
| Motor | H.P. | Amps | RPM | Part # |
| Milwaukee 4090 | 2.5 | 15A | 375 - 750 | 167324 |
| Milwaukee 4094 | 4.8 | 20A | 450 - 900 | 167325 |
| Milwaukee 4096 | 4.8 | 20A | 450 - 900 | 167326 |
| Milwaukee 4097-20 | 2.5 | 15A | 500 - 1,000 | 167327 |
| Drill Stand w/o motor & control box | 158424 | |||
| General Specifications | |
| Motor | 120V |
| Bit Capacity | 1/2" to 14" (16" with motor spacer) |
| Bit Feed | 27" |
| Motor Spindle | 1-1/4"-7 |
| Column | 2-1/2" x 2-1/2" adjustable rack and pinion |
| Weight-Combo Base | 109 lbs. (including pump) |
| Weight-Combo Tilt Base | 114 lbs. (including pump) |
| Weight-Anchor Base | 90 lbs. |
| Weight-Anchor Tilt Base | 95 lbs. |
| Size LxWxH | 19" x 24" x 46" |
| Size mm | 480 x 610 x 1,170 |
| Shipping Method | Truck |
| Motor | Amps | Motor Protection |
RPM Range Low/High |
Suggested Diameters in Medium Aggregate |
|
| 4004 | 20A | Clutch | 300 - 600 | Low - 7" - 14" | High - 4" - 7" |
| 4090 | 15A | Shear Pin | 375 - 750 | Low - 5" -8" | High - 2-1/2" - 5" |
| 4094 | 20A | Shear Pin | 450 - 900 | Low - 6" - 10" | High - 2-1/2" - 5" |
| 4096 | 20A | Clutch | 450 - 900 | Low - 6" - 10" | High - 2" - 6" |
| 4097-20 | 15A | Clutch | 500 - 1,000 | Low - 3" - 5" | High - 1-3/4" - 3" |
