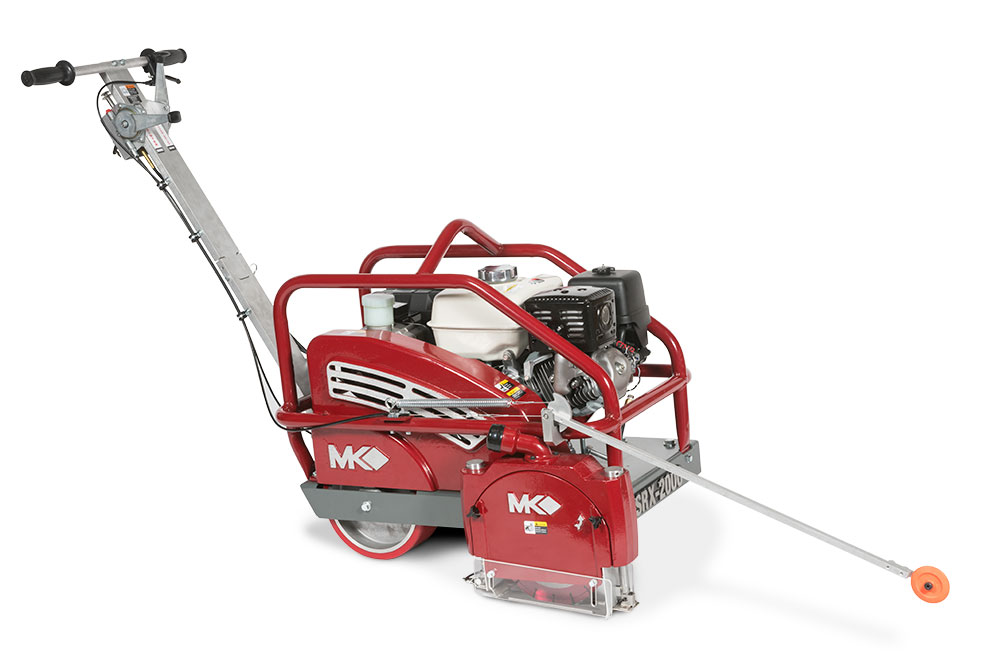

SRX-2000 Series Green Concrete Saws
Manual Parts List Sell Sheet

The self-propelled SRX-2000 dry cutting saw is engineered for early entry sawing of crack control joints within one to two hours of concrete finishing. The blade guard features a vacuum port to control dust when dry cutting. One year limited warranty.

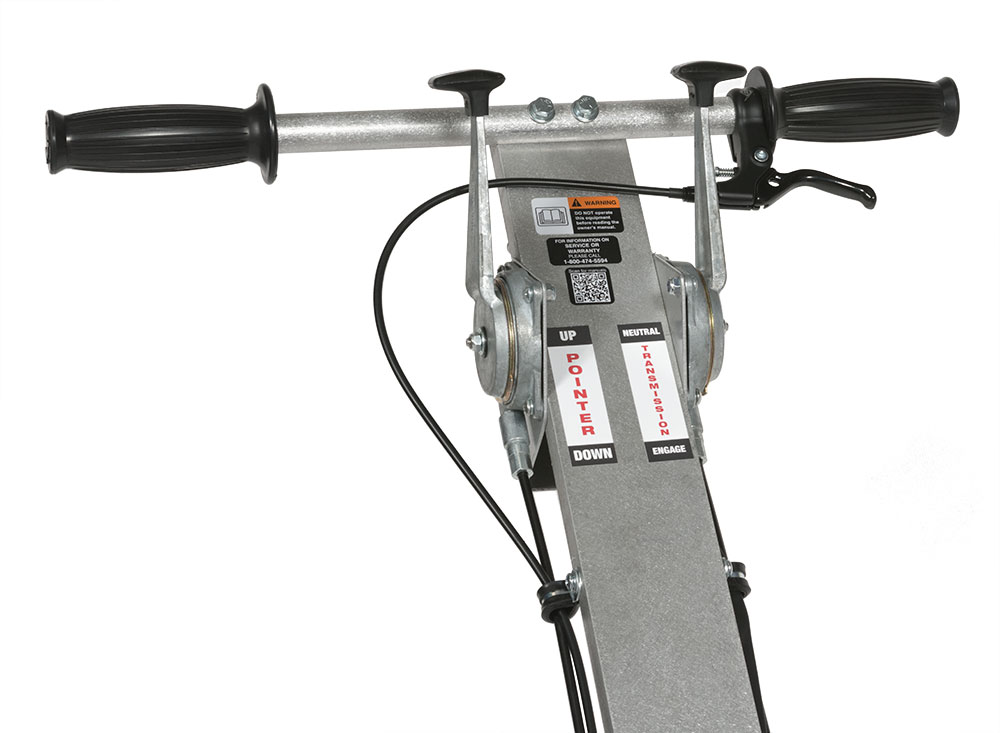

Remote mounted pointer control

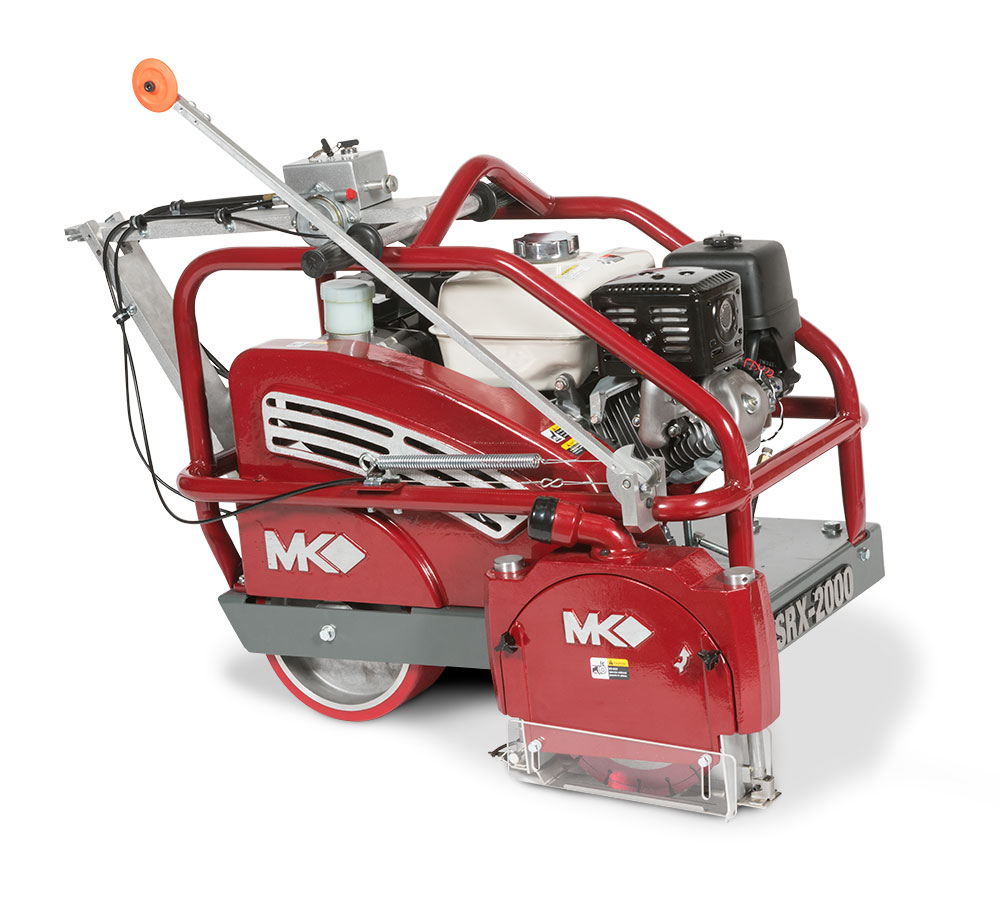

Folding handle bar for compact transport and storage

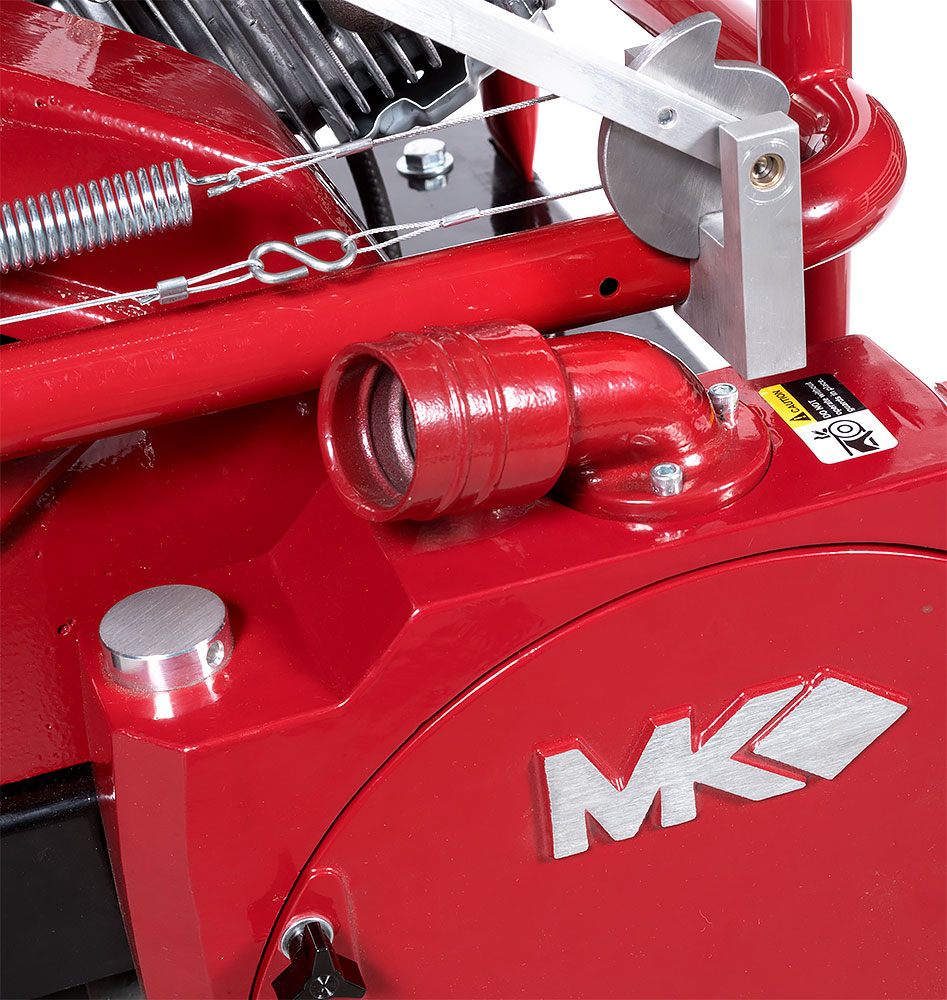

Vacuum port for easy connection to dust control systems

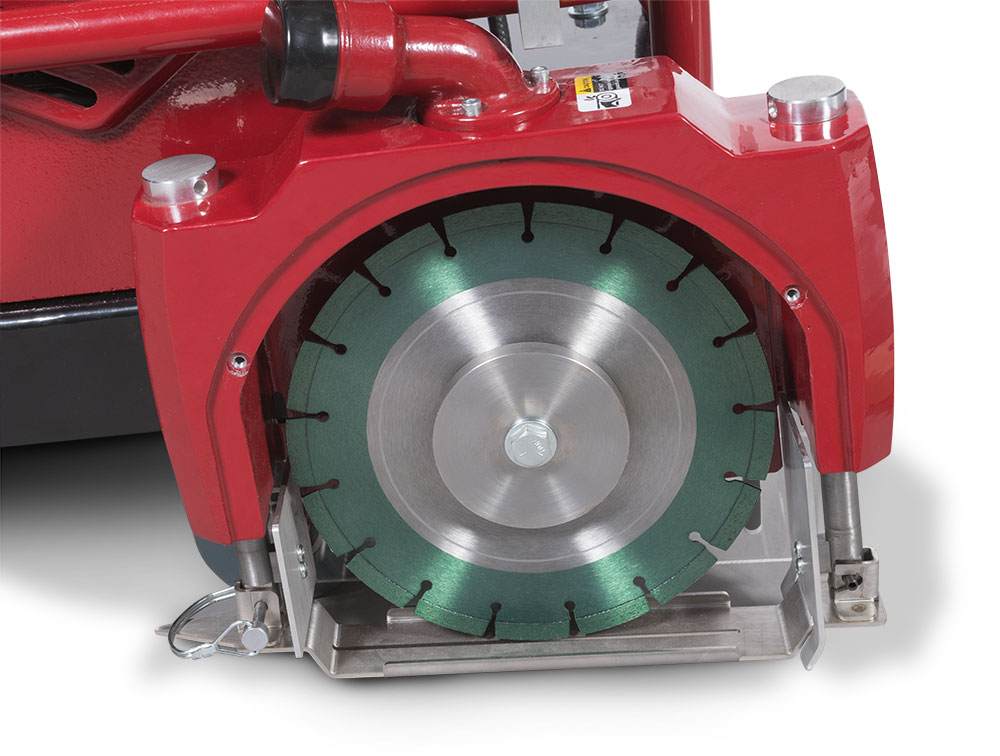

nti-spall, quick change skid plate
  • ˝Upcut" blade rotation facilitates keeping debris out of the joint
  • Triangular shaped arbor
  • Oil-bath blade shaft for maintenance free operations
  • Vacuum port for easy connection to dust control systems
  • Easy release depth control lever
  • Remotely mounted throttle and stop switch for quick operator access
  • Folding handle bar for compact transport and storage
  • Three VX belt drive system
  • Easily removed blade guard cover provides quick access for blade changes and inspection
  • 4-inch wide, polyurethane wheels for non-marking
  • Build-in Tach hour meter
  • Skid plate minimizes joint chipping and spalling
  • Lifting point for easy transport
  • Remote mounted pointer control allows for full operation from the handlebar
Model SRX-2000H SRX-2000HE
Part# 172235 172235-E
Engine GX-270 Cyclone* GX-270*
Starter Pull Electric
Blade Capacity 10" (254 mm) 10" (254 mm)
Depth of Cut 1-5/8" (41 mm) 1-5/8" (41 mm)
Arbor Triangular Triangular
LxWxH (inches) 82" x 24" x 43-1/2" 82" x 24" x 43-1/2"
LxWxH mm) 2,083 x 610 x 1,105 2,083 x 610 x 1,105
Weight 286 lbs. (129.7 kg) 295 lbs. (133. kg)
Blade not included with saw.

Engine power ratings are calculated by the individual engine manufacturer and the rating method may vary among engine manufacturers. MK Diamond Products makes no claim, representation or warranty as to the power rating of the engine on this equipment and disclaims any responsibility or liability of any kind whatsoever with respect to the accuracy or the engine power rating. Users are advised to consult the engine manufacturer's owners manual and website for specific information regarding the engine power rating.
Included Accessories
Skid Plate
Skid Plate
Recommended Blades
