MK-7503 Professional Grade for Cured Concrete
MK-7503 Blade
Laser Welded Icon

For cured concrete with soft aggregate/abrasive sand. The MK-Pro Series is designed and engineered for use on high horsepower, flat saws.

Diameter Width Arbor Part #
12" (305mm) .125" 1" 152154
12" (305mm) .145" 1" 169786
12" (305mm) .187" 1" 169789
14" (356mm) .125" 1" 153972
14" (356mm) .145" 1" 169792
14" (356mm) .155" 1" 154092
14" (356mm) .187" 1" 169798
14" (356mm) .250" 1" 169801
16" (406mm) .125" 1" 169805
18" (457mm) .125" 1" 153980
18" (457mm) .155" 1" 154094
18" (457mm) .187" 1" 169804
20" (508mm) .125" 1" 153984
20" (508mm) .155" 1" 169807
24" (610mm) .145" 1" 169811
24" (610mm) .155" 1" 153990
24" (610mm) .187" 1" 169816
26" (660mm) .155" 1" 169820
26" (660mm) .165" 1" 154095
26" (660mm) .187" 1" 169827
30" (762mm) .165" 1" 169831
30" (762mm) .187" 1" 169835
30" (762mm) .250" 1" 169838
36" (914mm) .187" 1" 169842
36" (914mm) .210" 1" 169846
36" (914mm) .250" 1" 169850
42" (1067mm) .187" 1" 169855
42" (1067mm) .220" 1" 169860
Segment Height 13mm
Wide Notch Core Blades
Diameter Width Arbor Part #
26" (660mm) .165" 1" 169883
26" (660mm) .187" 1" 169889
30" (762mm) .165" 1" 169895
30" (762mm) .187" 1" 169901
30" (762mm) .250" 1" 169907
36" (914mm) .187" 1" 169913
36" (914mm) .250" 1" 169919
42" (1067mm) .187" 1" 169925
42" (1067mm) .220" 1" 169931
Segment Height 12mm
Brazed segments on blades over 24" diameter.
Additional blade diameters, widths, and special
arbors available upon request.

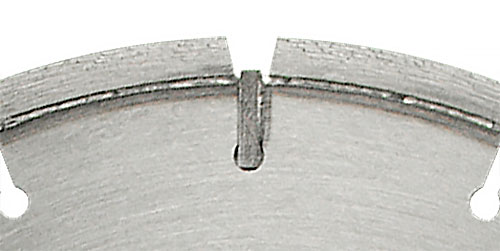

Undercut Protection

Diameters: 14”-42” V Insert
MK-7503 V Insert Undercut Protection
