MK-24 Gas Series Self-Propelled Concrete Saws
Add to Cart Manual Parts List Sell Sheet

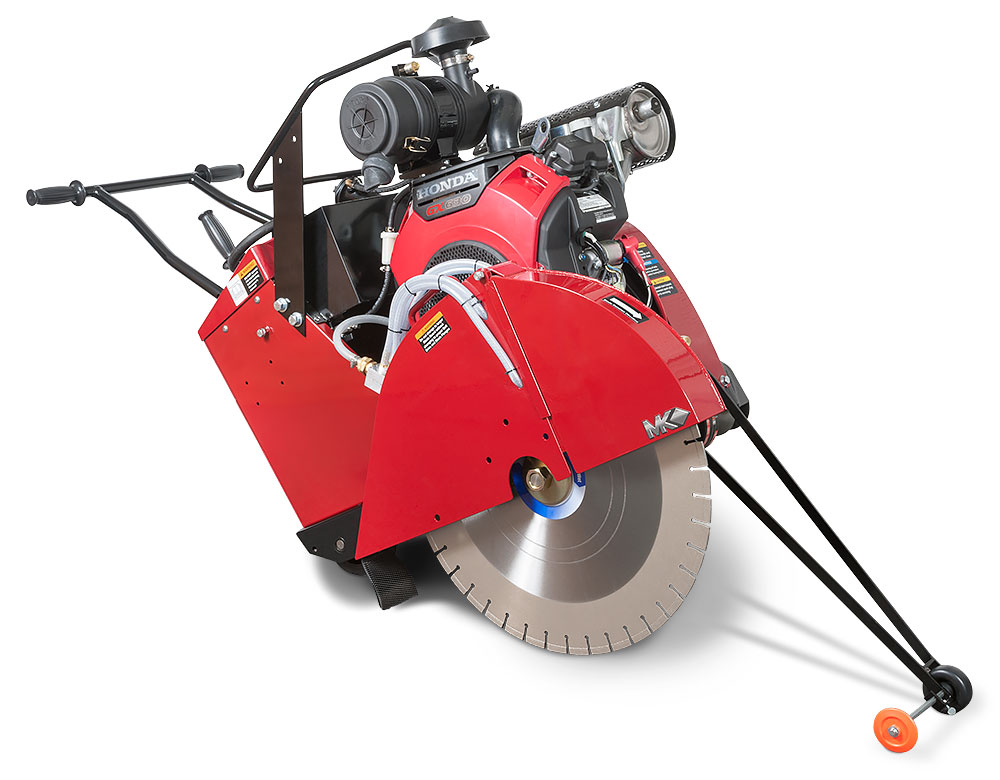

MK-2420HSP Concrete Saw

The MK-24 Series of self-propelled concrete saws have a 1-3/16" blade shaft supported by two self-aligning pillow block bearings. The heavy-duty hydro-static transmission with variable speed drive assists in maintaining precise speed under varying loads. Hard-wearing 6" x 2" non-slip rubber wheels with maintenance-free hubs and roller bearing are used for longevity. The forward and reverse travel speed is 0-80'/minute. One-year limited warranty.

MK-2420HSP

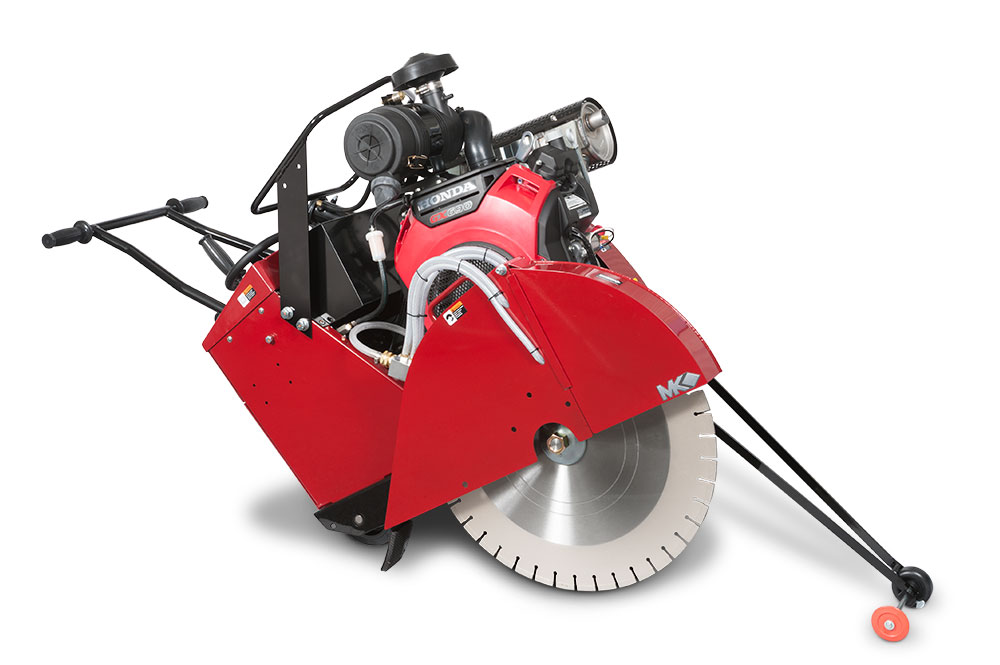

MK-2424HSP
Hinged blade guard
Control panel
Ride-on-the-blade water tubes
Drivetrain
  • One-piece box construction chassis made from 3/16" hot-rolled steel will not flex during operation
  • Powder-coated chassis resists peeling & corrosion
  • 12-gauge steel hinged blade guard
  • Ride-on-the-blade water distribution system supplies water to both sides of blade
  • Blade guard mounts on both left- or right-hand side of saw and cuts within 2" of wall or curb
  • 1-3/16" blade shaft supported by two heavy-duty, self-aligning pillow block bearings
  • Depth control assembly engineered for smooth, controlled blade insertion
  • Built-in tach/hour meter
  • Depth feed gauge indicator
  • Heavy-duty hydro static transmission with variable speed drive
  • Durable 8" x 2 1/4" non-slip rubber wheels with maintenance-free hubs & roller bearing
  • Forward and reverse travel speed: 0-80'/minute
  • One-year limited warranty
Model Engine Part #
MK-2420HSP Honda GX630 170954
MK-2424HSP Honda GX690 170955
General Specifications
Arbor Size 1" (25mm)
Blade Capacity 24" (610mm)
Depth of Cut 9-5/8"
Blade RPM 2,100
Starter Electric
Fuel Capacity 1.6 gallons
Weight 398 lbs.
LxWxH (inches) 49" x 25" x 45"
LxWxH (mm) 1,245 x 635 x 1,143
Blade not included with saw.

Engine power ratings are calculated by the individual engine manufacturer and the rating method may vary among engine manufacturers. MK Diamond Products makes no claim, representation or warranty as to the power rating of the engine on this equipment and disclaims any responsibility or liability of any kind whatsoever with respect to the accuracy or the engine power rating. Users are advised to consult the engine manufacturer's owners manual and website for specific information regarding the engine power rating.
Included Accessories
Lifting Bail
Lifting Bail
Tach/Hour Meter
Tach/Hour Meter
