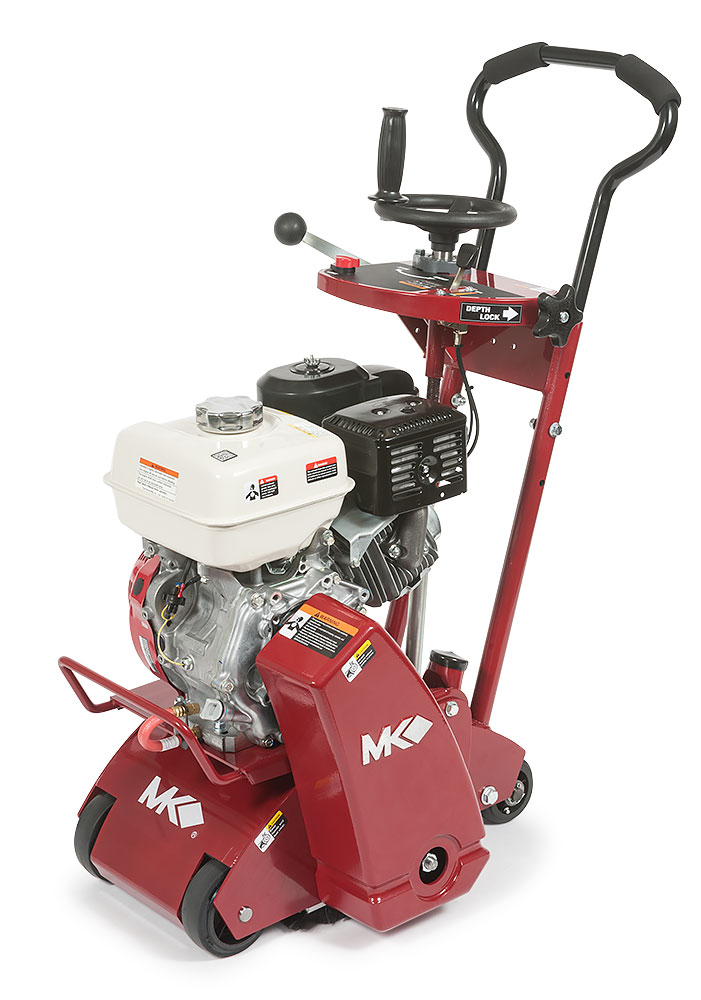

SG-13 Gas Scarifiers
MK Scarifiers have been designed to leave a clean, textured or rough finish on any type of concrete or asphalt surface. Drums are available to provide cleaning, texturing, leveling, grooving and paint removal. The unique engage/disengage lever allows the operator to raise and lower the drum without losing the depth setting. Drums are interchangeable and provide for fast and easy changeover.
- Designed for scarifying, roughening, planing, leveling, smoothing, or creating grooves in concrete surfaces
- Can be used to remove paint or coatings, and to clean and prepare concrete surfaces prior to coating, re-coating, and floor covering installation
- Rugged sand casting and heavy gauge steel construction
- Precision adjustable depth control
- Engage/disengage lever allows operator to raise and lower the cutter drum without changing depth setting
- Quick-change drum
- Depending on cutting wheel style, production rate varies from 350 to 500 square feet per hour for a 1/8-inch removal depth
- One-year limited warranty
| Drum Configurations | |
| 5 Point Carbide Drum | 158941 |
| 6 Point Carbide Drum | 158942 |
| 18 Point Steel Drum | 158943 |
| 12 Point Steel Drum | 158944 |
| Blank Drum (no cutters) | 158532 |
| Specifications | |
| Engine* | Honda GX390 |
| Weight (including drum) | 170 lbs. (77 kg) |
| Drum Dimensions (Dia. x L) | 6" x 8" |
| Drum Weight | 30 lbs. (14 kg.) |
| LxWxH (inches) | 23" x 20" x 43" |
| LxWxH (mm) | 813 x 508 x 1,092 |
Five Tooth Carbide Tip Star
- Used for grinding, leveling, grooving, cleaning, and preparing concrete
- Five-point carbide tips (1-3/4" OD x 5/8" ID)
- Longer life than steel tooth cutters, average of 6000 to 8000 square feet
- Maximum cutting rate is 1/8" per pass
Six Tooth Carbide Tip Star
- Used for grinding, leveling, grooving, cleaning, and preparing concrete
- Six-point carbide tips (1-3/4" OD x 5/8" ID)
- Exceptional life, average of 8000 to 10000 square feet
- Maximum cutting rate is 1/8" per pass
18 Tooth Steel Sharp Tooth Cutter
- Used for general cleaning of concrete or asphalt including removal of paint, epoxy, urethane, adhesive, and heavy dirt, grease and oil deposits
- 18 tooth hardened steel, (2" OD x 5/8" ID)
- Average life of 500 to 800 square feet
- Maximum cutting rate is 1/16" per pass
12 Tooth Steel Blunt Tooth Cutter
- Used for paint and oil removal, traffic and shop floor safety-line removal, cleaning and concrete preparation
- 12 tooth, hardened steel (2" OD x 9/16" ID)
- Average life of 500 to 800 square feet
- Maximum cutting rate is 1/16" per pass
Engine power ratings are calculated by the individual engine manufacturer and the rating method may vary among engine manufacturers. MK Diamond Products makes no claim, representation or warranty as to the power rating of the engine on this equipment and disclaims any responsibility or liability of any kind whatsoever with respect to the accuracy or the engine power rating. Users are advised to consult the engine manufacturer's owners manual and website for specific information regarding the engine power rating.
Optional Accessories
