MK-660 3/4 HP, 7" Wet Cutting Tile Saw
MK-660 Tile Saw
MK-660 Features:
Made in the USA
Ultra-quiet 3/4 HP direct drive DC motor with blade braking system
Variable height cutting head allows for plunge cutting and use of blades smaller than 7" in diameter.
Chrome guide-bar and linear-bearing assembly ensure precise alignment and precision cutting
Lightweight aluminum cast components for rigidity and strength
One-piece reinforced zinc-plated steel frame with carrying handles
Hinged blade guard for easy blade changes and maintenance inspections
Removable thermoplastic water reservoir
7" diamond blade & submersible water pump included
One-year limited warranty
Motor Electric
Power 3/4 HP, 120V
Blade RPM 3,500
Blade Capacity 7" (178mm)
Arbor Size 5/8" (16mm)
Depth of Cut (7" blade) 2" (51mm)
Length of Cut 14"
Diagonally Cuts 10" Tile
Weight 48 lbs. (21.7 kg)
LxWxH (inches) 27" x 21" x 16"
LxWxH (mm) 686 x 533 x 406
Shipping Method UPS / Fed-Ex
Part # 153330
Available with 220V/50 HZ motor.

Accessories Included with the MK-660
7" Wet Cutting Diamond Blade
Water Pump
Rip Guide
Optional Accessories
45º Miter
90º Protractor
Cutting Kit
Dressing Stone
Dual Flat 45º Angle Guide
Ground Fault Interrupter
Folding Stand
Folding Stand with Casters

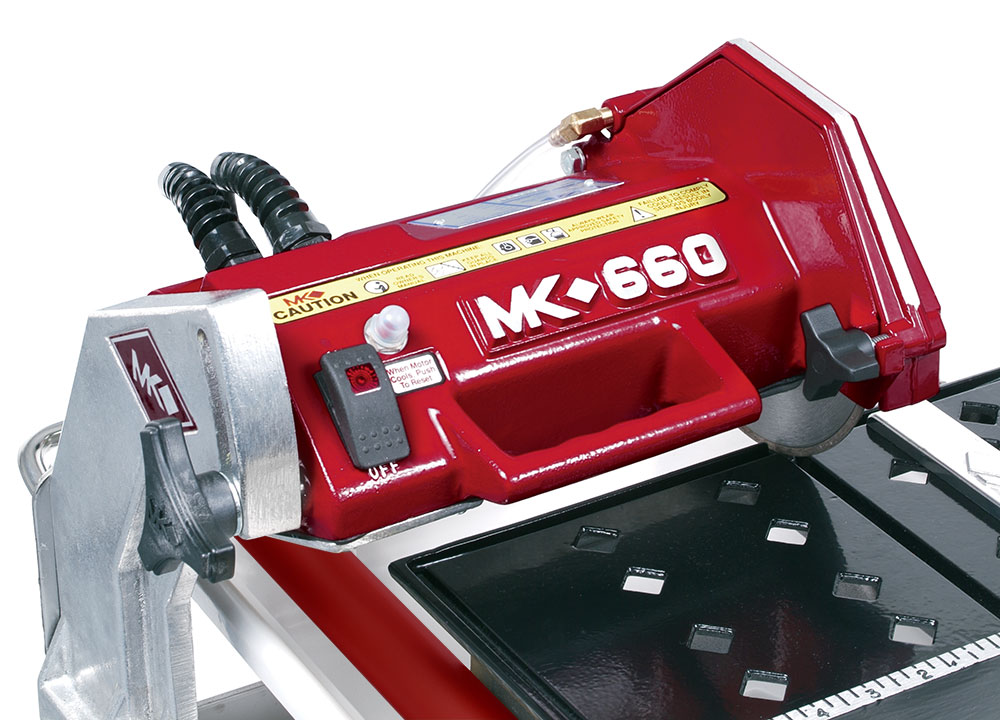

Fully enclosed, very quiet direct drive motor.

Variable height cutting head allows for plunge cutting and use of blades smaller than 7" in diameter.

Linear guide-bar system.

MK-660 Hinged Blade Guard
Hinged blade guard for easy blade changes.
660 PDF     Manual
