MK-377EXP Tile Saw

The MK-377EXP is built with a linear guide bar system that ensures precision cutting of tile materials including ceramic, travertine and slate. A hinged blade guard allows for easy blade changes and its thermoplastic water reservoir will not rust or bend out of shape. MK-377EXP includes a 7" diamond blade, water pump, wrenches and a rip guide. One-year limited warranty.

  • High-torque, universal motor. Runs on standard house current and draws only 5 amps at 120V
  • Engineered for cutting ceramic, travertine, & slate

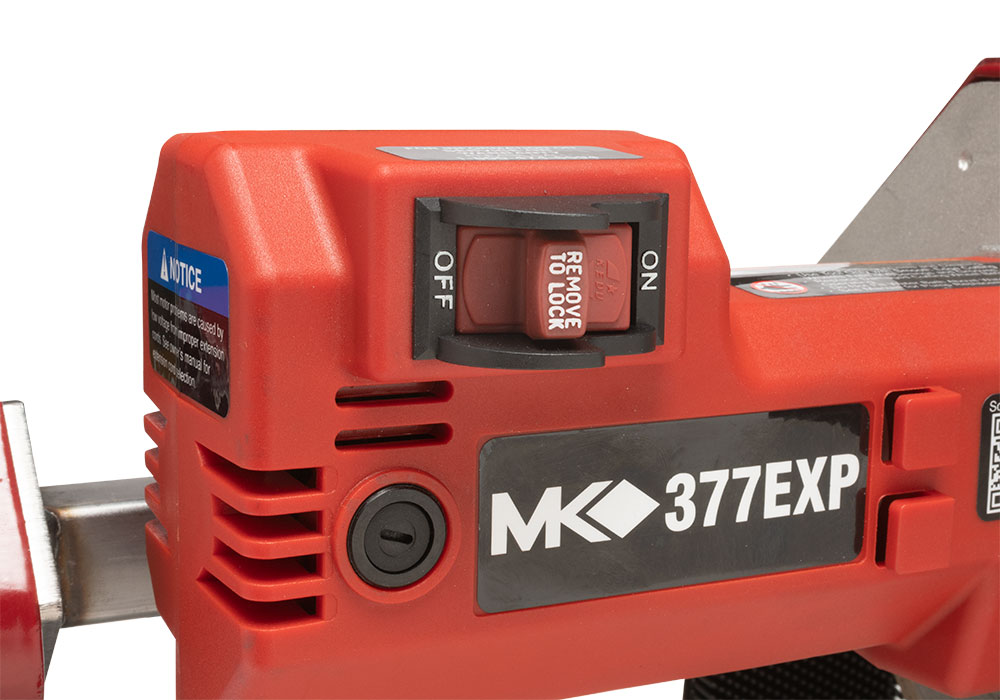

  • MK-Safeswitch™ prevents saw from being operated when locking key is removed
  • Chrome guide-bar and linear bearing assembly ensures accurate tracking and alignment
  • Single piece zinc-plated steel frame for rigidity, strength and durability

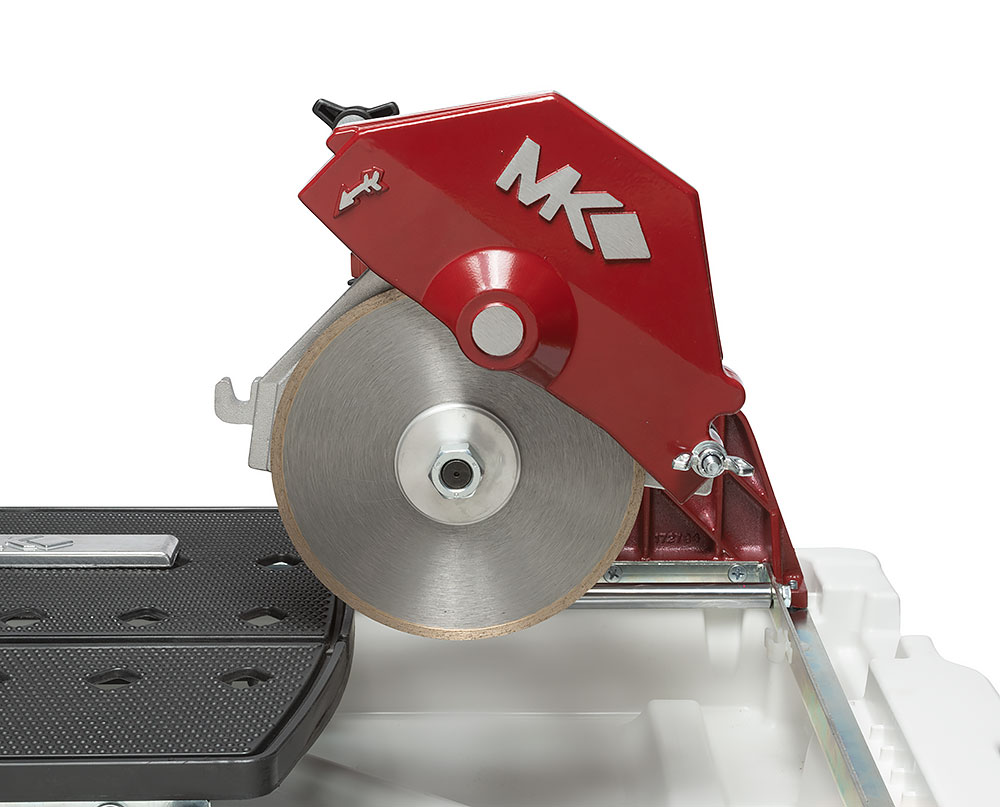

  • Hinged blade guard for easy blade changes
  • Fully submersible, thermally protected water pump
  • High-impact removable thermoplastic water reservoir that will not rust or bend out of shape
  • Includes 7" diamond blade, water pump, wrenches and rip guide
  • One-year limited warranty
Part # 160028
Voltage 120V
Horse Power 1/2 hp
Amps 5
RPM 5,500
Blade Capacity 7" (178mm)
Arbor Size 5/8" (16mm)
Depth of Cut 2" (51mm)
Length of Cut 18"
Diagonally Cuts 13" Tile
Weight 27 lbs. (12.2 kg.)
LxWxH 33" x 19" x 13"
Shipping Method UPS / Fed-Ex

Warning IconWarning: Use of this equipment can expose you to chemicals including nickel and crystalline silica which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. Repeated and/or substantial inhalation can cause serious or fatal respiratory diseases including silicosis. Employ dust controls and protection per OSHA/NIOSH/MSHA
Click on thumbnails for enlarged images.
High-torque, universal motor MK Safeswitch Hinged blade guard for easy blade changes Chrome guide-bar and linear bearing assemble Sliding table
Accessories Included with the MK-377EXP
7 inch Wet Cutting Diamond Blade 7" Wet Cutting Diamond Blade

Water Pump Water Pump

Rip Guide Rip Guide
Optional Accessories
90 Degree Protractor 90º Protractor

Dual Flat 45 Degree Angle Guide Dual Flat 45º Angle Guide

Dressing Stone Dressing Stone

Ground Fault Circuit Interrupter Ground Fault Interrupter

Folding Stand Folding Stand
