MK-370EXP 1-1/4 HP, 7" Wet Cutting Tile Saw
MK-370EXP Tile Saw
MK-370EXP Features:
Powerful high-torque motor
Maintenance-free, self-lubricating pinion and gear-box assembly
Tilting head allows for precise 45º miter cuts
Variable height cutting head allows for plunge cutting.
Sliding aluminum die-cast cutting table rips 18" tile
3/4" diameter chrome-plated linear guide-bar system
Single piece zinc-plated steel frame for rigidity, strength and durability
Hinged blade guard for easy blade changes
Heavy duty on/off switch
Built-in water pump receptacle
Removable thermoplastic water reservoir
MK-Safeswitch™ prevents saw from being operated when locking key is removed
7" diamond blade & submersible water pump included
CSA Approved
One-year limited warranty
Motor Electric
Power 1-1/4 HP, 120V
Amps 7.4
Motor RPM 6,000
Blade Capacity 7" (178mm)
Arbor Size 5/8" (16mm)
Depth of Cut 2" (51mm)
Depth of Cut at 45° 1-1/8" (32mm)
Length of Cut 18"
Diagonally Cuts 13" Tile
Weight 33 lbs. (15kg)
LxWxH (inches) 33" x 19" x 20"
LxWxH (mm) 838 x 483 x 508
Shipping Method UPS / Fed-Ex
Part # 159943

Accessories Included with the MK-370EXP
7" Wet Cutting Diamond Blade
Water Pump
Rip Guide
Optional Accessories
45º Miter
90º Protractor
Cutting Kit
Side Table
Dressing Stone
Dual Flat 45º Angle Guide
Folding Stand
Ground Fault Interrupter

MK-370 EXP  45 degree miter system.
Built-in 45º-miter system.

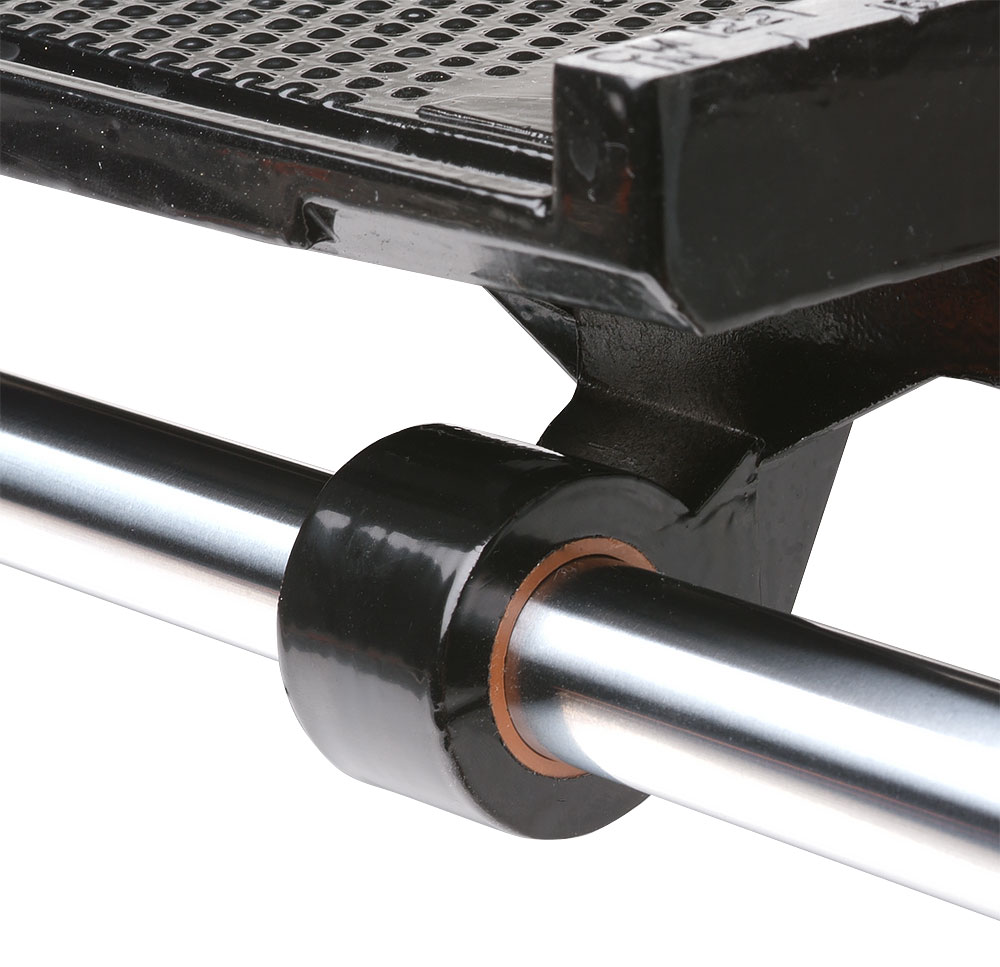

MK-370 EXP Conveyer Cart
Conveyor cart runs on chrome-plated guide-bar.

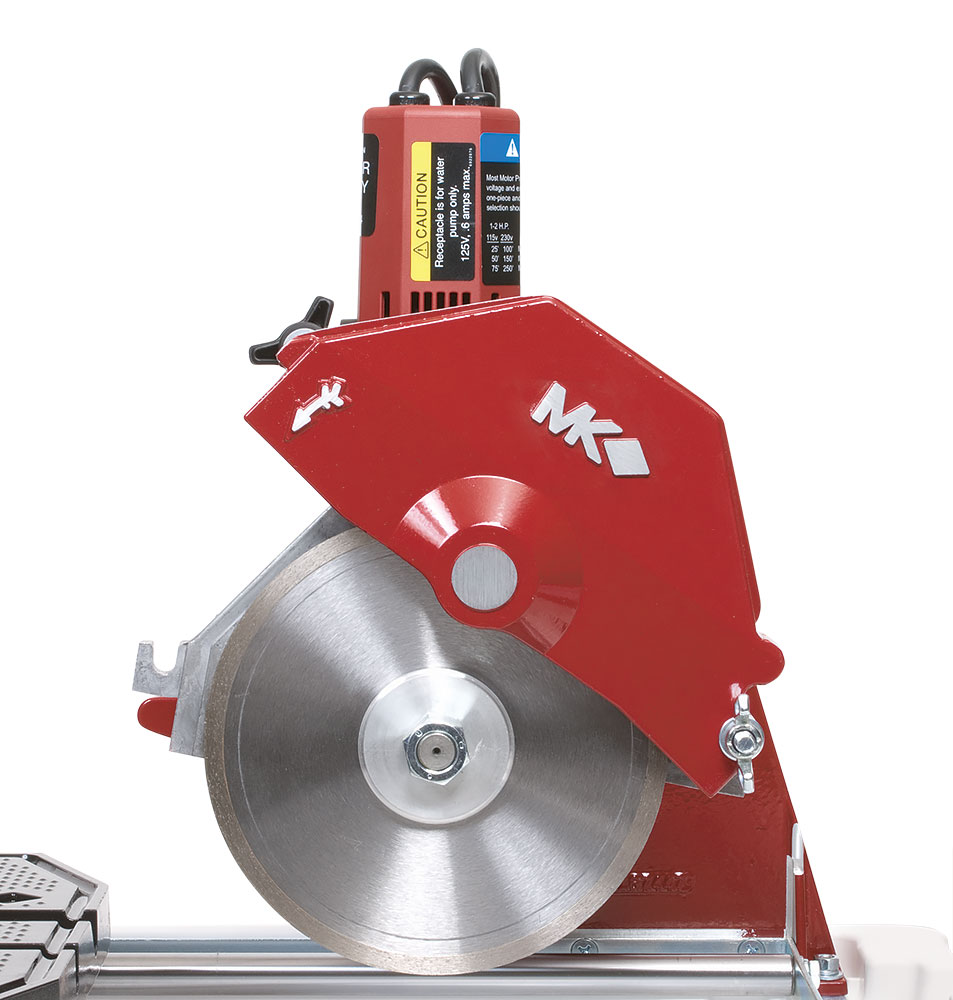

MK-370 EXP  Blade Guard
Hinged blade guard for easy blade changes.
