MK-101 Pro24 JCS Tile Saw

The MK-101 Pro24 JCS has all the features of the MK-101 but with an extended frame that allows the cutting of tiles up to 24" in length and an integrated stand that allows operator to set up or transport in a matter of seconds.

In addition it is equipped with an aluminum table with nonslip molded neoprene surface. The permanently lubricated blade shaft bearings provide years of maintenance-free operation. The blade guard has been engineered to provide optimal water flow and is wide enough to accommodate a profile wheel.

  • Integrated stand allows operator to set up or transport in a matter of seconds
  • Solid rubber heavy-duty wheels won't scuff floors
  • Designed for easy transport, loading and storage by one person
  • Integrated gas shocks help handle the weight of the saw during setup and breakdown
  • Wheel latches prevents stand from moving during operation
  • Commercial grade, fully enclosed, high torque, fan-cooled motor
  • Easy access, heavy-duty 30 amp switch box
  • Permanently lubricated, dual-sealed, heavy-duty blade shaft bearings
  • Multi-position motor post and cutting head allows saw to be configured for convenient cutting of both large and small tiles
  • Extended heavy-duty motor post provides a 13" throat depth
  • Built-in water distribution system supplies water to both sides of blade
  • Variable height cutting head allows for plunge cuts
  • Accommodates 6" and 8" profile wheels
  • Micro V-belt drive for maximum horsepower transfer from motor to blade
  • Blade shaft lock for easy blade removal
  • Linear-bearing and chrome plated guide-bar assembly ensure precise cutting
  • Cast aluminum table with non-slip molded neoprene surface
  • Cast aluminum blade guard and motor post
  • One-piece reinforced zinc-plated steel frame
  • High volume water pump
  • Made in the USA
  • One-year limited warranty
Part # 153243-JCS
Voltage 120V
Horse Power 1-1/2 hp
Blade RPM 3,450
Blade Capacity 10" (254mm)
Arbor Size 5/8" (16mm)
Depth of Cut 3" (76mm)
Length of Cut 24"
Diagonally Cuts 18" Tile
Weight 156 lbs. (71 kgs.)
LxWxH 48" x 24" x 29"
LxWxH (mm) 1,219 x 610 x 737
Shipping Method Truck
CSA Approved
Motors available in other electrical configurations.

Warning IconWarning: Use of this equipment can expose you to chemicals including nickel and crystalline silica which are known to the State of California to cause cancer. For more information go to Repeated and/or substantial inhalation can cause serious or fatal respiratory diseases including silicosis. Employ dust controls and protection per OSHA/NIOSH/MSHA
Click on thumbnails for enlarged images.

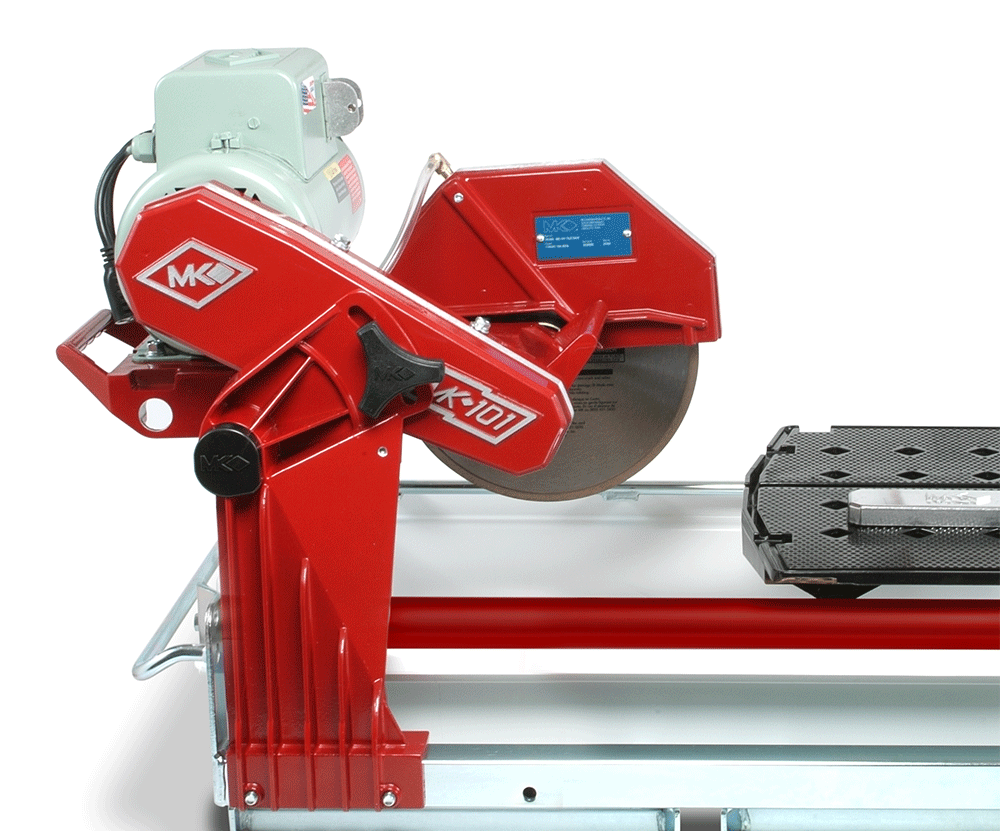

Two-position motor post and two-position cutting head Micro V-belt drive Variable height cutting head

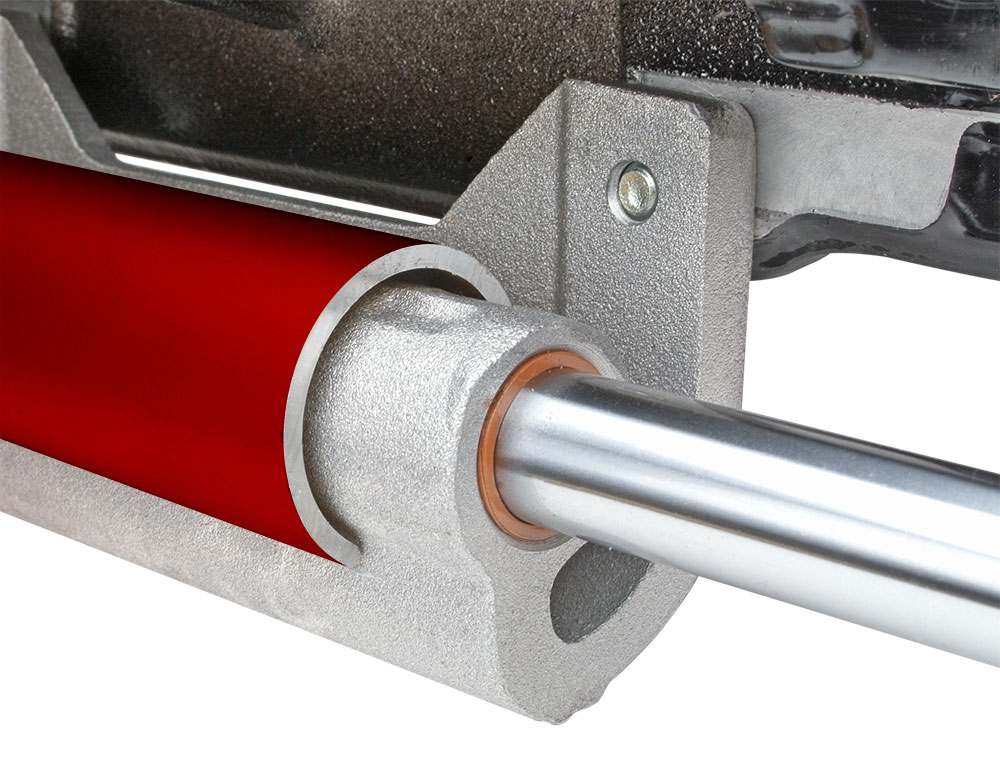

"Pivoting blade guard Lockable blade shaft Chrome-plated guide-bar and linear-bearing assembly
MK-101 pro24 JCS folded for transport
Accessories included with MK-101 Pro Saws
MK-225 HotDog Blade 10" MK-225 HotDog Blade

Water Pump Water Pump

Large Rip Guide Large Rip Guide

45 Degree Bullnose Miter 45º Bullnose Miter

90 Degree Protractor 90° Protractor

Dual 45 Degree Flat Angle Guide Dual 45° Flat Angle Guide

Dressing Stone Dressing Stone

Side Extension Table Side Extension Table
Optional Accessories
Ground Fault Circuit Interrupter Ground Fault Interrupter

Profile Wheels Profile Wheels

Saw Tent Saw Tent
