MK-101 Tile Saw

The MK-101 features a powerful, high torque, fan-cooled motor and one-piece unitized steel frame. The linear guide bar system provides precise cutting on the entire length of the cut. The blade guard has been engineered to provide optimal water flow and is wide enough to accommodate a profile wheel.

  • Commercial grade, fully enclosed, high torque, fan-cooled motor
  • Permanently lubricated, dual-sealed, heavy-duty blade shaft bearings
  • Multi-position motor post and cutting head allows operator to configure saw for convenient cutting of both large and small tiles
  • Built-in water distribution system supplies water to both sides of blade
  • Variable height cutting head allows for plunge cuts
  • Accommodates 6" and 8" profile wheels
  • Micro V-belt drive for maximum horsepower transfer from motor to blade
  • Blade shaft lock for easy blade removal
  • Linear-bearing and chrome plated guide-bar assembly ensure precise cutting
  • Cast aluminum blade guard and motor post
  • One-piece reinforced zinc-plated steel frame
  • Made in the USA
  • CSA Approved.
  • One-year limited warranty
Part # 151991
Voltage 120V
Horse Power 1-1/2 hp
Blade RPM 3,450
Blade Capacity 10" (254mm)
Arbor Size 5/8" (16mm)
Depth of Cut 3" (76mm)
Length of Cut 20"
Diagonally Cuts 14" Tile
Weight 92 lbs. (42 kgs.)
LxWxH 36" x 22" x 23"
LxWxH (mm) 914 x 559 x 584
Shipping Method UPS / Fed-Ex
Motors available in other electrical configurations.

Warning IconWarning: Use of this equipment can expose you to chemicals including nickel and crystalline silica which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. Repeated and/or substantial inhalation can cause serious or fatal respiratory diseases including silicosis. Employ dust controls and protection per OSHA/NIOSH/MSHA
Click on thumbnails for enlarged images.

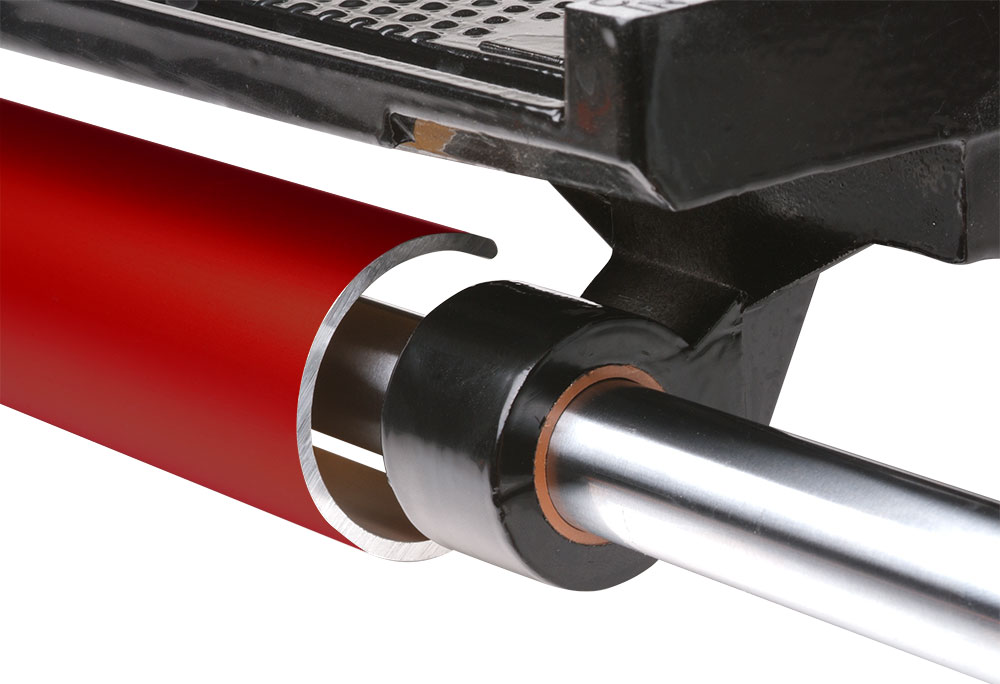

Two-position motor post and two-position cutting head Micro V-belt drive Lockable blade shaft Variable height cutting head Chrome-plated guide-bar and linear-bearing assembly
Accessories Included with the MK-101
Wet Cutting Diamond Blad 10" Wet Cutting Diamond Blade

Water Pump Water Pump

Large Rip Guide Large Rip Guide

45 Degree Bullnose Miter 45º Bullnose Miter
Optional Accessories
90 Degree Protractor 90º Protractor

Dual Flat 45 Degree Angle Guide Dual Flat 45º Angle Guide

Dressing Stone Dressing Stone

Ground Fault Circuit Interrupter Ground Fault Interrupter

Profile Wheels Profile Wheels

Side Extension Table Side Extension Table

Saw Tent Saw Tent

Folding Stand Folding Stand

Folding Stand with Casters Folding Stand with Casters
