MK Bridge Saws
MK Bridge Saw Features:
- Industrial 3 HP direct drive motor, engineered for optimum blade shaft RPM
- Rail cutting-head assembly is supported by 8 double-sealed maintenance-free bearings to ensure accurate and smooth tracking
- Adjustable miter design permits angle cuts from 90º to 45º
- Built-in protractor for setting miter angle.
- Die-cast aluminum components reduce weight without compromising structural integrity
- Lift-out cutting table for easy cleaning
- Built-in carrying handles for easy transportation
- Includes wet cutting diamond blade, water pump and 12" cutting guide
- One-year limited warranty
MK Bridge Saws are special order items. Please call MK Diamond for additional information.
| Model |

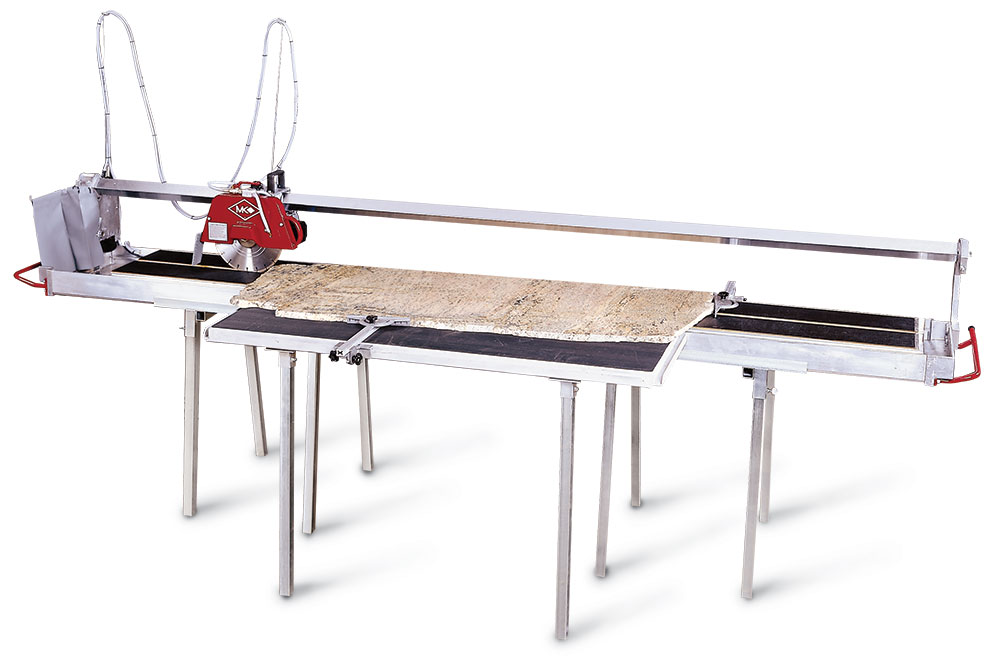

MK-312-10 |

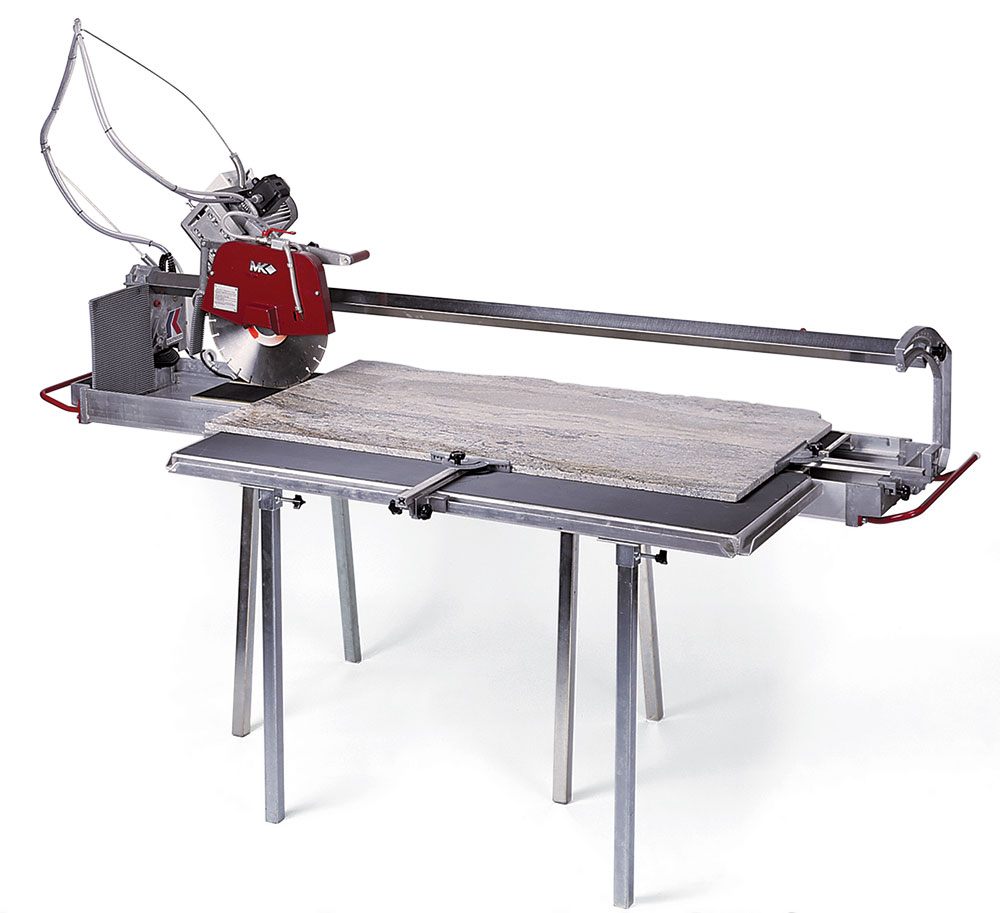

MK-412-6.6 |

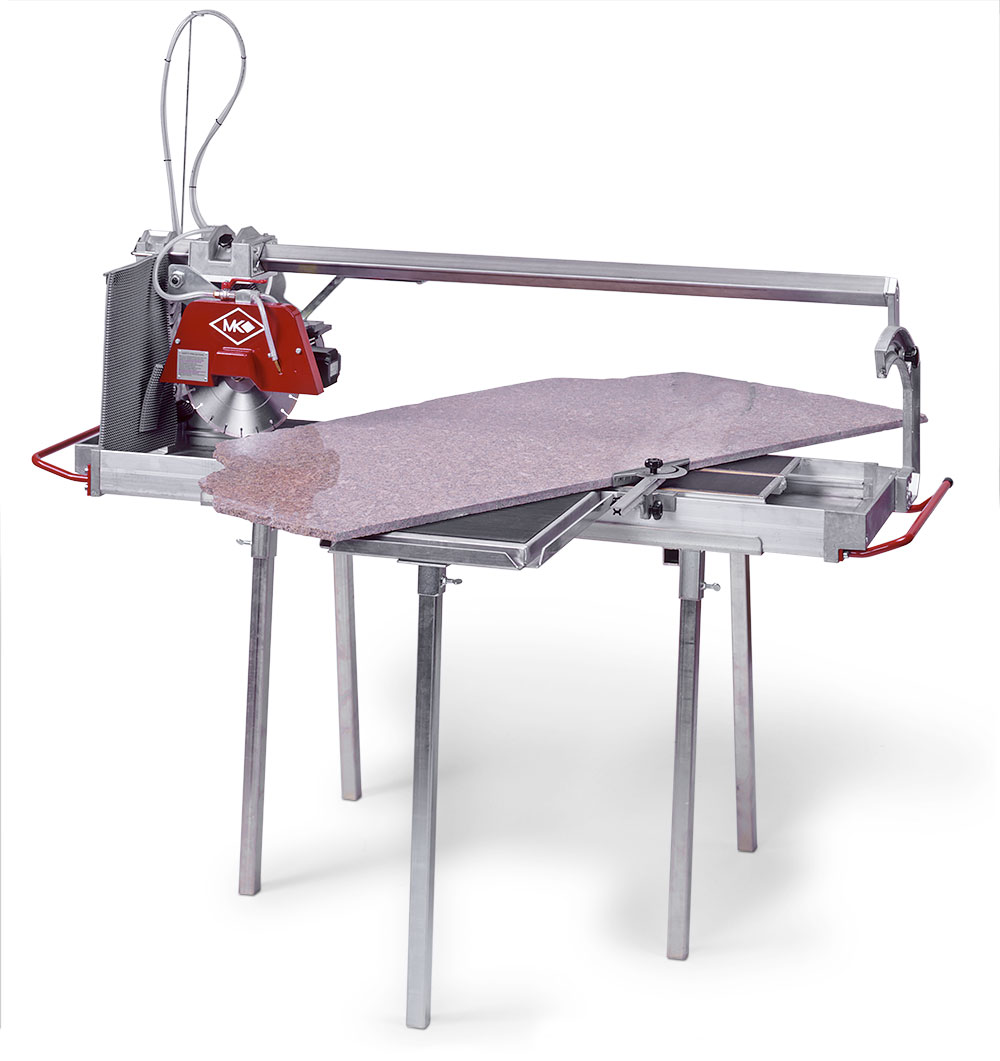

MK-512-6 Classic |
| Motor |
3 HP, 230V |
3 HP, 230V |
3 HP, 120V |
| Blade RPM |
3,350 |
3,350 |
3,350 |
| Blade Capacity |
12" (305mm) |
16" (406mm) |
12" (305mm) |
| Arbor |
1" (25mm) |
1" (25mm) |
1" (25.4mm) |
| Length of Cut |
10' (3.04m) |
6' 6" (1.83m) |
5' (1,829mm) |
| Depth of Cut |
3-1/4" (82mm) |
6" (152mm) |
3-1/8" (80mm) |
| Depth of Cut at 45º |
2-1/4" (57mm) |
3-3/4" (96mm) |
2-3/8" (60mm) |
| Head Height |
Fixed |
Adjustable |
Adjustable |
| Max. Blade Dia. |
12" |
16" |
12" |
| Blade Included |
12" |
16" |
12" |
| Weight |
400 lbs. (191kgs) |
213 lbs. (96.5kgs) |
249 lbs. (113kgs) |
| LxWxH (inches) |
135" x 18" x 19" |
87" x 18" x 19" |
87" x 18" x 19" |
| LxWxH (mm) |
3,429 x 457 x 482 |
2,201 x 457 x 482 |
2,201 x 457 x 482 |
| Shipping Method |
Truck |
Truck |
Truck |
| Part # |
151735 |
152709 |
160661 |
|
|
| Optional Accessories |
| Saw Stands |
|
 |
| 50" Stand |
151329 |
|
| 32" Stand |
151330 |
|
|
|
|
|
|
|
| Side Tables |
|
 |
| 16 x 20 Table |
151331 |
|
| 32 x 20 Table |
151348 |
|
| 60 x 20 Table |
151349 |
|
|
|
|
|
|
|
| Cutting Guide |
|
 |
| 12" Guide |
151916 |
|
| |
|
|
|
|
|
|
|
|
|
|
