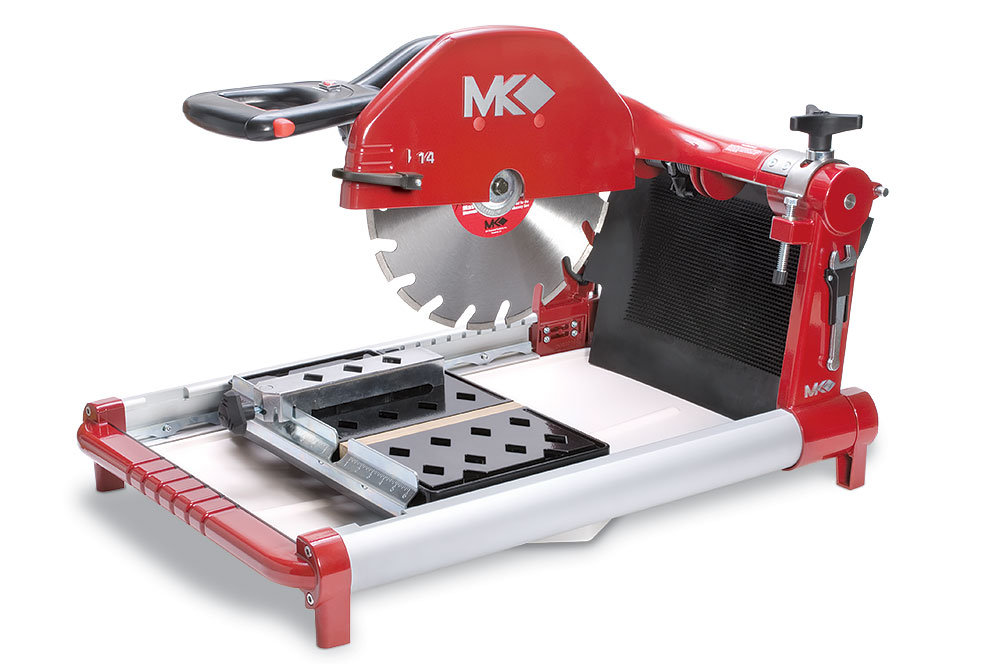

BX-4 Wet & Dry Cutting Masonry Saws

The BX-4 uses a patent pending misting system to control dust generated during cutting. The ergonomically designed handle allows for easy operation and control for either left or right handed cutting. Unique features include a removable plastic tray and a locking table. The adjustable depth stop prevents cutting through the table. One-year limited warranty.

  • Portable and lightweight
  • Open-back design allows for material up to 16" long to be cut
  • Easy to grip nylon handle with built-in lockable trigger switch
  • Water misting dust control system
  • Plastic dust collection pan
  • Replaceable dust filter
  • Built-in table lock
  • Spring-loaded, adjustable height cutting head
  • Heavy-duty cast aluminum rolling conveyor cart
  • 14" dry cutting diamond blade and rip guide included
  • One-year warranty
Model BX-4 Misting BX-4 Dry
Part # 165486 162761
Voltage 120V 120V
Amps 15 15
Horse Power 1-3/4 1-3/4
Amps 15 15
Blade RPM 3,500 3,500
Blade Capacity 14" (356mm) 14" (356mm)
Arbor Size 1" (25mm) 1" (25mm)
Max. Material Size 8" x 8" x 16" 8" x 8" x 16"
Depth of Cut 5" (127mm) 5" (127mm)
Length of Cut 16" (406mm) 16" (406mm)
L x W x H 35" x 24" x 21" 35" x 24" x 21"
L x W x H (mm) 889 x 610 x 533 889 x 610 x 533
Weight 70 lbs. (32 kg.) 70 lbs. (32 kg.)
Shipping Method UPS / Fed-Ex UPS / Fed-Ex

Warning IconWarning: This equipment contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. These chemicals are contained in various components. fluids and paint including but not limited to fuel, oil, electric motors and batteries. In addition, gasoline/diesel powered equipment emits engine exhaust and fumes, and when serviced, cleaned or maintained generate used oil, waste fluids, fumes, grease, grime and particulates from the component wear and silica dust which contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Click on thumbnails for enlarged images.

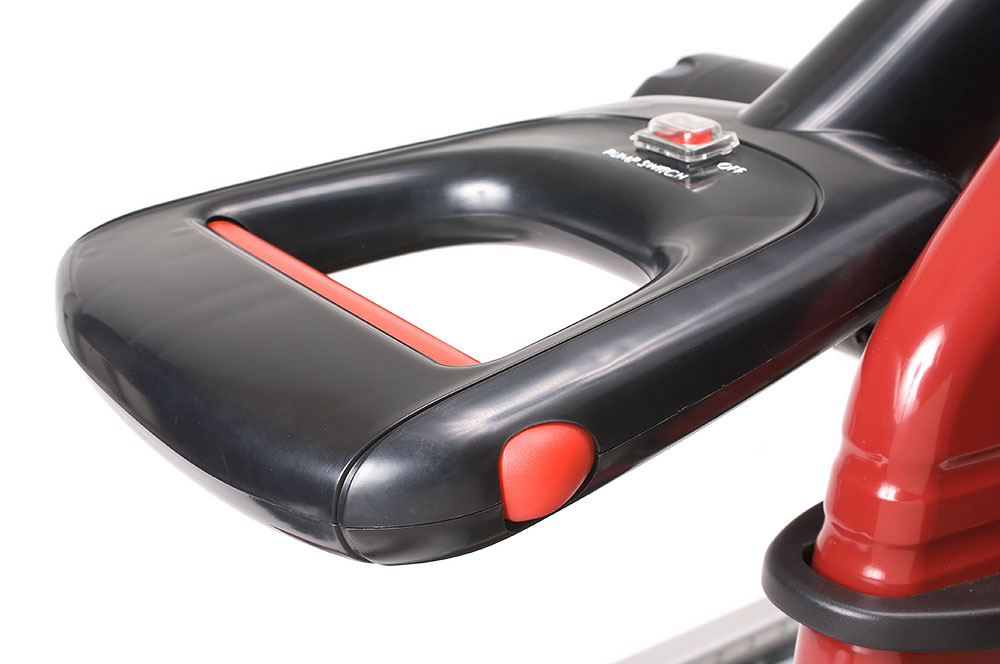

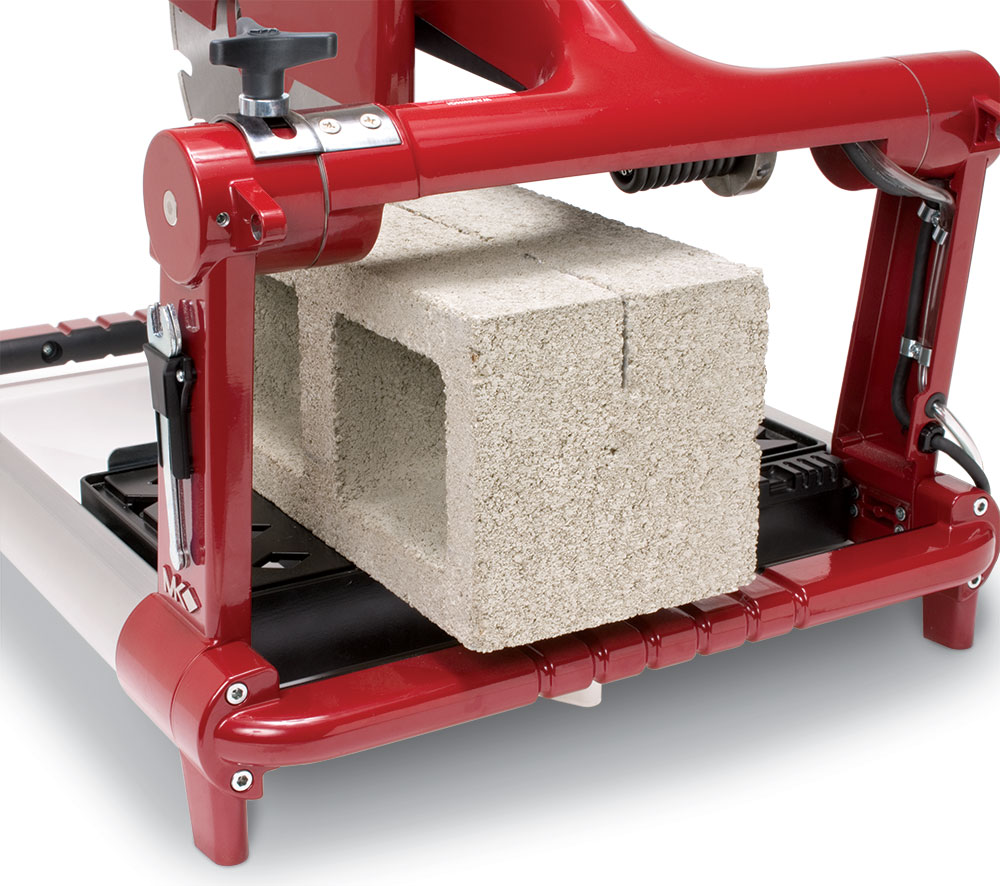

Open-back design. Easy to grip nylon handle. Replaceable air filter
Accessories Included with the BX-4
14 Inch Blade 14" Dry Cutting Diamond Blade

Water Tank Water Tank (Misting Saw Only)

Rip Guide Rip Guide
Optional Accessories
BX-4 Folding Saw Stand BX-4 Folding Saw Stand

Ground Fault Circuit Interrupter Ground Fault Circuit Interrupte
