BX-3 Wet & Dry Cutting Masonry Saws

The BX-3 series is a portable and lightweight line of masonry saws availabe in either dry cutting or wet cutting models. The open-back design allows for large materials to pass through. Includes a 14" diamond blade.

  • Portable and lightweight - 50 lbs.
  • Exclusive motor filter protects motor from dust particle damage
  • 8" x 8" x 16" cutting capacity
  • Lockable trigger-operating switch in the handle to allow for ease of operation
  • Carrying handle incorporated into arm
  • Spring-loaded head, lockable in the down position
  • Heavy-duty cast aluminum rolling conveyor cart
  • Open-back design for large materials to pass through
  • Includes a 14" diamond blade
  • One-year limited warranty
Model BX-3 Dry BX-3 Wet
Part # 157721X 157721WX
Voltage 120V 120V
Horse Power 1-3/4 1-3/4
Amps 15 15
Blade RPM 3,500 3,500
Blade Capacity 14" (356mm) 14" (356mm)
Arbor Size 1" (25mm) 1" (25mm)
Depth of Cut 5" (127mm) 5" (127mm)
Length of Cut 16" (406mm) 16" (406mm)
L x W x H 30" x 22" x 18" 30" x 22" x 18"
L x W x H (mm) 762 x 559 x 457 762 x 559 x 457
Weight 50 lbs. (22.7kg) 50 lbs. (22.7kg)
Shipping Method UPS / Fed-Ex UPS / Fed-Ex

Warning IconWarning: This equipment contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. These chemicals are contained in various components. fluids and paint including but not limited to fuel, oil, electric motors and batteries. In addition, gasoline/diesel powered equipment emits engine exhaust and fumes, and when serviced, cleaned or maintained generate used oil, waste fluids, fumes, grease, grime and particulates from the component wear and silica dust which contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Click on thumbnails for enlarged images.

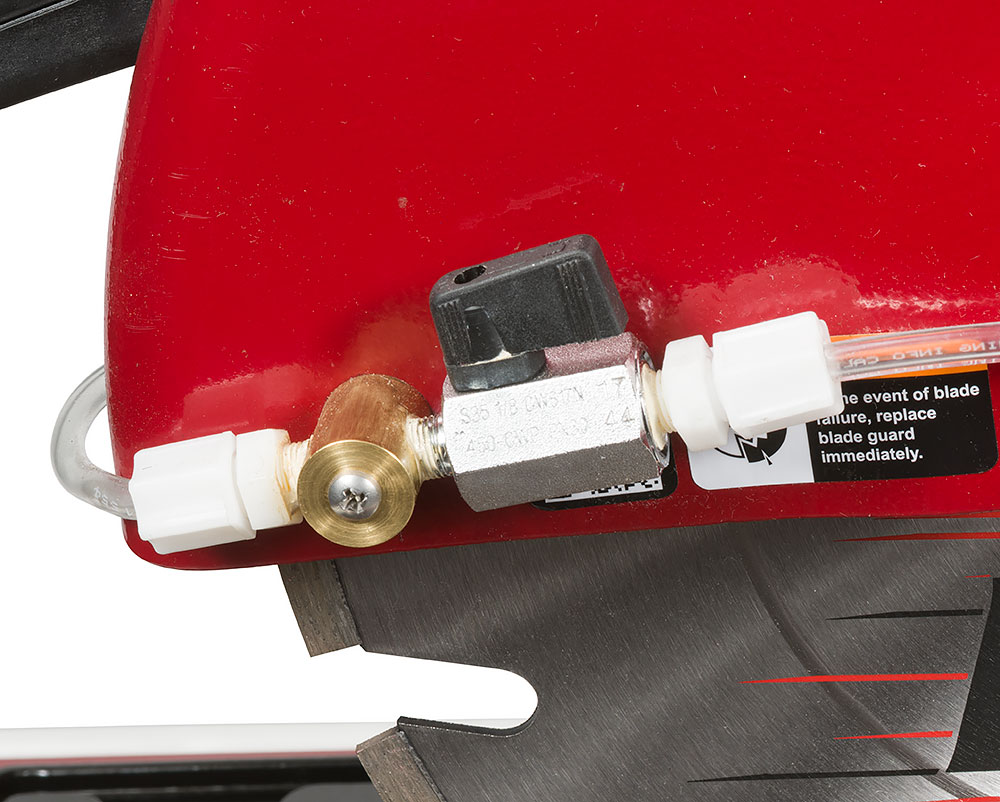

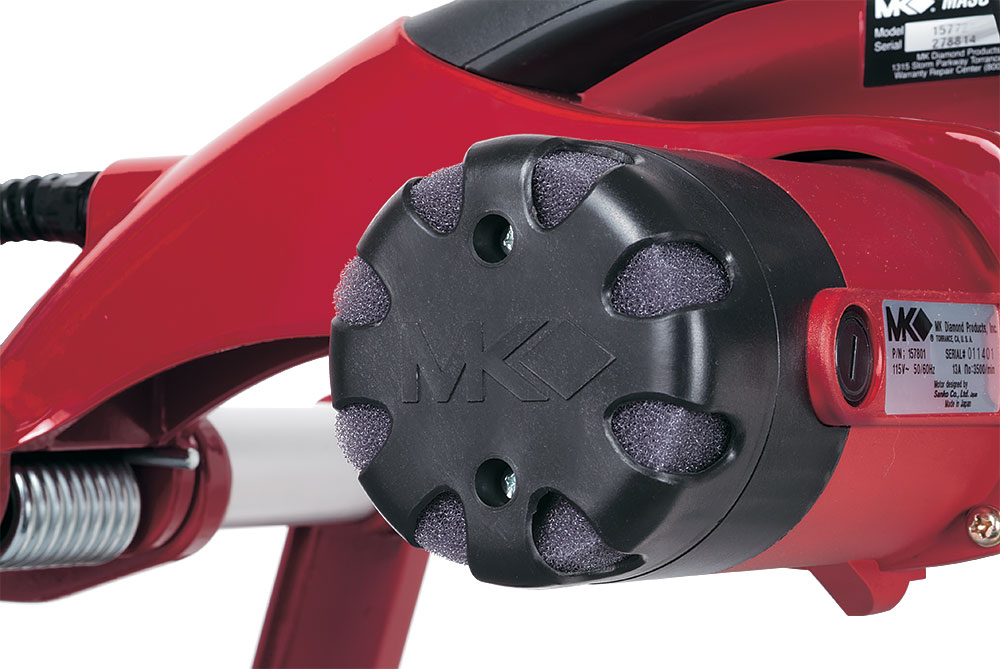

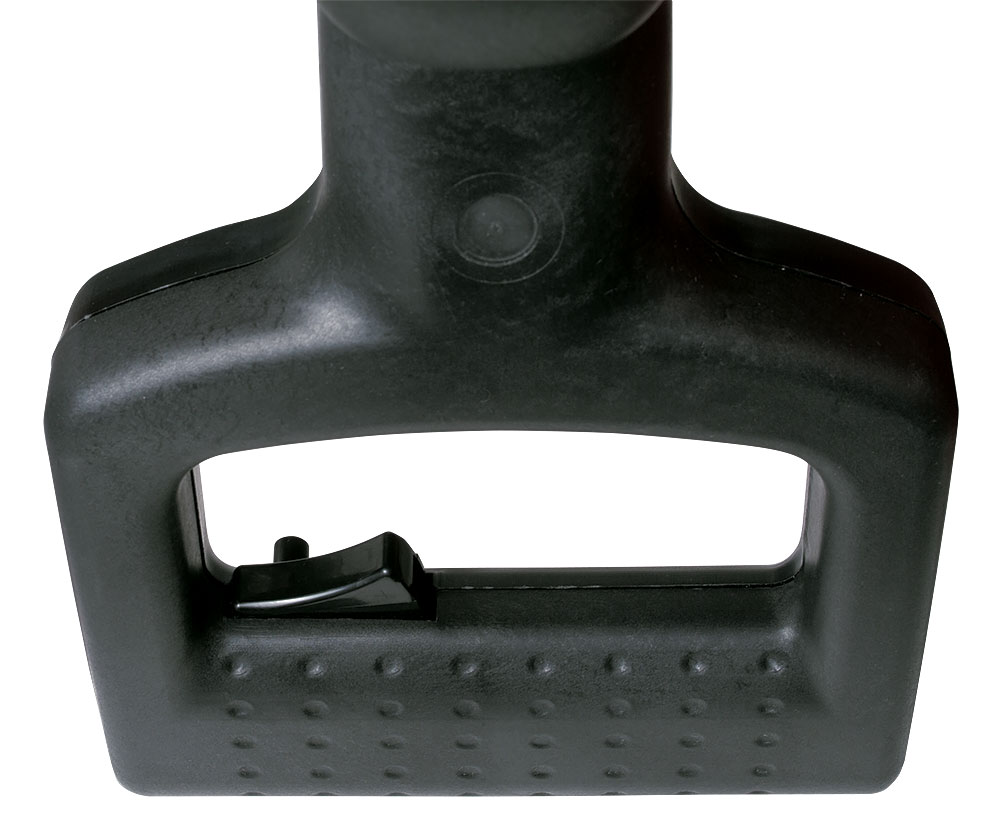

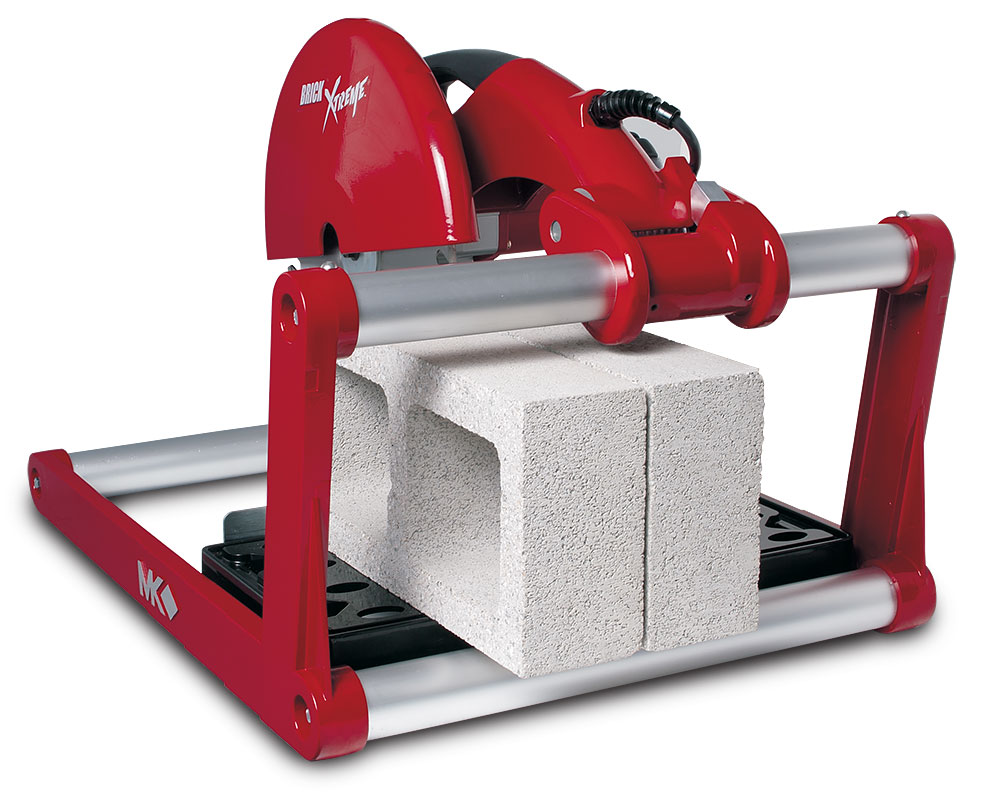

Easy to grip nylon handle with trigger lock Open-back design allows for large materials Replaceable air filter BX-3 wet cutting saw water feed system
Accessories Included with the BX-3
14" Dry Cutting Diamond Blad 14" Dry Cutting Diamond Blade

Rip Guide Rip Guide
Optional Accessories
BX-3 Dry Cutting Saw Stand BX-3 Dry Cutting Saw Stand

BX-3 Wet Cutting Saw Stand BX-3 Wet Cutting Saw Stand

Ground Fault Circuit Interrupter GFCI
Recommended Blades
MK-414PB Blade Premium Hard Brick Blade BX-10

MK-762DMX Blade Premium Hard Brick/Block Blade BX-30
