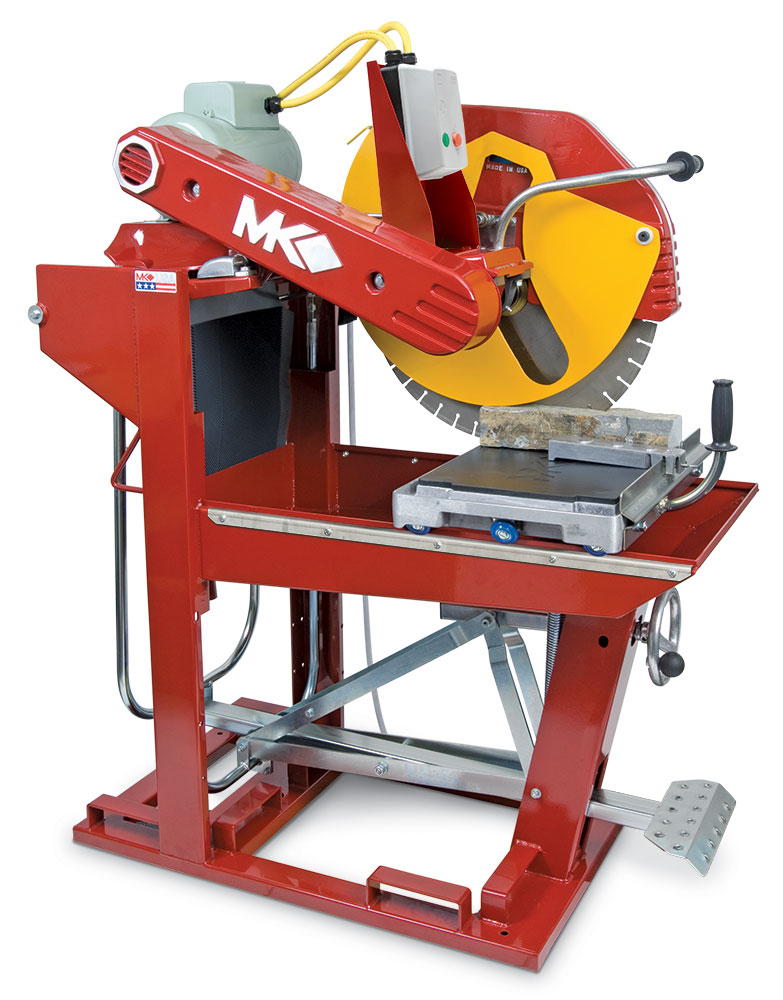

MK-5010 Series Super-Matic Block Saws

The MK-5000 Series of heavy-duty industrial stone saws have been designed to meet the demands of industrial production. 1" self-aligning pillow block bearings, along with a host of innovative operator conveniences and safety features, boost productivity and efficiency.

  • Heavy-duty blade shaft and bearings for trouble free performance
  • Heavy-duty conveyor cart to support additional weight
  • Operator safety handle on conveyor cart
  • Foot pedal for hands-free cutting
  • Advanced blade guard system for added operator safety
  • Optional variable speed motor controller available on 460 volt saw
  • Precision screw feed mechanism allows the cutting head to be easily raised or lowered to the precise cutting depth required
  • Open-back design allows for material up to 20" long to be cut
  • Conveyor cart built from heavy-duty cast aluminum
  • Stainless steel rail liners
  • 3 phase saws are equipped with GE NEMA 1 starters in NEMA 12 enclosure
  • Adjustable water supply for maximum blade protection
  • Built-in tie-downs for safer saw transport
  • Ergonomically designed handle for reduced operator fatigue
  • Spherical rod ends are used to maintain proper cutting head alignment
  • Heavy-duty built-in forklift brackets allow lift to approach from the front or either side of the saw
  • Daily greasing of bearings is eliminated with new heavy-duty oil-bath blade shaft
  • Optional Automatic Water Flow System - water flow is activated by the moving cutting table towards the blade and automatically interrupted when the table is brought to the operator’s position.
  • Made in the USA
  • One-year limited warranty
MK-5010 - 10 H.P. Saws
Model Voltage Blade Guard Part #
MK-5010S 230V 1 Phase 24" 166929
MK-5010T 230V 3 Phase 24" 166930
MK-5010T 460V 3 Phase 24" 166931
MK-5010T 575V 3 Phase 24" 169335
Blade not included.
General Specifications
Arbor Size 1"
Motor RPM 1,725
Shaft RPM - 24" Blade 1,540
Depth of Cut - 24" Blade 10"
Length of Cut 20"
L x W x H 53" x 26" x 63"
Shipping Method Truck

Warning IconWarning: This equipment contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. These chemicals are contained in various components. fluids and paint including but not limited to fuel, oil, electric motors and batteries. In addition, gasoline/diesel powered equipment emits engine exhaust and fumes, and when serviced, cleaned or maintained generate used oil, waste fluids, fumes, grease, grime and particulates from the component wear and silica dust which contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Click on thumbnails for enlarged images.

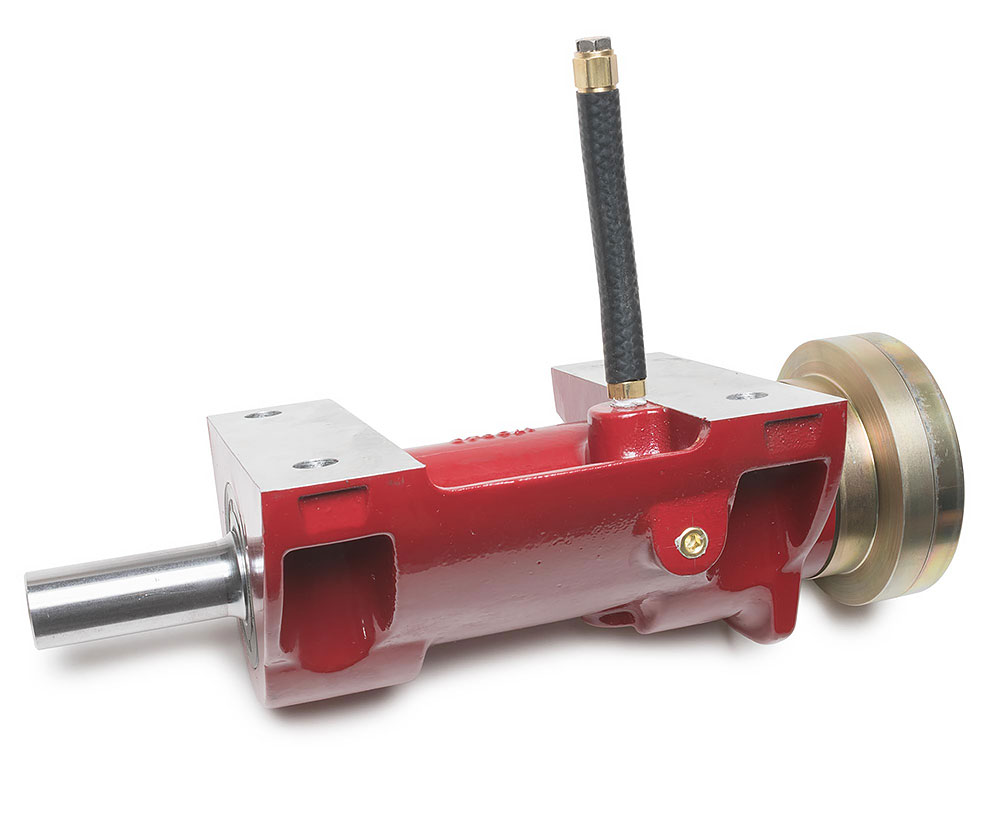

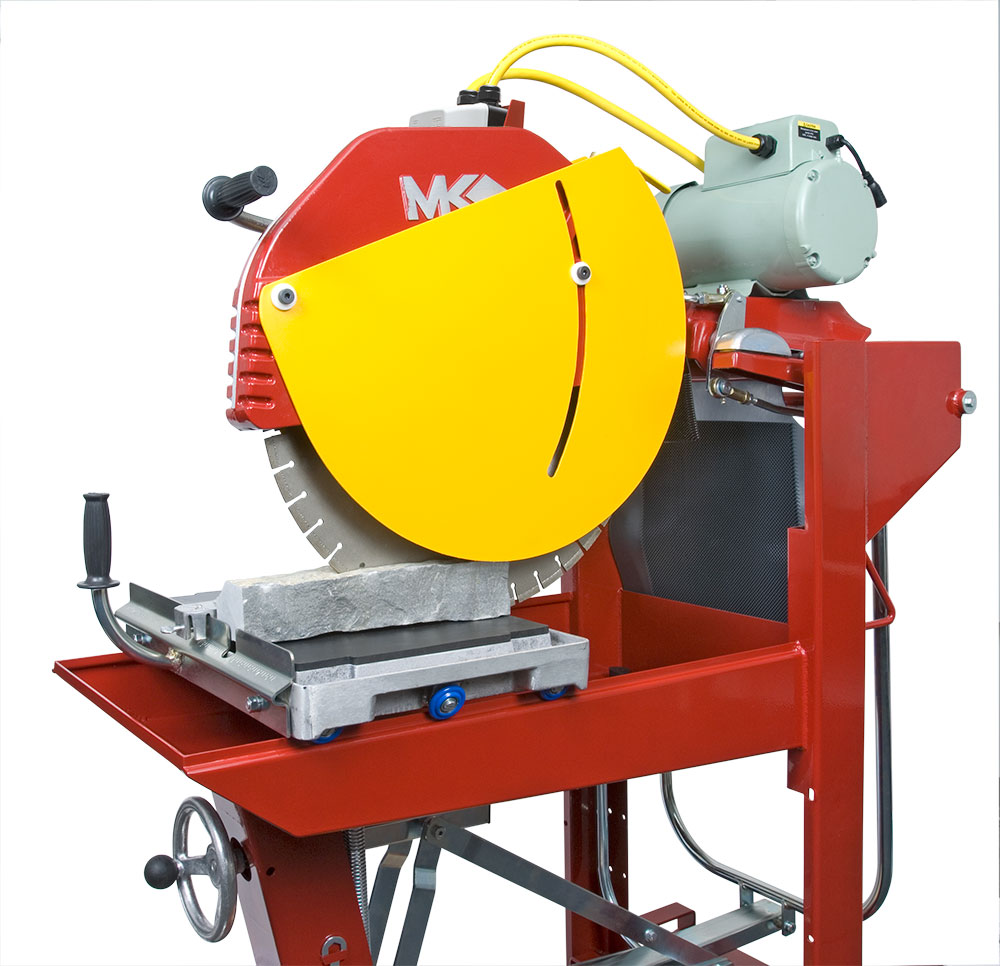

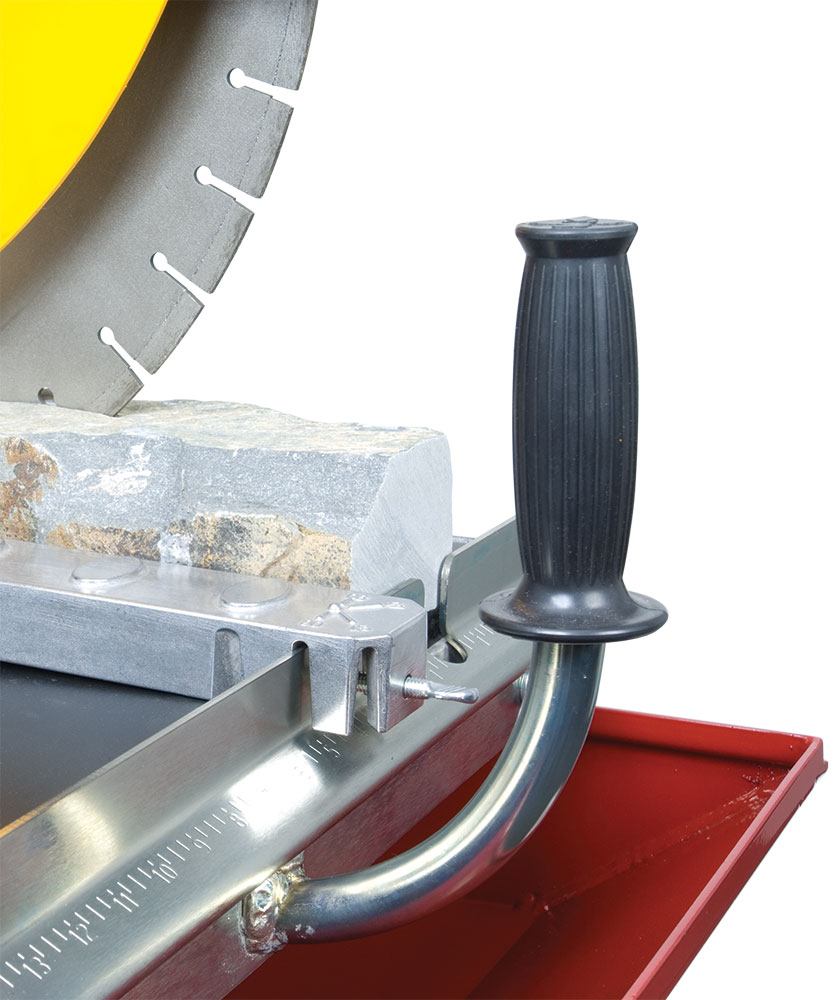

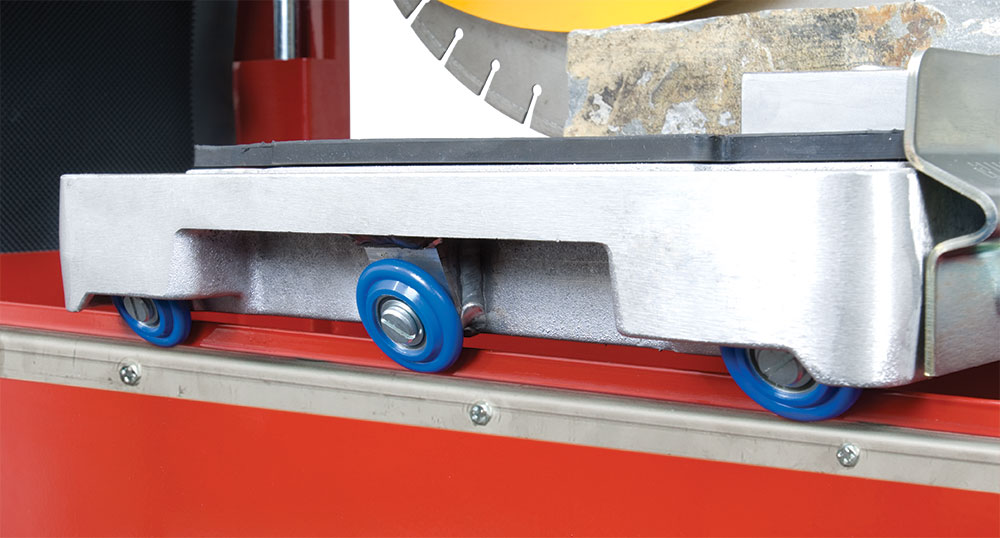

Advanced blade guard system Heavy-duty conveyor cart Operator safety handle on conveyor cart Oil-bath blade shaft

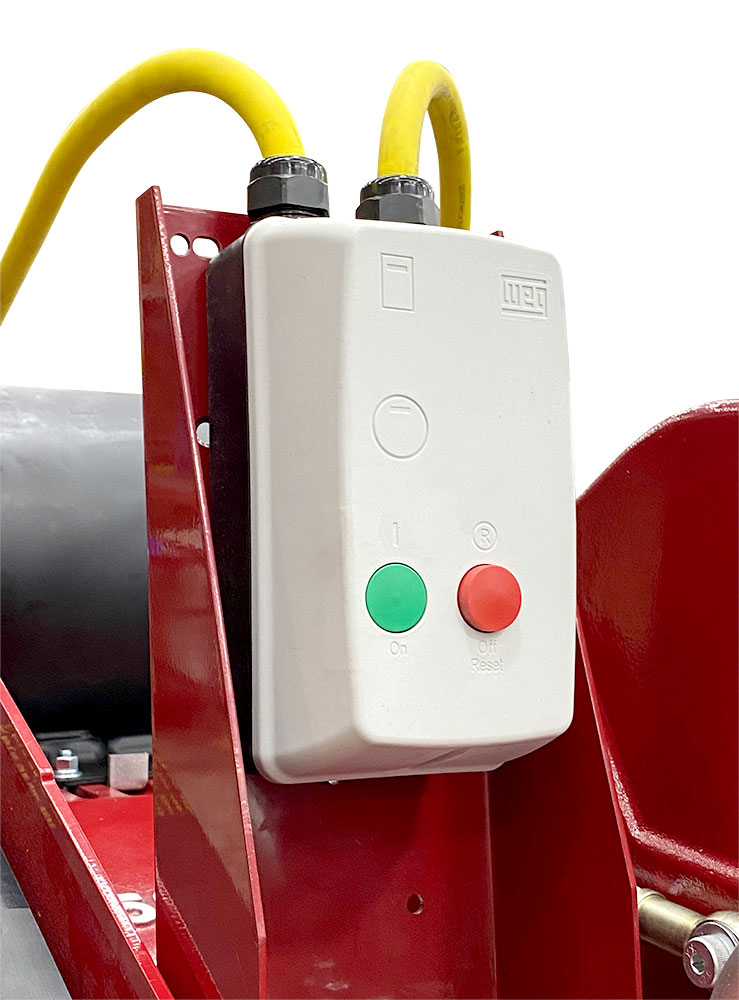

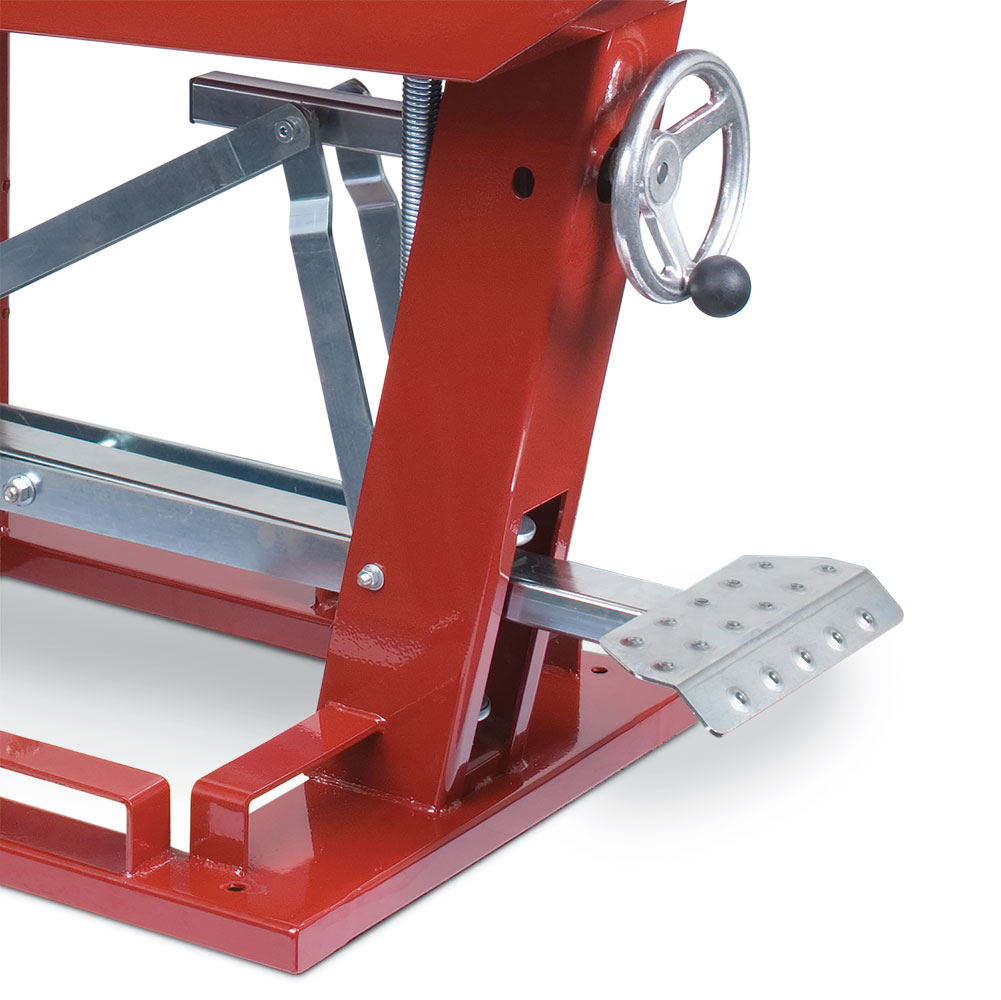

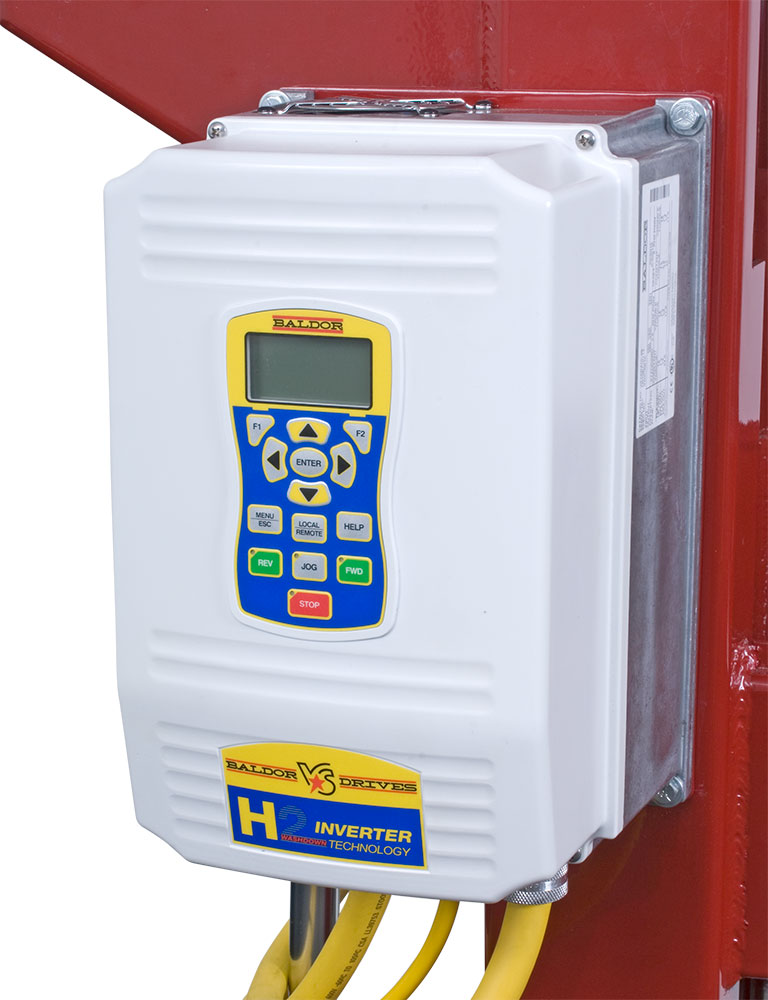

Fhe foot pedal frees both of the operator's hands for holding the masonry piece GE NEMA size 1 starters with NEMA 12 enclosure Optional variable speed motor controller
Accessories Included with MK-5000 Saws
Electric Water Pump Electric Water Pump

Rip Guide Rip Guide
Optional Accessories for MK-5000 Saws
6 WheelConveyor Cart 6 WheelConveyor Cart

Higgins Jig The Higgins Jig
A fast and safe tool for producing 2 x 8
right angle corners, paver corners, and
lintel corners.

IQ 2000 Dry Cutting Vacuum System IQ 2000 Dry Cutting Vacuum System
Dry cutting vacuum systems for
MK-5000 series saws
Recommended Blades
MK-62GSPV Blade Granite MK-62GSPV Silent Core

MK-925DSLX Blade Hard Materials
(Silent Core)
MK-925DSLX Silent Core
