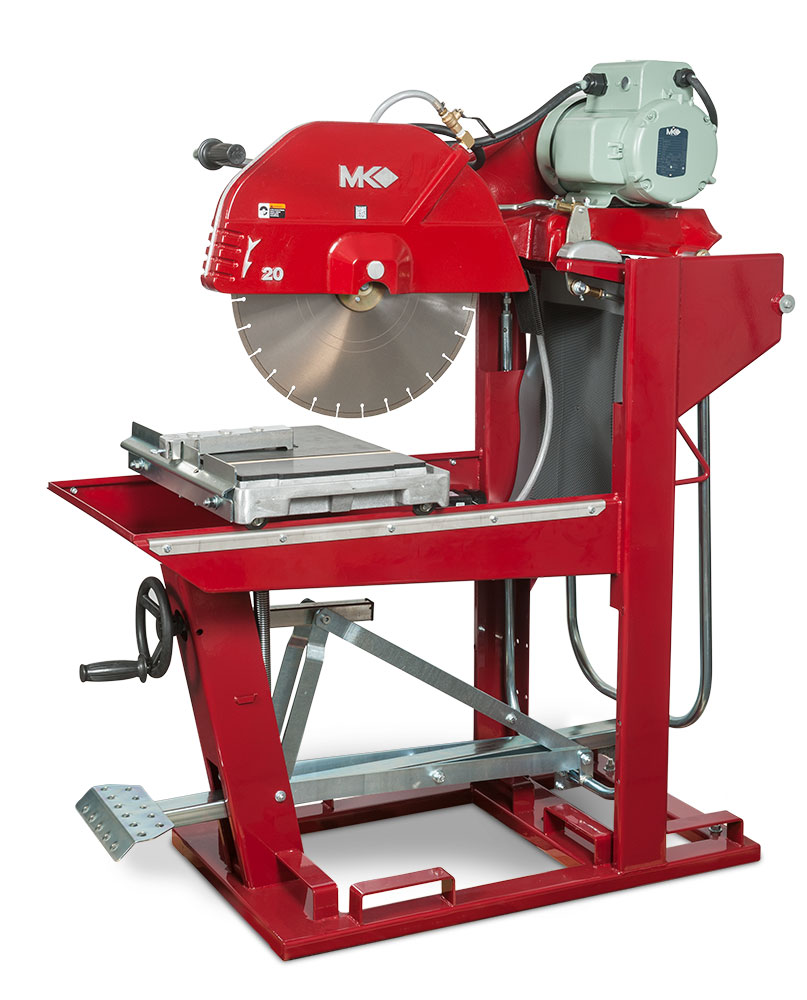

MK-5000 Electric Series Block Saws

The MK-5000 Series of block saws set the quality standard for durability and maintenance-free operation. These saws are specially designed to provide the highest level of productivity, operator safety and convenience. Heavy-duty cast aluminum and steel parts ensure the finest value in the masonry and stone industry.

  • Precision screw feed mechanism allows the cutting head to be easily raised or lowered to the precise cutting depth required
  • Self-leveling blade guard provides optimum blade coverage for operator safety
  • Foot pedal for hands-free cutting
  • Open-back design allows for material up to 20" long to be cut
  • Conveyor cart built from heavy-duty cast aluminum
  • Stainless steel rail liners
  • 3 phase saws are equipped with GE NEMA 1 starters in NEMA 12 enclosure
  • Adjustable water supply for maximum blade protection
  • Built-in tie-downs for safer saw transport
  • Ergonomically designed handle for reduced operator fatigue
  • Heavy-duty built-in forklift brackets allow lift to approach from the front or either side of the saw
  • Daily greasing of bearings is eliminated with new heavy-duty oil-bath blade shaft
  • Optional Automatic Water Flow System - water flow is activated by the moving cutting table towards the blade and automatically interrupted when the table is brought to the operator’s position
  • One-year limited warranty
MK-5005 - 5 H.P. Saws
Model Voltage Blade Guard Part #
MK-5005S 230V 1-Phase 14" 160634-14
MK-5005S 230V 1-Phase 20" 160634
MK-5005T 230V 3-Phase 14" 160636-14
MK-5005T 230V 3-Phase 20" 160636
MK-5005T 460V 3-Phase  14" 160637-14
MK-5005T 460V 3-Phase  20" 160637
MK-5007 - 7.5 H.P. Saws
Model Voltage Blade Guard Part #
MK-5007T 230V 3-Phase 14" 160641-14
MK-5007T 230V 3-Phase 20" 160641
MK-5007T 230V 3-Phase 24" 160641-24
MK-5007T 460V 3-Phase 14" 160642-14
MK-5007T 460V 3-Phase 20" 160642
MK-5007T 460V 3-Phase 24" 160642-24
MK-5010 - 10 H.P. Saws
Model Voltage Blade Guard Part #
MK-5010S 230V 1-Phase 14" 169328-14
MK-5010S 230V 1-Phase 20" 169328-20
MK-5010S 230V 1-Phase 24" 169328
MK-5010T 230V 3-Phase  14" 169330-14
MK-5010T 230V 3-Phase  20" 169330-20
MK-5010T 230V 3-Phase  24" 169330
MK-5010T 460V 3-Phase  14" 169331-14
MK-5010T 460V 3-Phase  20" 169331-20
MK-5010T 460V 3-Phase  24" 169331

Blade not included.
50Hz motors available on request.

General Specifications
Arbor Size 1"
Motor RPM 1,725
Shaft RPM - 14" Blade 2,700
Shaft RPM - 20" Blade 1,925
Shaft RPM - 24" Blade 1,540
Depth of Cut - 14" Blade 5"
Depth of Cut - 20" Blade 8"
Depth of Cut - 24" Blade 10"
Weight - MK-5005 451 lbs. (205 kg)
Weight - MK-5007 485 lbs. (220 kg)
Weight - MK-5009 485 lbs. (220 kg)
Weight - MK-5010 513 lbs. (233 kg)
Length of Cut 20"
L x W x H 53" x 26" x 63"
L x W x H (mm) 1,346 x 660 x 1,600
Shipping Method Truck

Warning IconWarning: This equipment contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. These chemicals are contained in various components. fluids and paint including but not limited to fuel, oil, electric motors and batteries. In addition, gasoline/diesel powered equipment emits engine exhaust and fumes, and when serviced, cleaned or maintained generate used oil, waste fluids, fumes, grease, grime and particulates from the component wear and silica dust which contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Click on thumbnails for enlarged images.

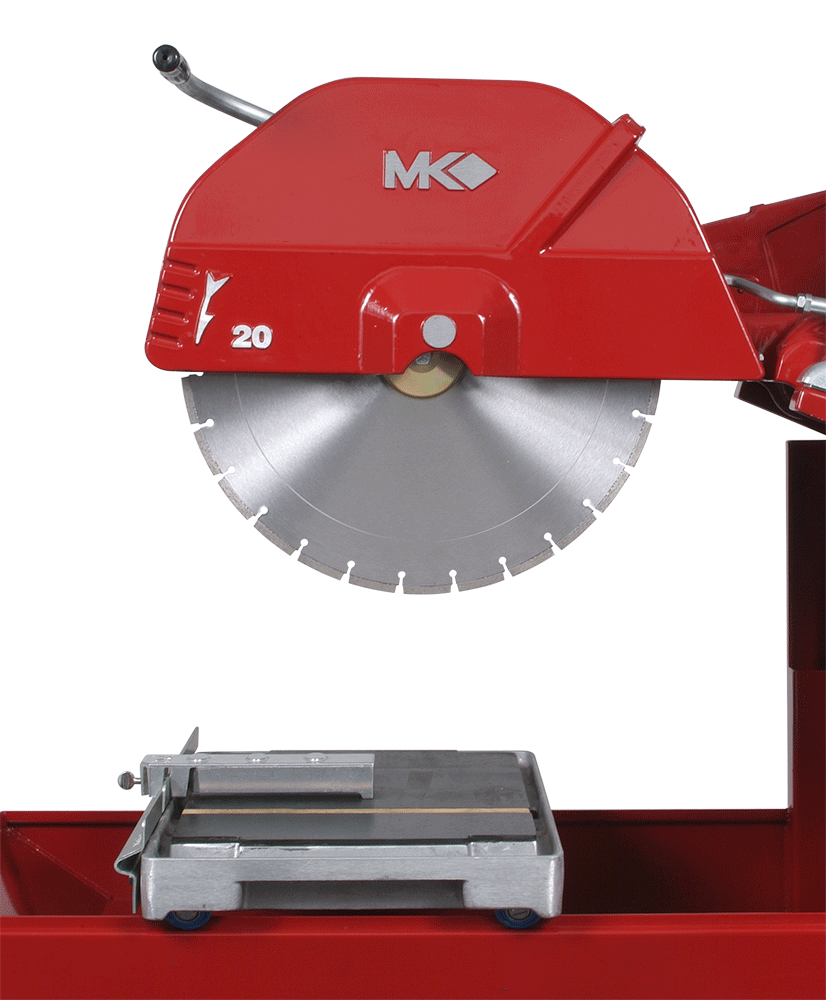

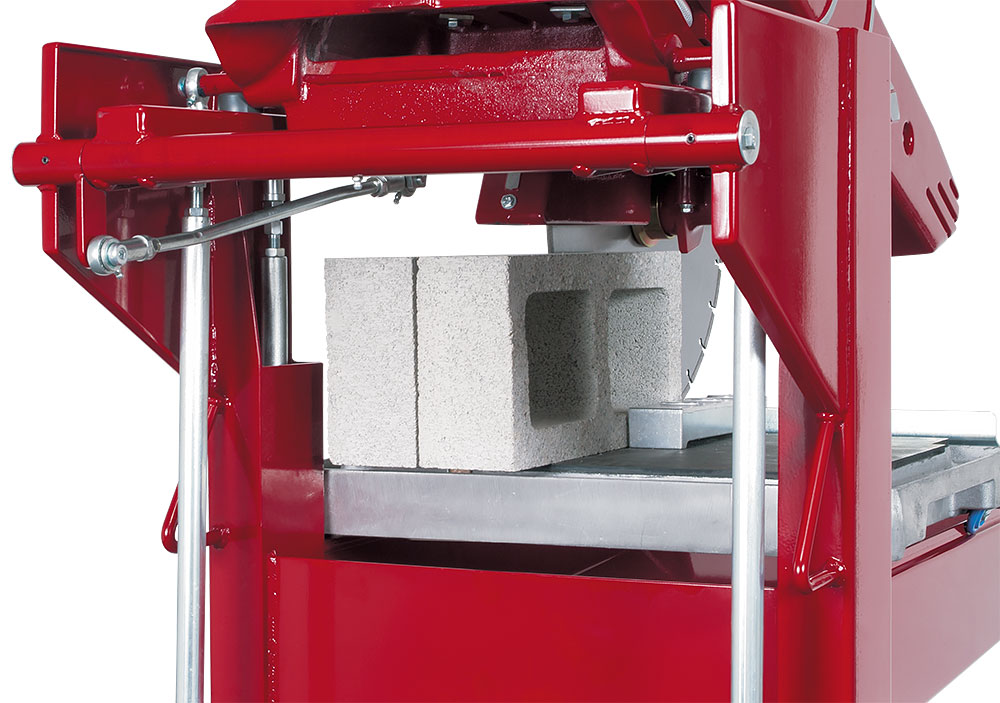

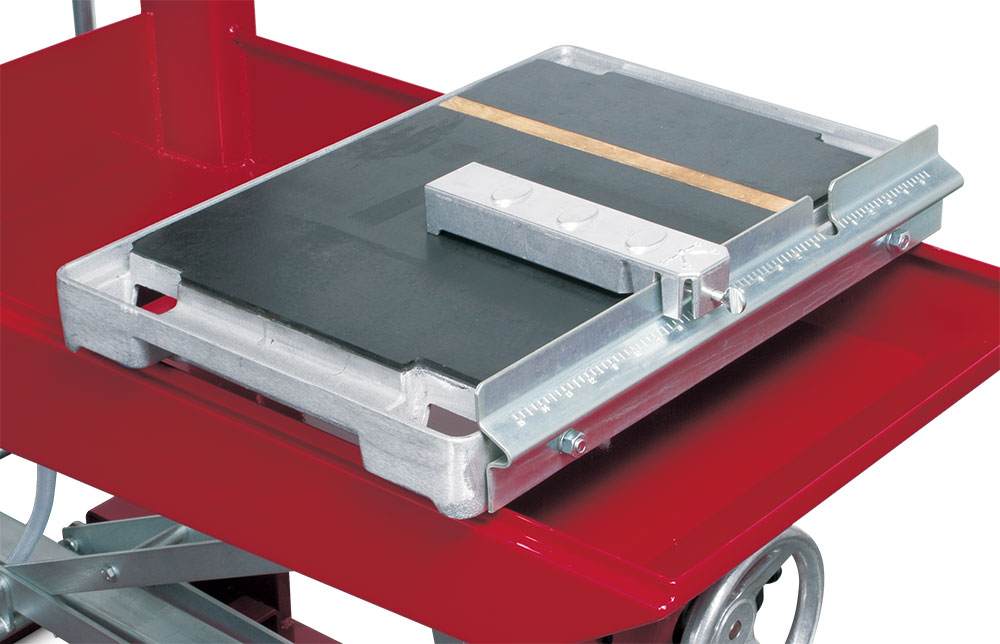

Stay level blade guard Open-back design allows 8 inch high block to be cut in a single pass MK-5000 conveyor cart

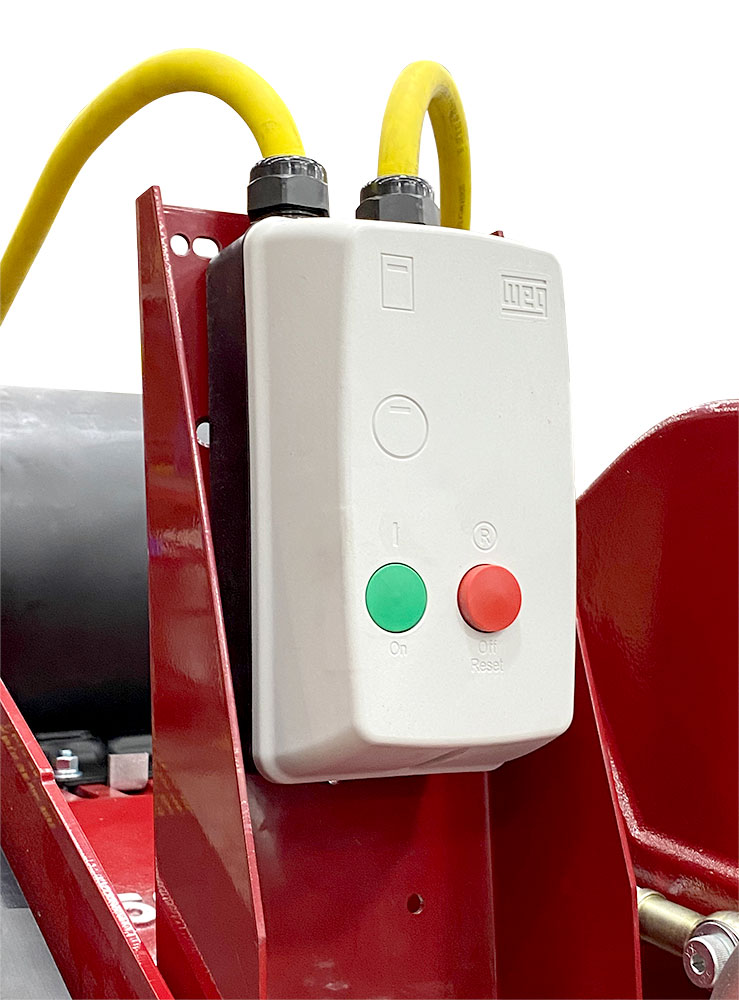

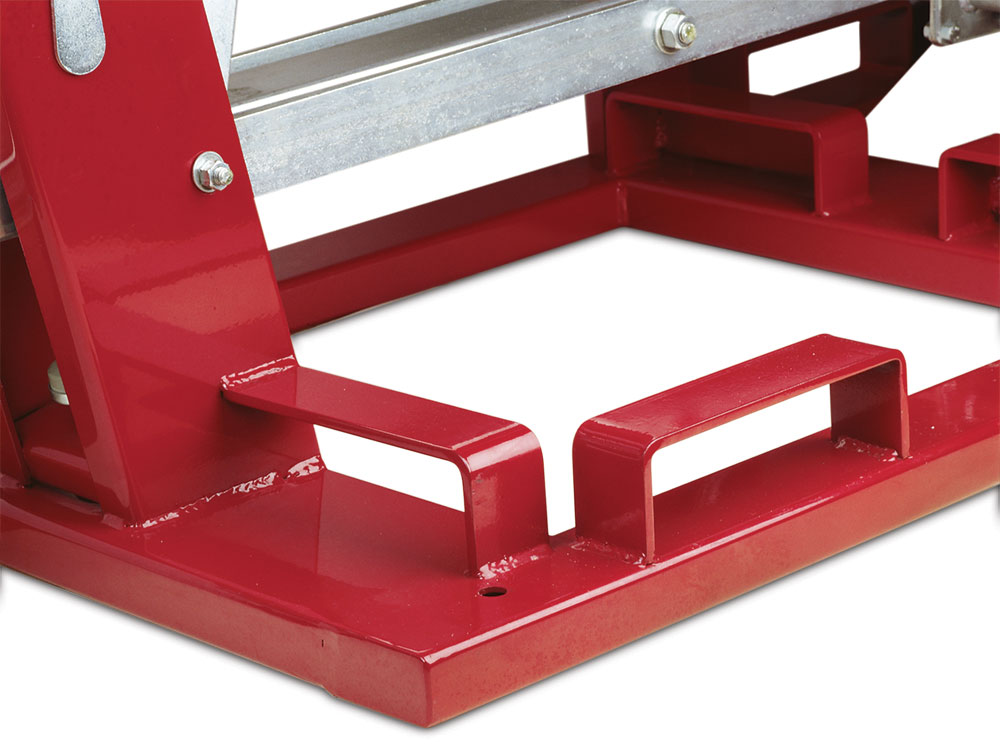

GE NEMA size 1 starters with NEMA 12 enclosure Fhe foot pedal frees both of the operator's hands for holding the masonry piece Heavy-duty built-in forklift brackets
Accessories Included with MK-5000 Saws
Electric Water Pump Electric Water Pump

Rip Guide Rip Guide
Optional Accessories for MK-5000 Saws
6 Wheel Conveyor Cart 6 Wheel Conveyor Cart

Higgins Jig The Higgins Jig
A fast and safe tool for producing 2 x 8
right angle corners, paver corners, and
lintel corners.

IQ 2000 Dry Cutting Vacuum System IQ 2000 Dry Cutting Vacuum System
Dry cutting vacuum systems for
MK-5000 series saws
Recommended Blades
MK-10 Blade Brick MK-10

MK-410R Blade Hard Brick MK-410R

MK-30 Blade Brick & Block MK-30

MK-50 Blade Concrete Block MK-50

MK-925DSLX Blade Hard Material
(Silent Core)
MK-925DSLX
