MK-2005H Gas Brick & Block Saws

The MK-2005 masonry saw has been designed for high-production cutting. The pull-down handle on the cutting head prevents operator fatigue and increases visibility during all cutting operations. Jig-welded, reinforced steel construction, combined with sturdy die cast aluminum uprights, provide positive alignment. Specially located forklift brackets under the frame provide lifting control points for ease of transportation. One-year limited warranty.

  • 14" blade capability and 5" depth of cut
  • Convenient ON/OFF switch for operator safety
  • Cast-aluminum structural components & jig-welded steel frame assembly
  • Stay-level blade guard provides maximum depth of cut at any head height
  • Drop down blade shaft is built with sealed, permanently lubricated, heavy-duty bearings
  • Open-back design allows for material up to 16" long to be cut
  • Recoil spring return cutting head for easy plunge cutting
  • Cast aluminum blade guard with stainless steel water tubes that will not bend or rust
  • Adjustable water supply for maximum blade protection
  • Fork lift brackets for ease of transportation
  • Includes rip guide, Centrifugal Water Pump and 14" diamond blade
  • One-year limited warranty
Part # 155961
Engine Honda GX160
Motor RPM 3,600
Blade RPM 2,550
Blade Capacity 14" (356mm)
Arbor Size 1" (25mm)
Length of Cut 16" (406mm)
Depth of Cut 5" (127mm)
L x W x H 42" x 24" x 39"
L x W x H (mm) 1067 x 610 x 991
Weight 171 lbs. (77.5 kg.)
Shipping Method Truck

* Engine power ratings are calculated by the individual engine manufacturer and the rating method may vary among engine manufacturers. MK Diamond Products makes no claim, representation or warranty as to the power rating of the engine on this equipment and disclaims any responsibility or liability of any kind whatsoever with respect to the accuracy or the engine power rating. Users are advised to consult the engine manufacturer’s owners manual and website for specific information regarding the engine power rating.

Warning IconWarning: This equipment contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. These chemicals are contained in various components. fluids and paint including but not limited to fuel, oil, electric motors and batteries. In addition, gasoline/diesel powered equipment emits engine exhaust and fumes, and when serviced, cleaned or maintained generate used oil, waste fluids, fumes, grease, grime and particulates from the component wear and silica dust which contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Click on thumbnails for enlarged images.

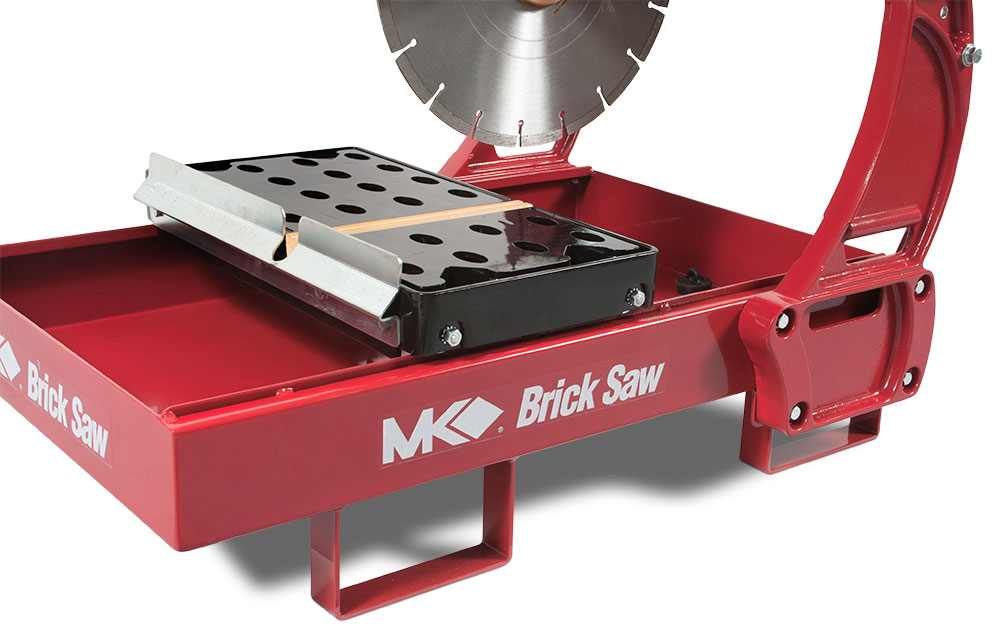

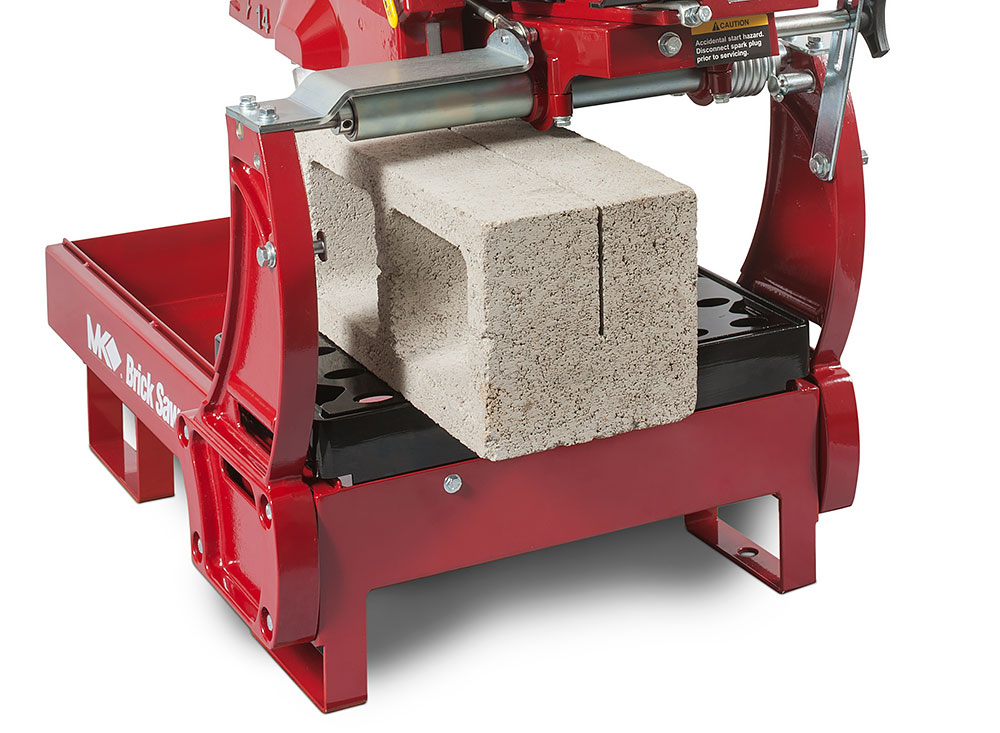

Stay-level blade guard Open-back design allows for large materia Fork lift brackets
Accessories Included with 2000 Series Gas Saws
 Dry Cutting Diamond Blade 14" Dry Cutting Diamond Blade

Centrifugal Water Pump Centrifugal Water Pump

Rip Guide Rip Guide
Optional Accessories
Pro Saw Stand Pro Saw Stand
