MK-1080 Brick Saw

The MK-1080 is a lightweight and portable brick saw. The high torque, 1-1/2 Hp motor delivers plenty of power to cut pavers and hard brick. The steel frame provides durability and strength, while the spring-loaded cutting head is balanced and improves operator visibility during all cutting operations.

  • High torque, thermally protected 1-1/2 hp motor

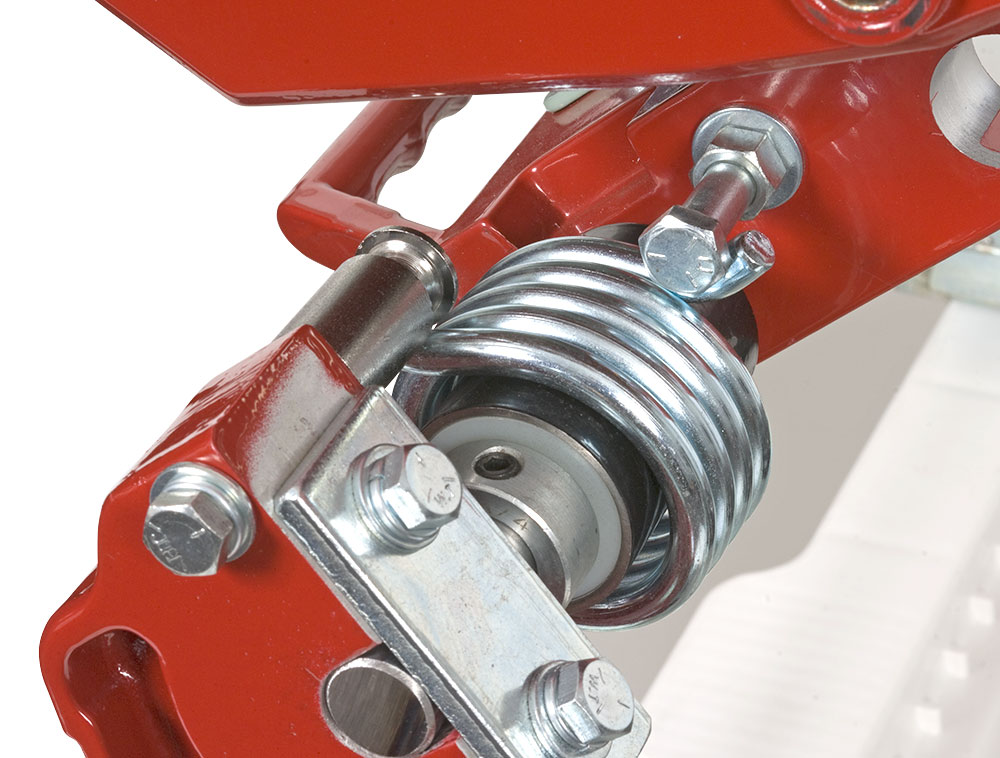

  • Recoil spring counterbalanced cutting head
  • Single piece reinforced zinc-plated steel frame has carrying handles for easy transportation
  • Hinged blade guard with stainless steel water tubing
  • Heavy-duty blade shaft assembly with dual-sealed bearings & precision machined shaft

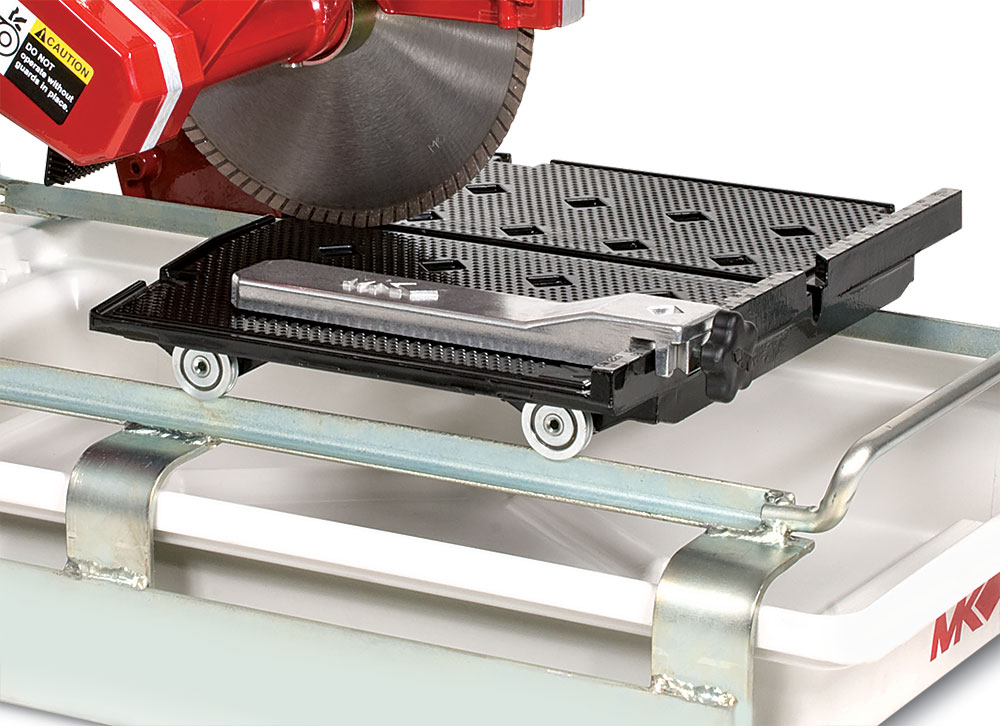

  • Cutting table travels on steel roller wheels to provide precise cutting
  • Water pump and rip guide included
  • Made in the USA
  • One-year limited warranty
Part # 153203
Motor ABB (Baldor)
Voltage 120V / 60 Hz
Horse Power 1-1/2 hp
Blade Capacity 10" (254mm)
Arbor Size 5/8" (16mm)
Depth of Cut 3-3/4" (90mm)
Length of Cut 16" (406mm)
Weight 98 lbs. (44 kg.)
L x W x H 33" x 23" x 23"
L x W x H (mm) 838 x 584 x 584
Shipping Method UPS / Fed-Ex
Blade not included.
Available with 220V/50 HZ motor.

Warning: This equipment contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. These chemicals are contained in various components. fluids and paint including but not limited to fuel, oil, electric motors and batteries. In addition, gasoline/diesel powered equipment emits engine exhaust and fumes, and when serviced, cleaned or maintained generate used oil, waste fluids, fumes, grease, grime and particulates from the component wear and silica dust which contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Click on thumbnail for enlarged images.
Accessories Included with the MK-1080
Electric Water Pump

Rip Guide
Optional Accessories
Folding Saw Stand

Saw Stand with Casters

Ground Fault Interrupter

Recommended Blades
Brick MK-10

General Purpose Segmented MK-565SKMR

General Purpose Turbo MK-925D
