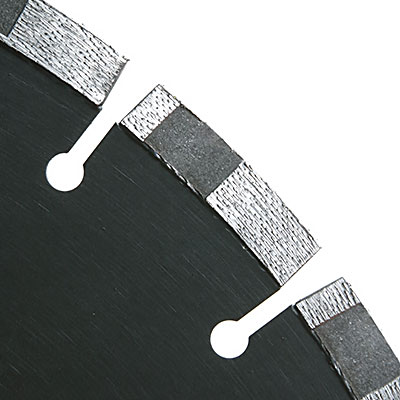

| Dry Cutting Segmented Rim Blades |
|
| MK-762DMX |
 |
Supreme grade general purpose blades for concrete and masonry |
|
|

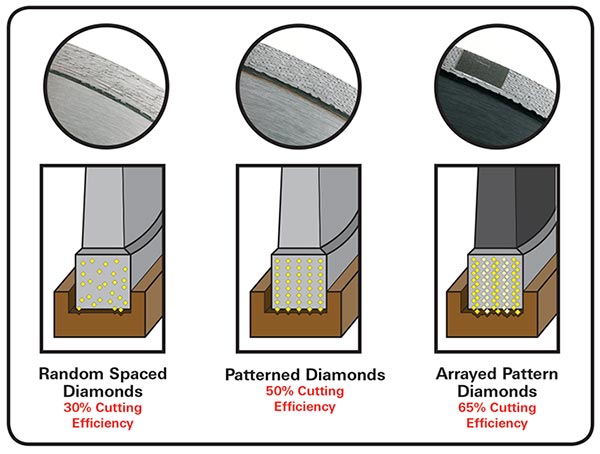

| The MK-762DMX is the industry’s first blade engineered to use an arrayed pattern of diamonds for maximum performance on a broad range of materials. |
| Diameter |
Width |
Arbor |
MK-762DMX |
| 12" |
(305mm) |
.110 |
1" |
161290 |
| 12" |
(305mm) |
.125 |
1" |
161291 |
| 14" |
(356mm) |
.110 |
1" |
161292 |
| 14" |
(356mm) |
.125 |
1" |
161293 |
| 16" |
(406mm) |
.125 |
1" |
161294 |
| 18" |
(457mm) |
.125 |
1" |
161295 |
| 20" |
(508mm) |
.142 |
1" |
161296 |
| Rim Height |
10mm |
|
 |
|
|
|
|
|
