MK-SDG-7

Perfect for small jobs, the MK SDG-7 is designed to grind concrete to a smooth finish and provide dust control. Utilizing diamond cup wheels, contractors can use the SDG-7 for grinding, cleaning, and leveling concrete, masonry, and mortar. Other applications include removal of thick coatings like epoxies and urethanes, adhesives, thin set mortar, rubber, floor coverings and waterproofing materials.

  • 115V/15 Amp motor, disc RPM of 3,500
  • Constructed with sturdy gauge steel
  • MK-IXL vacuum shroud for dust control
  • Shroud accommodates diamond cup wheels up to 7" in diameter
  • Attaches to traditional shop vacuum, reducing risk of respiratory problems
  • Built-in nose weight
  • Lightweight portable size for use in small areas
  • Removable handle bars for easy transport and storage
  • Easy to maneuver by one person
  • Levels uneven surfaces and quickly removes epoxies and thin coatings
  • One-year limited warranty
Part # 166859
Voltage 115V
Amps 15
Disc RPM 3,500
Disc Capacity 7" (178mm)
Shaft Thread 5/8"-11 Female
LxWxH 34.6" x 17.5" x 32"
LxWxH (mm) 879 x 445 x 813
Weight 44 lbs. (20 kg.)

Warning IconWarning: This equipment contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. These chemicals are contained in various components. fluids and paint including but not limited to fuel, oil, electric motors and batteries. In addition, gasoline/diesel powered equipment emits engine exhaust and fumes, and when serviced, cleaned or maintained generate used oil, waste fluids, fumes, grease, grime and particulates from the component wear and silica dust which contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Click on thumbnails for enlarged images.
Built-in nose

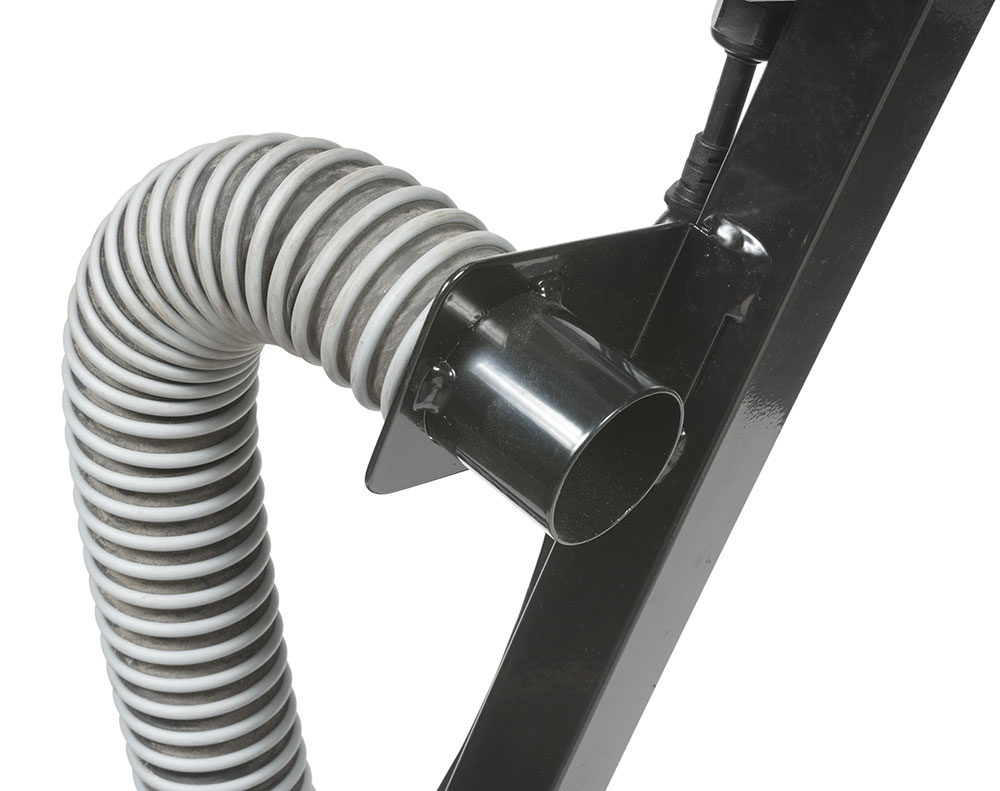

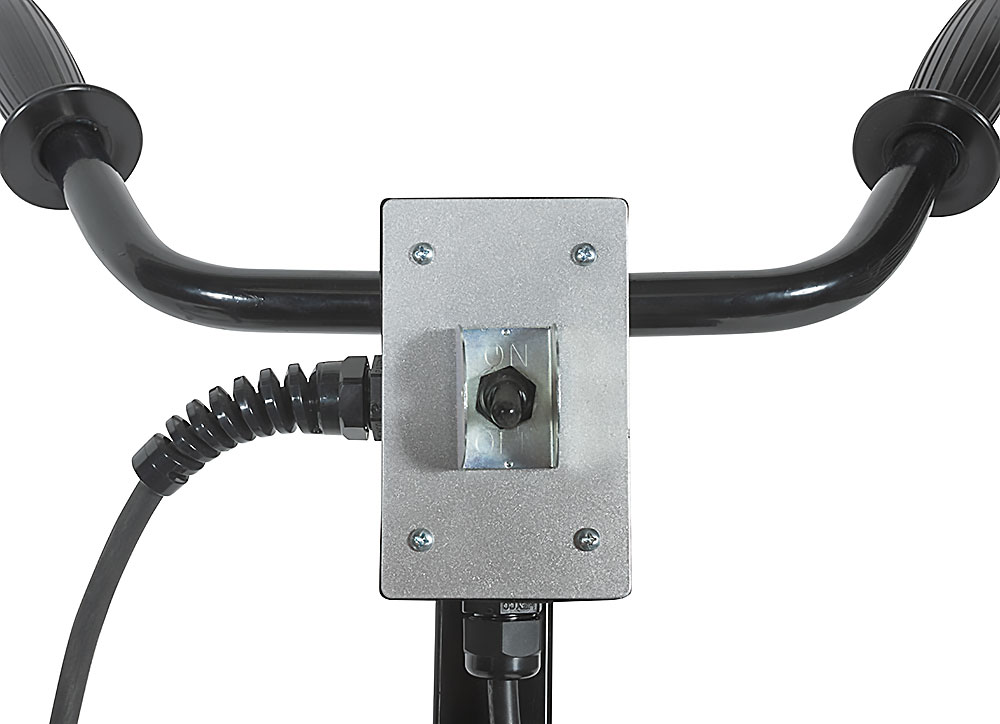

weight Handle mounted switch box for easy operator access. Removable handle bars for easy transport and storage Easy to attach
to vacuum
system
Accessories Included with MK-SDG-7
MK IXL Full Shrou MK IXL Full Shroud

7" Cup Wheel 7" Cup Wheel
Optional Accessories
IXL Hinged Shroud IXL Hinged Shroud

IXL Hinged Shroud 7" Swing Shroud

ZEK Wheel Adapter ZEK Wheel Adapter

Cyclone Vacuum Cyclone Vacs
