SRX-150 Green Cut Early Entry Saw
Add to Cart Manual Parts List Sell Sheet
SRX-150

Compact and lightweight, the SRX-150 series of dry cutting saws are engineered for early entry sawing of crack control joints within one to two hours of concrete finishing. The blade guard features a vacuum port to control dust when dry cutting. One-year limited warranty.

SRX-150 Green Cut Early Entry Saw

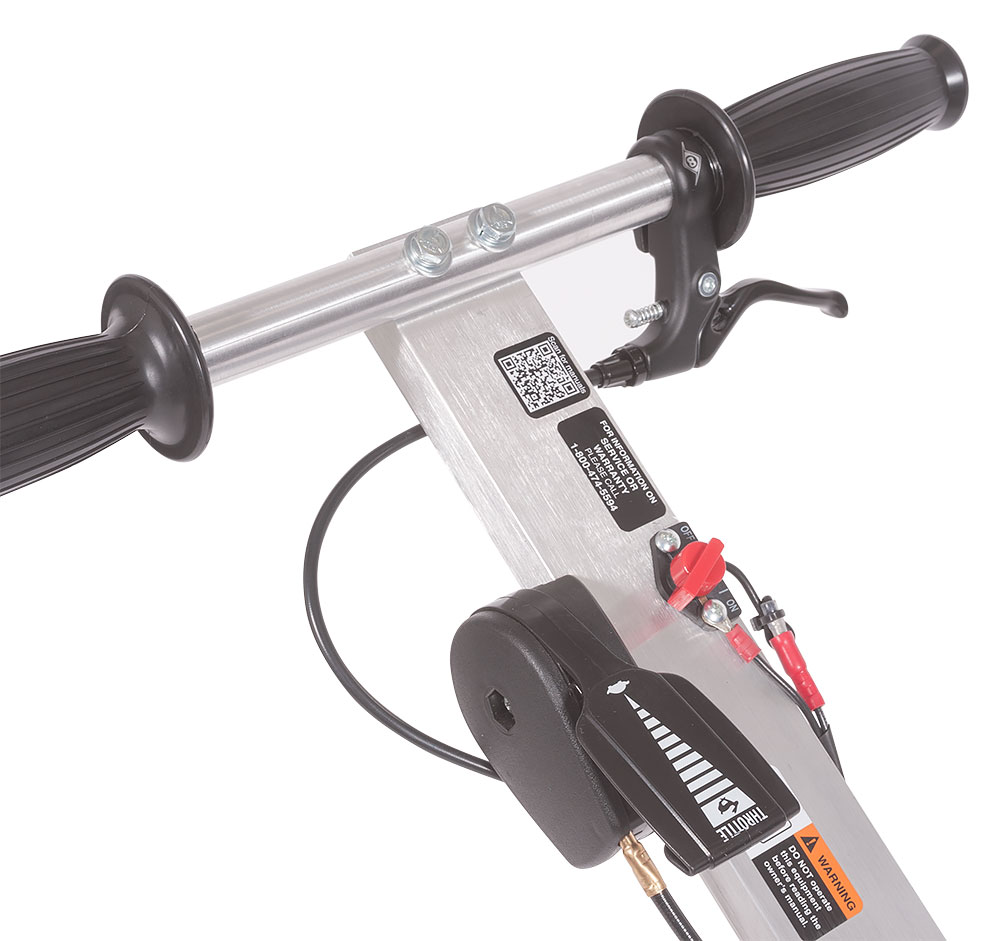

Control panel with remote throttle, engine stop switch and raise lock release lever

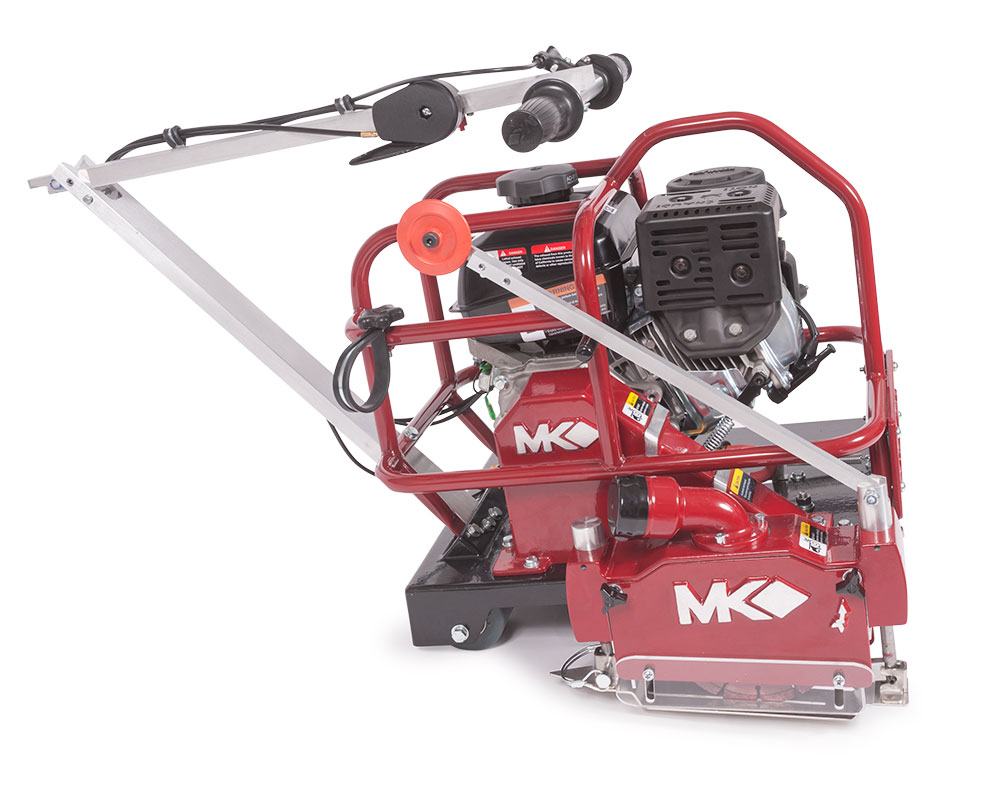

Folding handle bar for compact transport and storage

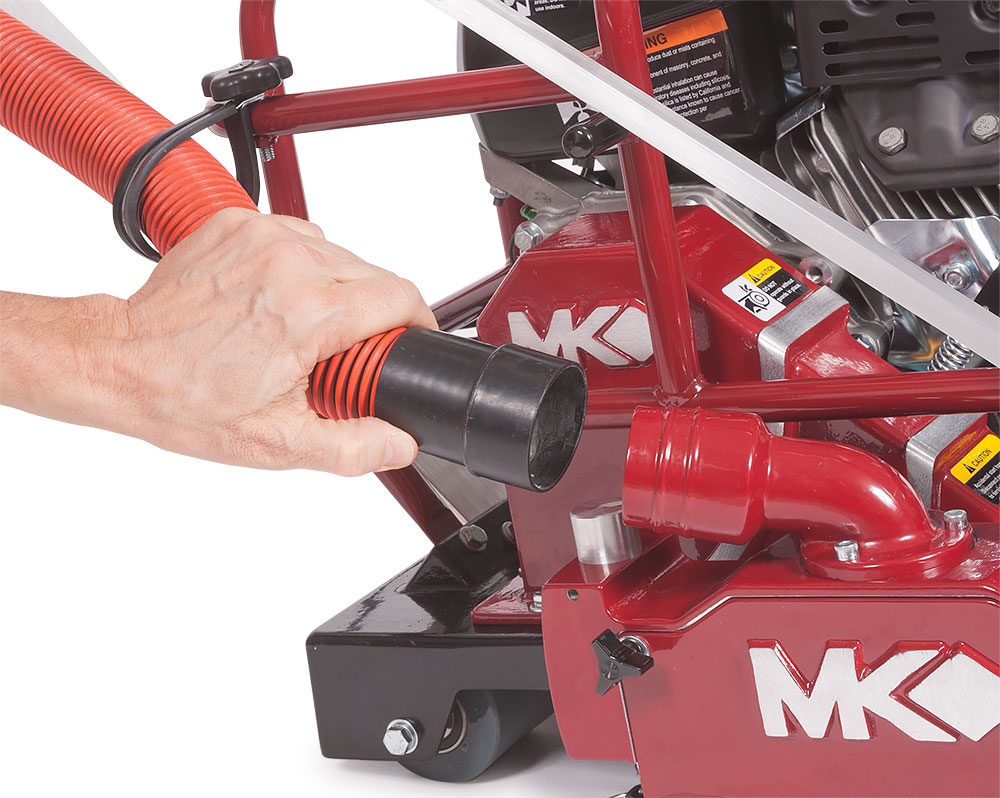

Vacuum port for easy connection to dust control systems
Anti-spall, quick change skid plate
  • "Upcut" blade rotation facilitates keeping debris out of the joint
  • Triangular shaped arbor
  • Blade shaft with self-aligning bearings
  • Vacuum port for easy connection to dust control systems
  • Remotely mounted throttle and stop switch for quick operator access
  • Folding handle bar for compact transport and storage
  • Poly V-belt for positive power transmission
  • Easily removed blade guard cover provides quick access for blade changes and inspection
  • 3-inch wide, polyurethane wheels for non-marking
  • Anti-spall, quick change skid plate
  • Lifting point for easy transport
Model SRX-150H SRX-150K
Part# 172023-H 172023-K
Engine Honda GX160 Cyclone CH255 Quad Clean
Horse Power 4.8 5.5
Blade Capacity 6-3/8" (162 mm) 6-3/8" (162 mm)
Depth of Cut 1-1/8" (29 mm) 1-1/8" (29 mm)
Arbor Triangular Triangular
LxWxH (inches) 32" x 19" x 42" 32" x 19" x 42"
LxWxH mm) 813 x 483 x 1,067 813 x 483 x 1,067
Weight 88 lbs. (39.9 kg) 88 lbs. (39.9 kg)
Blade not included with saw.

Engine power ratings are calculated by the individual engine manufacturer and the rating method may vary among engine manufacturers. MK Diamond Products makes no claim, representation or warranty as to the power rating of the engine on this equipment and disclaims any responsibility or liability of any kind whatsoever with respect to the accuracy or the engine power rating. Users are advised to consult the engine manufacturer's owners manual and website for specific information regarding the engine power rating.
Included Accessories
Skid Plate
Skid Plate
Recommended Blades
