CX-3® Series Walk-Behind Concrete Saw
CX-3® Features:
- Compact, lightweight, engineered for maneuverability and reliability
- Can be used for wet or dry cutting
- Corrosion resistant cast-aluminum blade guard
- Built-in water distribution system supplies water to both sides of blade
- Blade guard mounts on either left- or right-hand side of saw and cuts within 1" of wall or curb
- Sturdy single piece steel motor mount weldment to minimize vibration
- 1" diameter blade shaft with self aligning bearings
- Hinged blade guard provides easy access for blade changes and inspection
- Folding handle bar for compact transport
- Poly V-belt for positive power transmission
| Model |

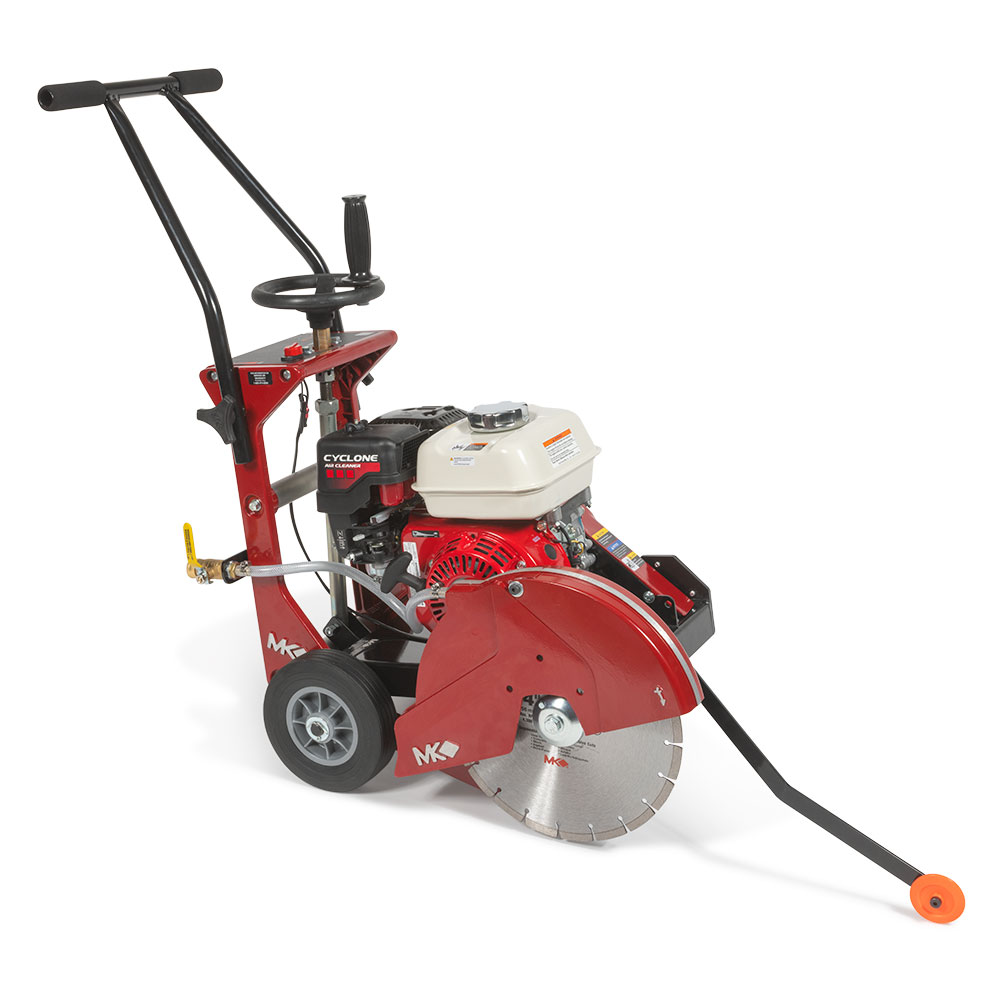

CX-3® Honda |
CX-3® Kohler |
| Engine |
Honda |
Kohler |
| Power |
GX160 Cyclone |
CH270 |
| Blade Capacity |
14" (356mm) |
14" (356mm) |
| Blade RPM |
3,600 |
3,600 |
| Arbor Size |
1" (25mm) |
1" (25mm) |
| Depth of Cut |
5-1/2" (140mm) |
5-1/2" (140mm) |
| LxWxH (inches) |
32" x 19" x 42" |
32" x 19" x 42" |
| LxWxH (mm) |
813 x 483 x 1,067 |
813 x 483 x 1,067 |
| Weight |
116 lbs. (53kg) |
116 lbs. (53kg) |
| Part # |
159345 |
167955 |
| Model |
CX-3® Subaru |
CX-3® Vanguard |
| Engine |
Subaru |
Vanguard |
| Power |
EX17 |
13H3 |
| Blade Capacity |
14" (356mm) |
14" (356mm) |
| Blade RPM |
3,600 |
3,600 |
| Arbor Size |
1" (25mm) |
1" (25mm) |
| Depth of Cut |
5-1/2" (140mm) |
5-1/2" (140mm) |
| LxWxH (inches) |
32" x 19" x 42" |
32" x 19" x 42" |
| LxWxH (mm) |
813 x 483 x 1,067 |
813 x 483 x 1,067 |
| Weight |
118 lbs. (54kg) |
117 lbs. (53kg) |
| Part # |
159346 |
169685 |
| Recommended Blades |
| Asphalt |
AX-10 |
| Green Concrete |
GX-10 |
| Cured Concrete (Wet Cutting) |
CX-10 |
| Cured Concrete (Dry Cutting |
DX-10 |
|
|
|
|
| Cast-aluminum hinged blade guard |
|
|
 |
|
|
 |

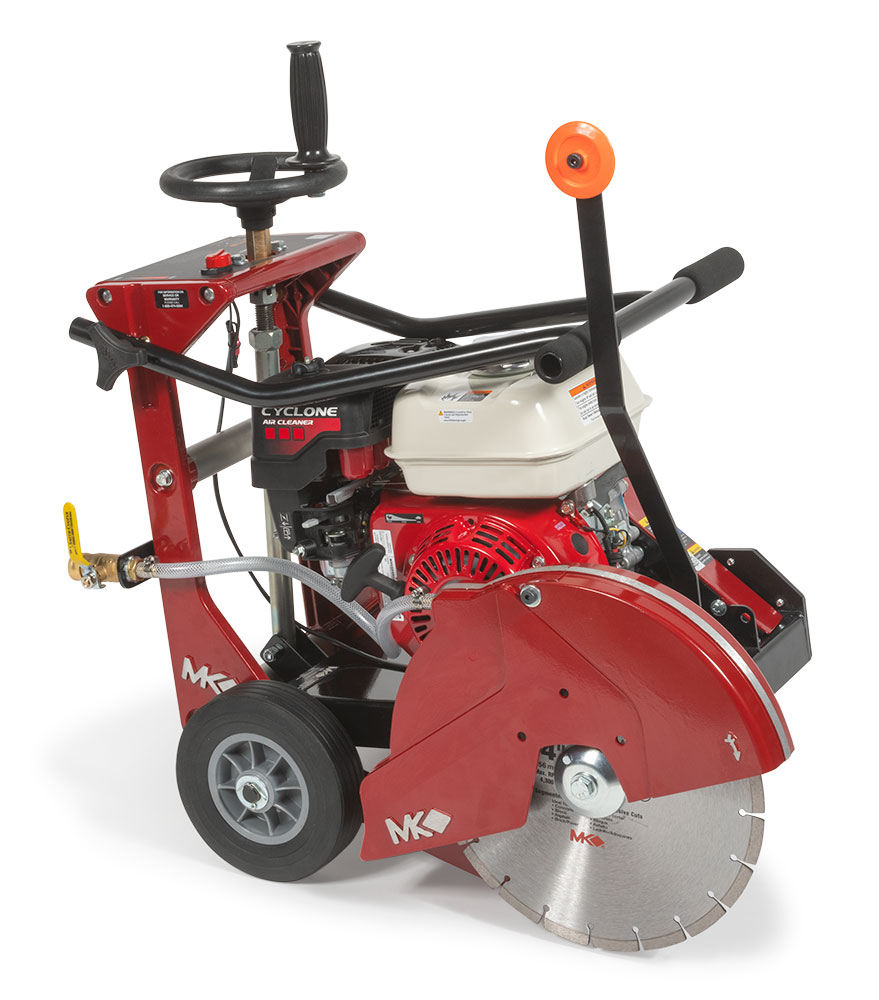

| Folding handle for easy transport. |
|
|
 |
| Blade guard mounts on either left- or right-hand side of saw. |
|
Engine power ratings are calculated by the individual engine manufacturer and the rating method may vary among engine manufacturers. MK Diamond Products makes no claim, representation or warranty as to the power rating of the engine on this equipment and disclaims any responsibility or liability of any kind whatsoever with respect to the accuracy or the engine power rating. Users are advised to consult the engine manufacturer’s owners manual and website for specific information regarding the engine power rating.
