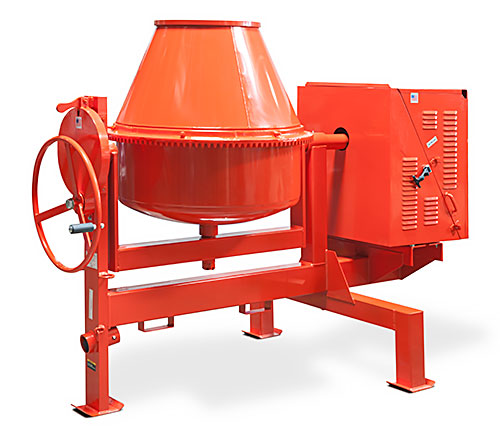

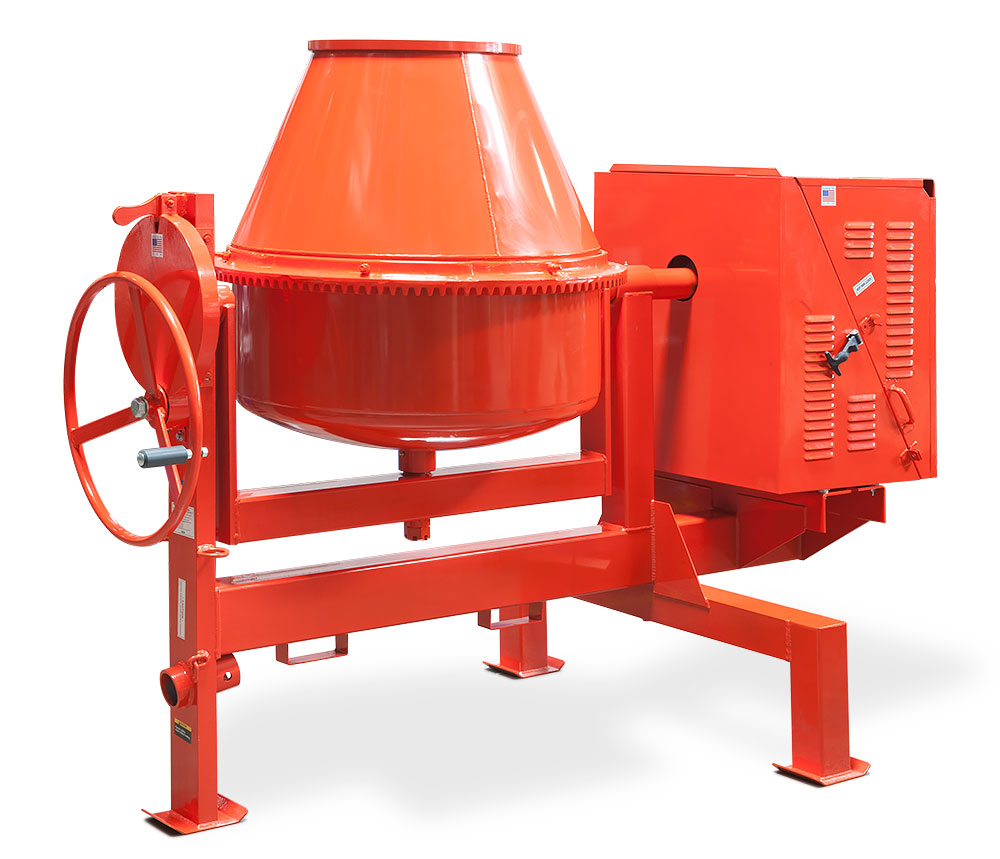

Canoga 300GH Stationary Concrete Mixer
The Canoga 300GH Stationary is a stationary concrete mixer with a welded structural tubing and channel frame and cast steel pinion gear. Features include a geared dump system for better control and gravity latch for secure drum position. Heavy-duty 10-gauge drum fabricated with 1/4" steel bottom and 3/8" thick reinforcing ring. The 300Gh Stationary is powered by a GX240 Honda engine with dual V belts. Drum measures 34" in diameter with 19" opening.
- Drum fabricated from 10 gauge steel with 1/4” bottom and 3/8” reinforcing ring
- Three paddles with three blades each plus three open type bowl gussets for superior mixing and easy cleaning
- Forty-nine possible drum positions with machine cut gears for easy turning and gravity latch for secure drum locations
- Engine housing is MIG welded using 12 & 14 gauge sheet metal with heavy duty piano hinge for durability
- Engine mounted on heavy duty angle iron to reduce vibration and fatigue
- Chassis and yoke designed from structural tubing and channel for greater strength
| Part # | 163823-S |
| Motor | Honda GX240 |
| Batch Capacity | 1-1/2 to 2 Bags (9 Cubic Ft.) |
| Total Volume | 15 Cubic Ft. |
| Drum Diameter | 34" |
| Drum Depth | 38" |
| Drum Opening | 19" |
| Drive | Dual V-belts & gear |
| LxWxH | 120" x 62" x 70" |
| Shipping Weight | 1,060 lbs. |
