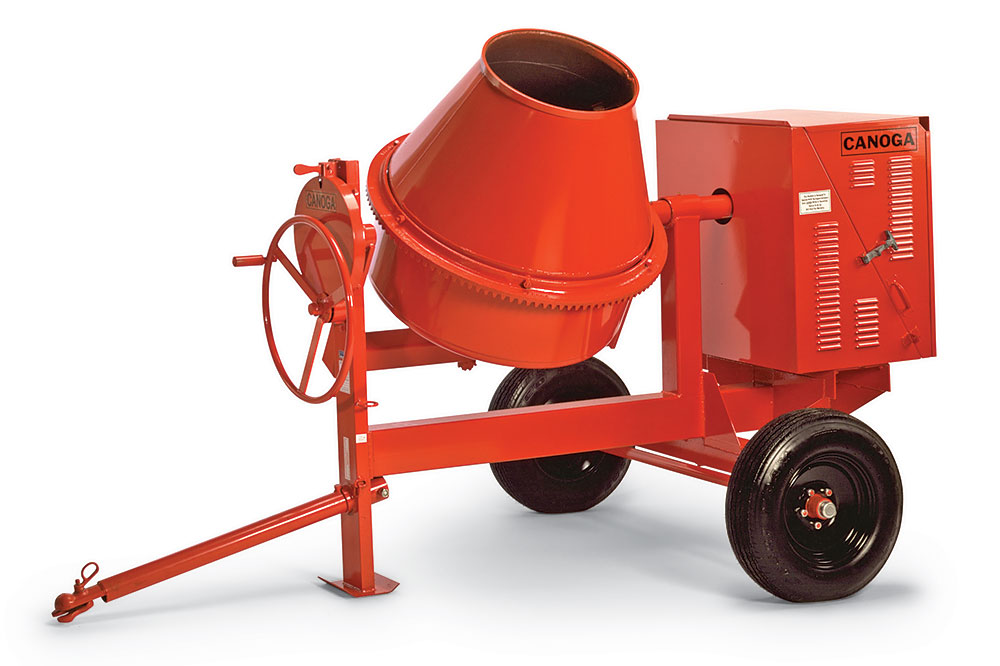

Canoga 300GH Concrete Mixer
The Canoga 300GH is a towable gas concrete mixer with a welded structural tubing and channel frame, cast steel pinion gear and torsion bar suspension. Features include a geared dump system for better control and gravity latch for secure drum position. Heavy-duty 10-gauge drum fabricated with 1/4" steel bottom and 3/8" thick reinforcing ring. Powered by GX240 Honda engine with dual V belts. Drum measures 34" in diameter with 19" opening. Tow-tongue includes cast iron 2" ball hitch and heavy-duty safety chain.
- Drum fabricated from 10 gauge steel with 1/4” bottom and 3/8” reinforcing ring
- Three paddles with three blades each plus three open type bowl gussets for superior mixing and easy cleaning
- Forty-nine possible drum positions with machine cut gears for easy turning and gravity latch for secure drum locations
- Engine house MIG welded using 12 & 14 gauge sheet metal with heavy duty piano hinge for durability
- Motor mounted on heavy duty angle iron to reduce vibration and fatigue
- Torsion Bar Suspension for smoother ride
- Chassis and yoke designed from structural tubing and channel for greater strength
- Removable 2-1/2” diameter towing tongue with heavy duty safety chain
| Part # | 163823 |
| Motor | Honda GX240 |
| Batch Capacity | 1-1/2 to 2 Bags (9 Cubic Ft.) |
| Total Volume | 15 Cubic Ft. |
| Drum Diameter | 34" |
| Drum Depth | 38" |
| Drum Opening | 19" |
| Drive | Dual V-belts & gear |
| Axle | Torsion-Bar |
| Wheels | 5.0 x 13" |
| Tires | ST175/80D 13C 6 ply Bias/Load Range C |
| LxWxH | 120" x 62" x 70" |
| Shipping Weight | 1,060 lbs. |
